Delabie GROUP termostadi ventiil 1" PREMIX COMFORT 90L 32°C to 42°C
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21päeva
Proovi kupongikoodi PEGU-KEVAD ! Vali toode täishinnaga, lisa see ostukorvi ja sisesta kupongikood ostu sooritamisel! Kupongikoodi kasutamise aeg on piiratud!
Lugupeetud PEGU.EE veebipoes külastajad!
Tere tulemast meie internetipoes! Me ei ole lihtsalt iseteeninduse kassa. Kui teil on vaja nõu või abi toote valimisel, võtke meiega julgesti ühendust kas e-mailiga või messendzeriga, telefoni teel. Oleme alati valmis pakkuma teile personaalset teenindust! Täname külastuse eest!
PEGU.EE meeskond

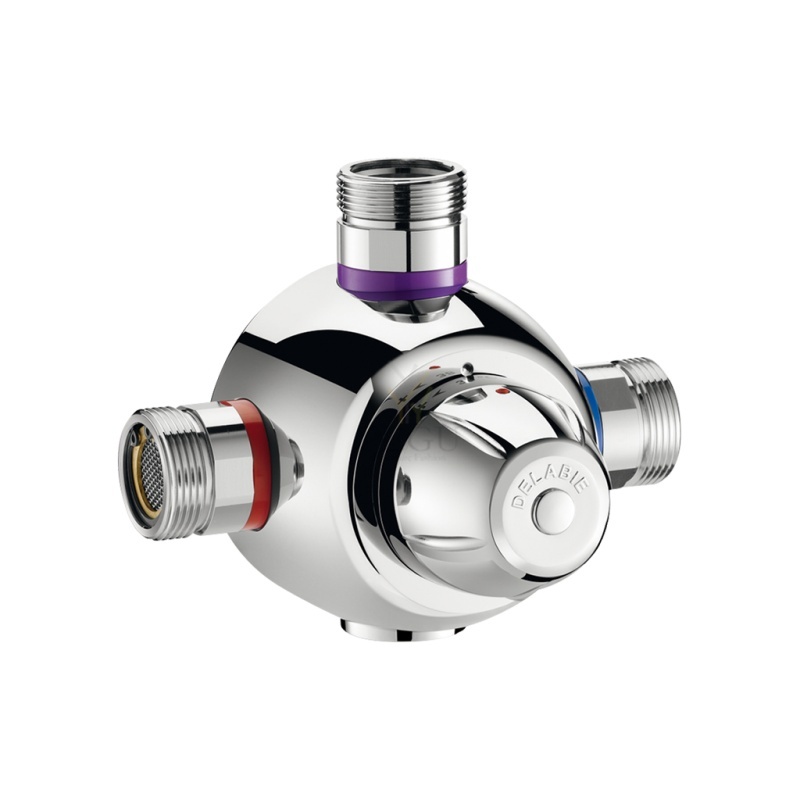

PREMIX COMFORT
Ref. 731003
Group thermostatic mixing valve for mixed water distribution from 32° - 42°C:
Anti-scalding safety.
Regulates temperature variations.

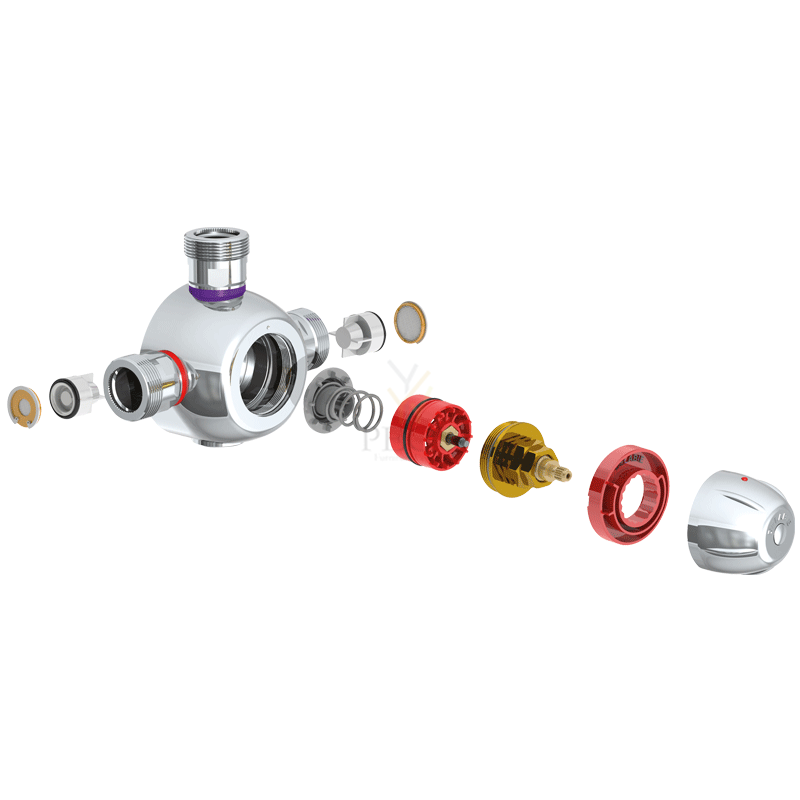

Filters and non-return valves can be accessed from the outside without removing the mechanism.
Thermal shock with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with automotive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C minimum.
Pressure difference at the inlets: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 - 10 bar (1 - 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
90 lpm - M1".
