Kirurgi valamu Delabie 1830002.jpg Zoom

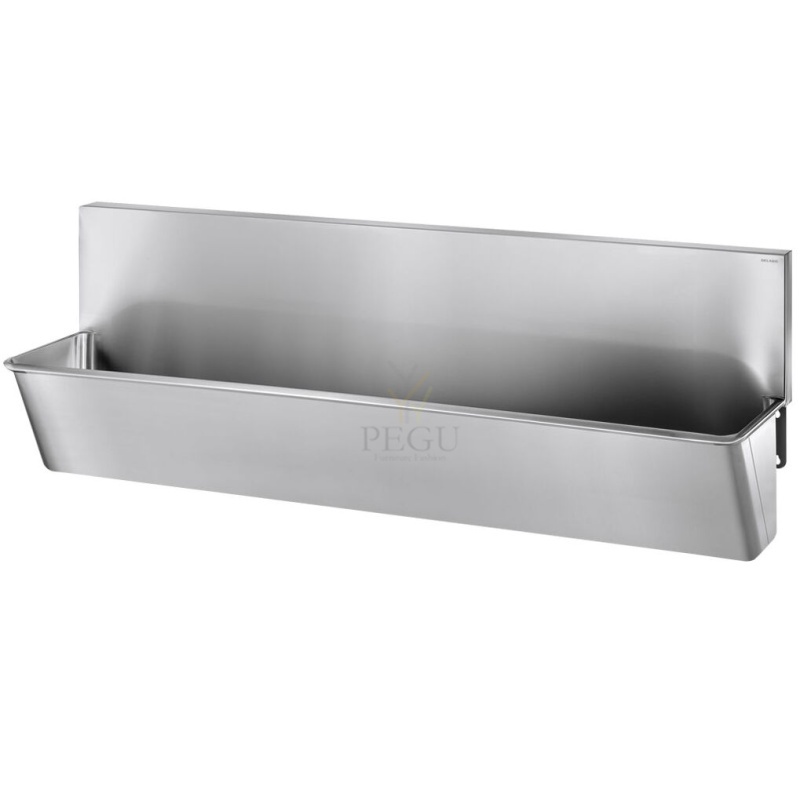

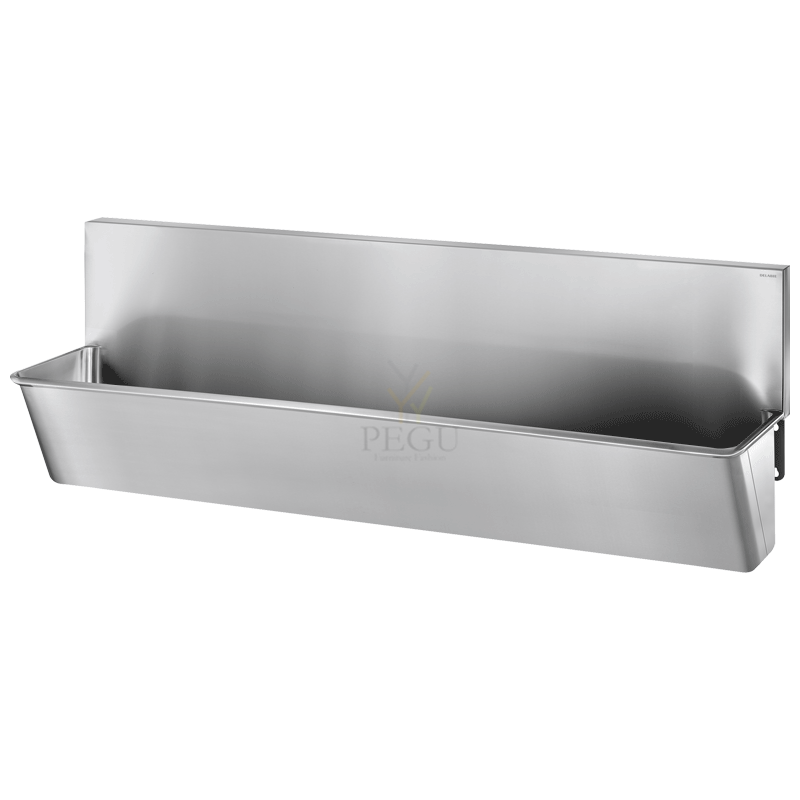

Delabie kolmekohaline kirurgi valamu kõrgema tagaseinaga. RST AISI 304 L 2100mm

Tootekood: DE-183000
Kaubamärk:
Ühik: tk
Tarneaeg: 3-4 nädala
Hind:
3220,00 €
Kuumakse alates: 273,70 €
Kogus: - +
   - või -

Delabie kolmekohaline kirurgi valamu kõrgema tagaseinaga.  RST AISI 304 L 2100mm

Surgical scrub up trough with high splashback

Ref. 183000
Wall-mounted surgical scrub up trough with splashback 360mm.
Suitable for hospitals and healthcare facilities.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm.
L. 2,100mm, 3 services. With no tap hole.
Smooth surface and rounded inside edges for easy cleaning.
Drainage on the right. Without overflow. Supplied with fixing elements.
CE marked. Complies with norm EN 14296.
Weight: 34.9kg.

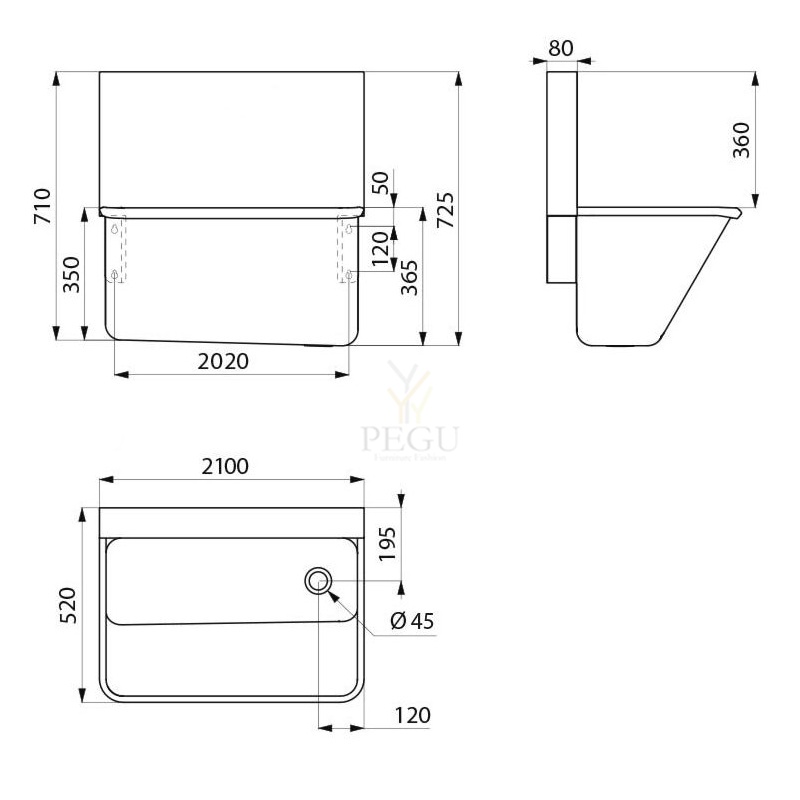

TECHNICAL CHARACTERISTICS

Surgical scrub up trough with high splashback

Ref. 183000
Height 725mm
Length 2100mm
Width 520mm
Thickness 1.2mm
Finish 304 polished satin stainless steel
Sarnased tooted
R/V teras veetrapp, D75 mm vertikaalne, 150x150mm
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad
423,00 €

DESCRIPTION

HEMI inset round washbasin Ø 385mm - Ref. 120491

Round washbasin for recessed installation from above or below.
Basin internal diameter: 385mm.
Cut-out diameter: 400mm for installation from above, 380mm for installation from below.
Bacteriostatic 304 stainless steel.
Bright polished finish.
Stainless steel thickness: 0.8mm.
One-piece, seam-free pressed bowl.
Rounded edges prevent injury.
Supplied with 1 1⁄4" waste.
Without overflow.
CE marked. Complies with European standard EN 14688.
Weight: 1.6kg.

Tootekood: DE-120491 ,   Tarneaeg: 14-21 päeva
336,00 €

BAILA floor-standing washbasin
Ref. 121170

Floor-standing washbasin, height 830mm. Basin internal diameter: 310mm.
Design-led styling.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 0.8mm.
Rounded edges prevent injury.
Supplied with 1¼" waste. Without overflow.
With central tap hole Ø 35mm.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 12kg

Tootekood: DE-121170 ,   Tarneaeg: 14-21 päeva
988,00 €

Wall-mounted SXS electronic hand washbasin
Ref. 184310

Wall-mounted hand washbasin with electronic control.
Bacteriostatic 304 stainless steel.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Without splashback.
Supplied with battery-operated electronic mixer with integrated battery and solenoid valve, and chrome-plated brass soap-dispenser.
1¼" waste included. Without overflow.
Water savings: flow rate pre-set at 3 lpm.
Maximum hygiene: no manual contact with tap, reduced stagnation solenoid valve, duty flush prevents bacterial development.
Supplied with fixings.
CE marked. Complies with European standard EN 14688.
Weight: 4.1kg.

Tootekood: DE-184310 ,   Tarneaeg: 14-21 päeva
1159,00 €

Combi KOMPACT HW/CW - washbasin and floor-standing WC pan
Ref. 161600

Combination unit: washbasin and floor-standing right hand WC pan with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sides and 1 on the top, with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7-second time flow, M½".
Available with 2 buttons cold water/mixed water.
WC equipped with time flow flush valve, 7-second time flow, M¾".
Water inlet: washbasin M½", WC M¾".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin trap.
Easy to install: only one water outlet for both washbasin and WC, water inlet and outlet already connected.
Weight: 36kg.



TECHNICAL FEATURES

Combi KOMPACT HW/CW - washbasin and floor-standing WC pan
Ref. 161600

Height 1000mm
Length 735mm
Width 725mm
Thickness 2mm
Finish Polished satin 304 stainless steel
Tootekood: DE-161600 ,   Tarneaeg: 4-6 nädalad
4332,00 €

Projektide hinnapäringud ja tooteinfo kättesaadavusega seotud küsimused palume saata e-mailile info@pegu.ee
