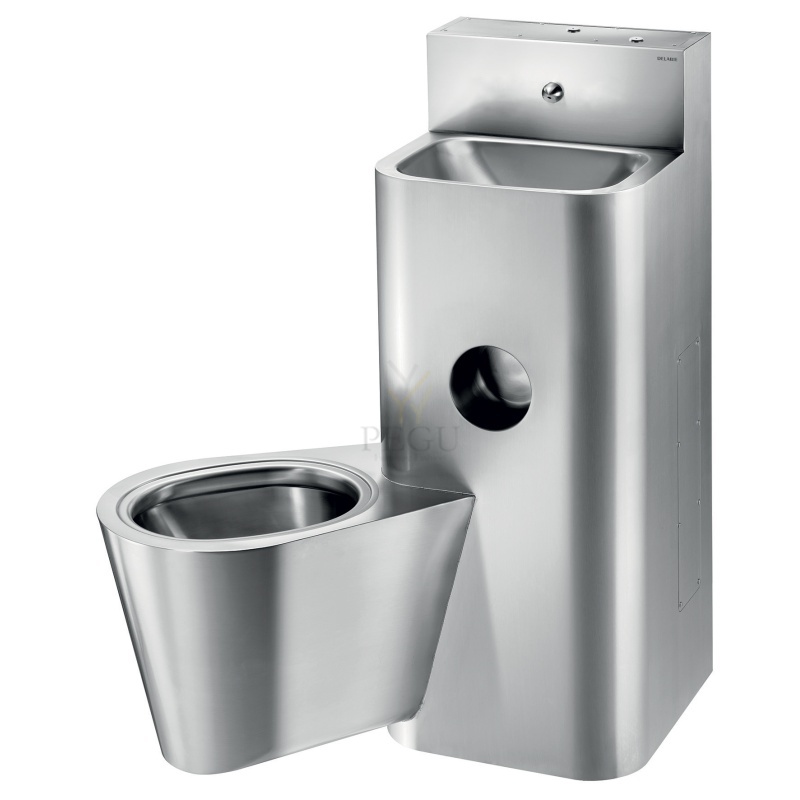

Delabie KOMPACT Combi WC+valamu paremal põranda antivandaalne R/V teras AISI304

Tootekood: DE-160400
Kaubamärk:
Ühik: tk
Tarneaeg: 4-6 nädalad
Hind:
4172,00 €
Kuumakse alates: 354,62 €
Kogus: - +
   - või -

KOMPACT washbasin and wall-hung WC combination
Ref. 160400

Combination unit: washbasin and suspended WC pan on left side with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
[Formerly ref: 0610030004]

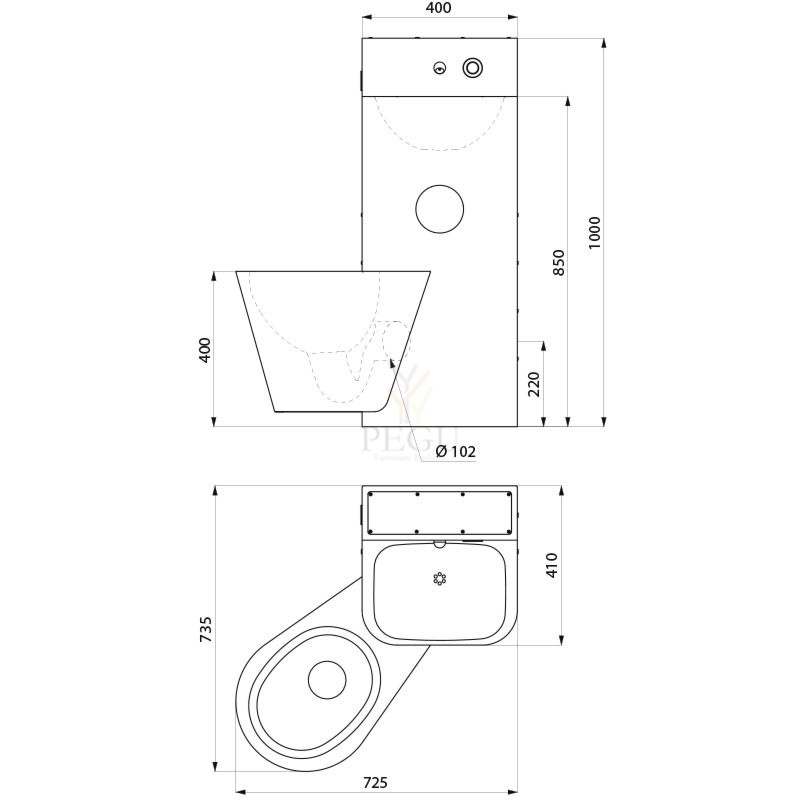

TECHNICAL FEATURES

KOMPACT washbasin and wall-hung WC combination
Ref. 160400

Height 1000mm
Length 735mm
Width 725mm
Thickness 2mm
Finish 304 polished satin stainless steel
