Delabie KOMPACT loputuskastiga WC+valamu sümmetriline põranda antivandaalne R/V teras AISI304

Tootekood: DE-162800
Kaubamärk:
Ühik: tk
Tarneaeg: 4-6 nädalad
Hind:
3432,00 €
Kogus: - +
   - või -

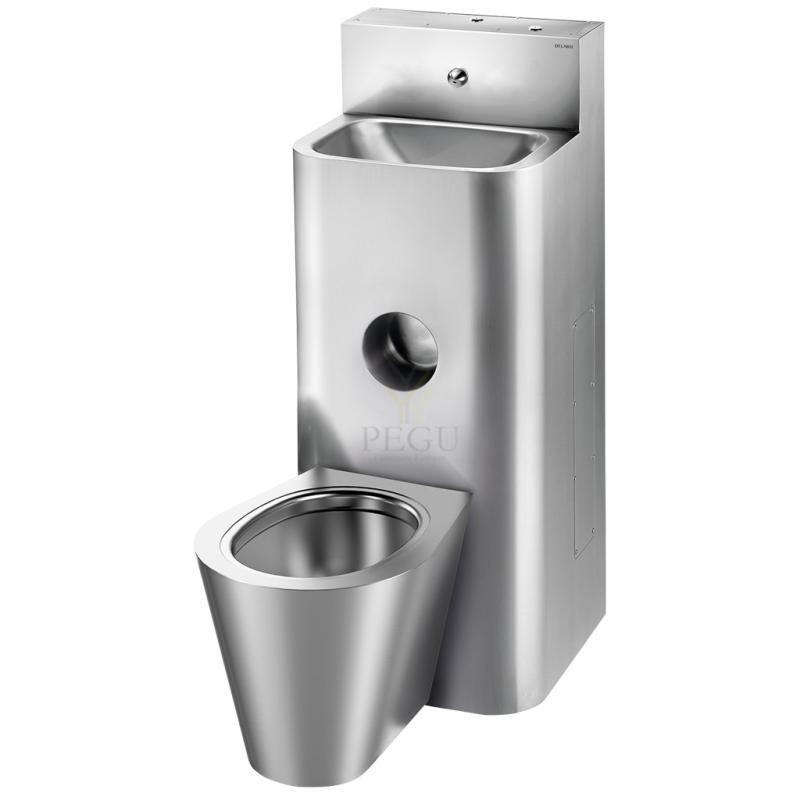

KOMPACT washbasin and floor-standing WC combination
Ref. 162800

Washbasin combination unit with cistern, floor-standing WC pan in centre with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sides and 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel body thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface is easy to clean.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 second time flow, M1/2".
WC fitted with 6-litre cistern.
Water inlets: washbasin M1/2", WC M3/8".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.



TECHNICAL FEATURES

KOMPACT washbasin and floor-standing WC combination
Ref. 162800

Height 1000mm
Length 850mm
Width 400mm
Thickness 2mm
Finish Polished satin 304 stainless steel

Failid

Sarnased tooted
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad
214,20 € (10%)
238,00 €

HEMI inset round washbasin Ø 310mm - Ref. 120470

Round basin for recessed installation from above or below.

Basin internal diameter: 310mm.

Cut-out diameter: 330mm for installation from above, 310mm for installation from below.

Bacteriostatic 304 stainless steel.

Polished satin finish.

Stainless steel thickness: 1mm. One-piece, seam-free pressed bowl.

Rounded edges prevent injury. Supplied with 1¼" waste. Without overflow.

CE marked.

Complies with European standard EN 14688. Weight: 1.5kg.

[Formerly ref: 0213470201]

Tootekood: DE-120470 ,   Tarneaeg: 14-21 päeva
116,10 € (10%)
129,00 €

General

Size (mm): 525 x 334 x 97
Large bowl (mm): 500 x 310 x 83
Designer: Halvor Thorsen





Description

Icon Hand Wash Basin IC1-32 in stainless steel 18/10, is designed for under mounting.The hand wash basin is pressed in one piece and has laser-cut integrated outlet holes that are concealed by a removable outlet cover.The basin is supplied with waste under part and overflow equipment.

Brushed finish.

Tootekood: I-IC1 H ,   Tarneaeg: 14-21 päeva
187,00 €

Dushikomplekt anivandaalne 512S, 1-200mm



Tootekood: P31186 ,   Tarneaeg: 14-21 päeva
317,00 €

DESCRIPTION

Countertop ALGUI washbasin
Ref. 120110

Countertop washbasin, Ø 375mm.
Suitable for use with wall-mounted or extended mixer/tap.
Basin internal diameter: 310mm.
Bacteriostatic 304 stainless steel.
Stainless steel thickness: 1.2mm.
Polished satin finish.
One-piece, seam-free pressed bowl.
Rounded edges prevent injury.
Supplied with 1¼" waste.
Without overflow.
CE marked. Complies with European standard EN 14688.
Weight: 3.8kg.

Tootekood: DE-120110 ,   Tarneaeg: 14-21 päeva
635,00 €
