Delabie KOMPACT WC+valamu sümmetriline põranda antivandaalne R/V teras AISI304

Tootekood: DE-160500
Kaubamärk:
Ühik: tk
Tarneaeg: 4-6 nädalad
Hind: 4172,00 €
3754,80 €
Kuumakse alates: 319,16 €
Kogus: - +
   - või -

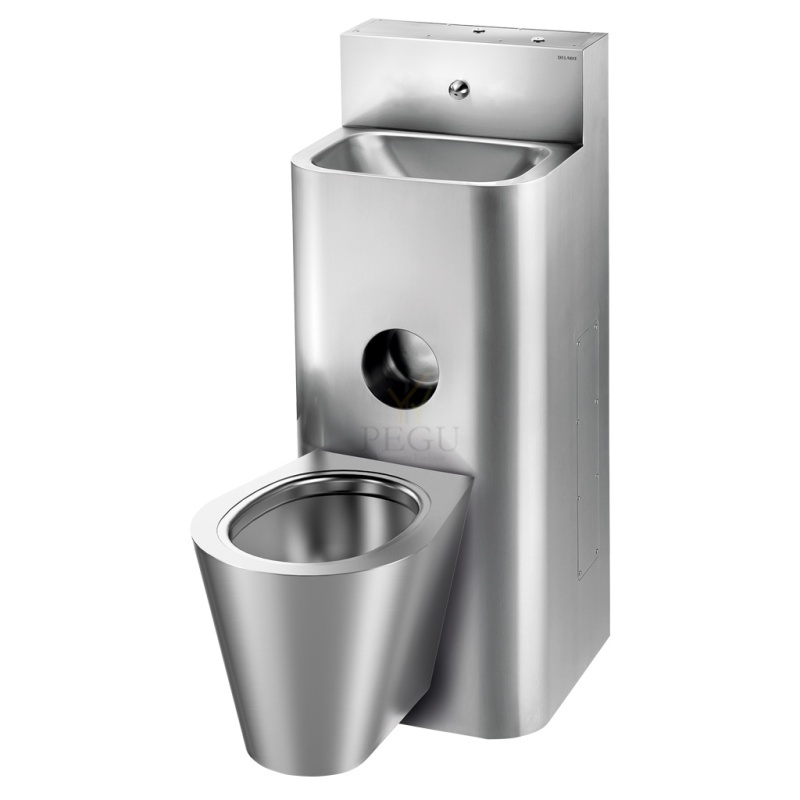

KOMPACT washbasin and wall-hung WC combination
Ref. 160500

Combination unit: washbasin and WC pan suspended centrallywith recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm
Supplied with washbasin siphon.
Easy installation: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg
[Formerly ref: 0610030005]

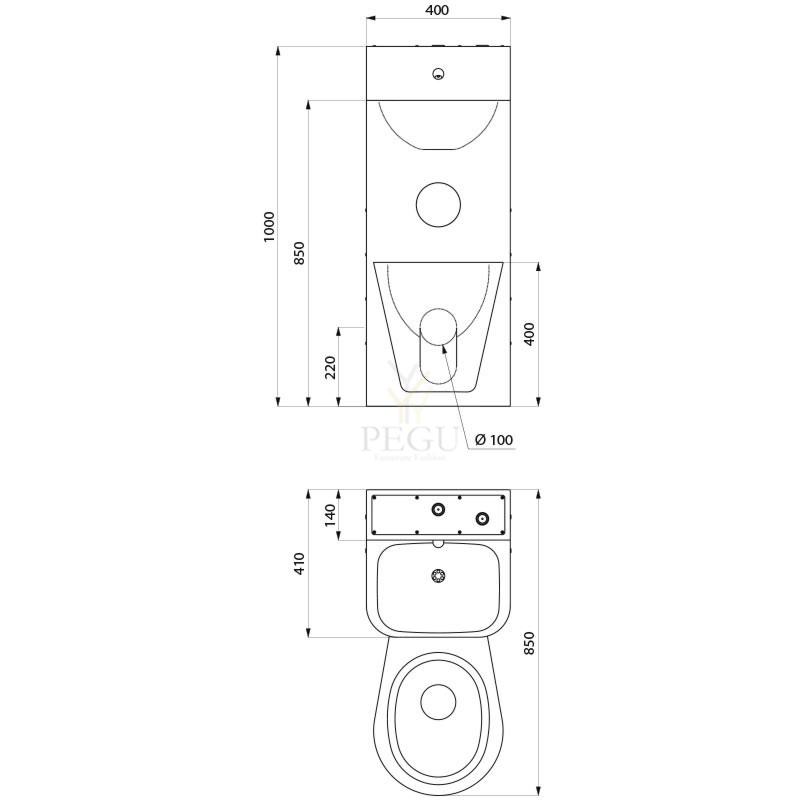

TECHNICAL FEATURES

KOMPACT washbasin and wall-hung WC combination
Ref. 160500

Height 1000mm
Length 735mm
Width 725mm
Thickness 2mm
Finish 304 polished satin stainless steel

Failid

Sarnased tooted
Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 ,   Tarneaeg: 3-4 nädalad
375,00 €

Semi-recessed QUADRA washbasin
Ref. 120650

Semi-recessed washbasin, 380x380mm.
Suitable for use with wall-mounted or extended mixer/tap.
Basin internal diameter: 310mm.
Cutout diameter: 310mm.
Stainless steel thickness: 1.2mm.
Polished satin finish.
Stainless steel thickness: 1.2mm.
One-piece, seam-free pressed bowl.
Rounded edges prevent injury.
Supplied with 1¼" waste.
Without overflow.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.



TECHNICAL FEATURES

Semi-recessed QUADRA washbasin
Ref. 120650

Height 130mm
Length 380mm
Width 380mm
Thickness 1.2mm
Finish Polished satin 304 stainless steel
Tootekood: DE-120650 ,   Tarneaeg: 14-21 päeva
549,00 € (10%)
610,00 €

BAILA floor-standing washbasin
Ref. 120170

Floor-standing washbasin, height 830mm. Basin internal diameter: 310mm.
Design-led styling.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 0.8mm.
Rounded edges prevent injury.
No tap hole.
Supplied with 1 ¼" waste. Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 12kg.

Tootekood: DE-120170 ,   Tarneaeg: 14-21 päeva
889,20 € (10%)
988,00 €

Floor-standing SXL hand washbasin
Ref. 180300

Floor-standing, foot-operated hand washbasin.
Can be wall-mounted and/or floor-standing.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm.
Supplied with swan neck spout and time flow tap with 7 second time flow.
Easy to maintain: access panel at the front.
Supplied with 1¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 10kg.

Tootekood: DE-180300 ,   Tarneaeg: 14-21 päeva
1104,30 € (10%)
1227,00 €
  • Mirror in robust, germ-reducing and easy-care stainless steel mirror sheet metal (AISI 304).
  • Mounting: With four Torx® locking screws.
  • Delivery includes fixing material.
  • Other dimensions available upon request.
  • Weight (in kg): 2,0
Tootekood: WAG-WP602 ,   Tarneaeg: 14-21 päeva
150,67 € (5%)
158,60 €
