Tootegrupid
jpg_493406_1.jpg Zoom

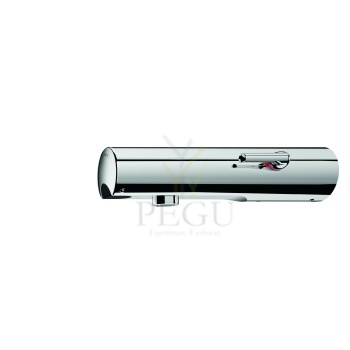

Delabie kontaktivaba elektronik segisti seinale L160mm TEMPOMATIC MIX 4 6V

Tootekood: DE-493406
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
732,00 €
Kuumakse alates: 62,51 €
Kogus: - +
   - või -

TEMPOMATIC MIX 4 electronic mixer
Ref. 493406

Wall-mounted electronic basin mixer:
Battery-operated with integrated 123 6V Lithium batteries.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated metal body L. 160mm.
Cap fixed in place by 2 concealed screws.
Stopcocks.
Wall-mounted.
Recessed inlets 1/2".
Anti-blocking security.
Side temperature control with adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
10-year warranty.

Provisional availability 2nd half 2020, please contact the sales office to check availability.



TECHNICAL FEATURES

TEMPOMATIC MIX 4 electronic mixer
Ref. 493406

Supply 6V batteries
Connector 1/2"
Technology Electronic
Spout length 160mm
Flow rate 3 lpm

Video



Failid

Sarnased tooted

Tradition

Käsidušš

Tootekood Viimistlus Seeria

7656700 EAN Nr.: 5708516710561 Kroom
Tradition

Standardomadused:

Veesäästu funktsioon Eco-Save 1 pihustusviis

Tootekood: D7656700 ,   Tarneaeg: 7-14 päeva
72,16 € (12%)
82,00 €

Segisti, isesulguv

kroom

30sek töötsükkel



Tootekood: IDR-08132-30 ,   Tarneaeg: 7-21 päeva
292,80 €

Peitsegisti 30 sek töötsükkel

Antiblock süsteemiga

Tootekood: P35192 ,   Tarneaeg: 7-14 päeva
744,20 €

PRODUCT DESCRIPTION

• Winner of a Red Dot Design Award!

• Holds approx. 9,5 dl liquid soap (= 800-950 doses).

• Battery-operated. Connection to power supply via a transformer.

• An intelligent sensor automatically sets the best sensor range.

• LED light indicates when dispenser is in use.

• Available in all RAL colours.

• Comes in trendy matt black and classic white as standard.

• Also available coated with different prints.

• Top plate in 6 optional standard designs

• 2-year warranty.



SPECIFICATIONS
Product number: 3052 / EAN no. 5-709818-030524
Technical data:
Touch-free soap dispenser for liquid soap/disinfectant. Steel housing painted in optional RAL colour. Equipped with top plate. Capacity: 9,5 dl. Battery-operated.
Dimensions H: 330 mm, W: 139 mm, D: 127 mm
Net Weight: 2.3 kg
Tootekood: DAN3052 00 ,   Tarneaeg: 14-21 päeva
524,60 €
Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 ,   Tarneaeg: 3-4 nädalad
375,00 €
Projektide hinnapäringud ja tooteinfo kättesaadavusega seotud küsimused palume saata e-mailile info@pegu.ee
