Veekraan Delabie 440006_1.jpg Zoom

Delabie kontaktivaba elektrooniline kraan eelsegatud veele TEMPOMATIC 4 3/8" 6V

Tootekood: DE-440006
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
482,00 €
Kuumakse alates: 41,06 €
Kogus: - +
   - või -

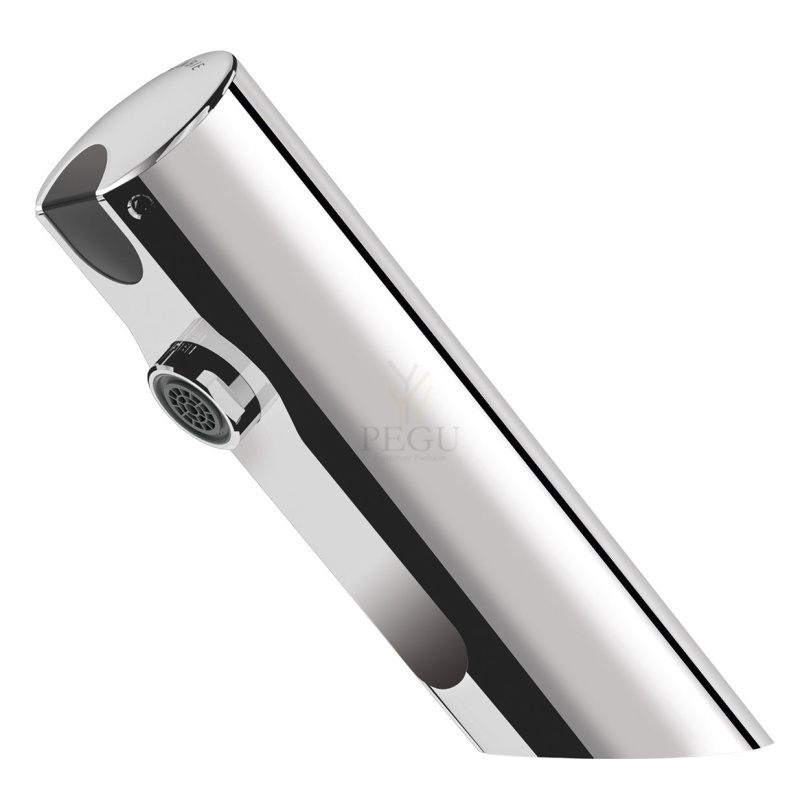

Delabie kontaktivaba elektrooniline kraan eelsegatud veele TEMPOMATIC 4 3/8" 6V

TEMPOMATIC 4 electronic tap

Ref. 440006

Deck-mounted electronic basin tap:
Battery-operated with integrated 123 6V Lithium batteries.

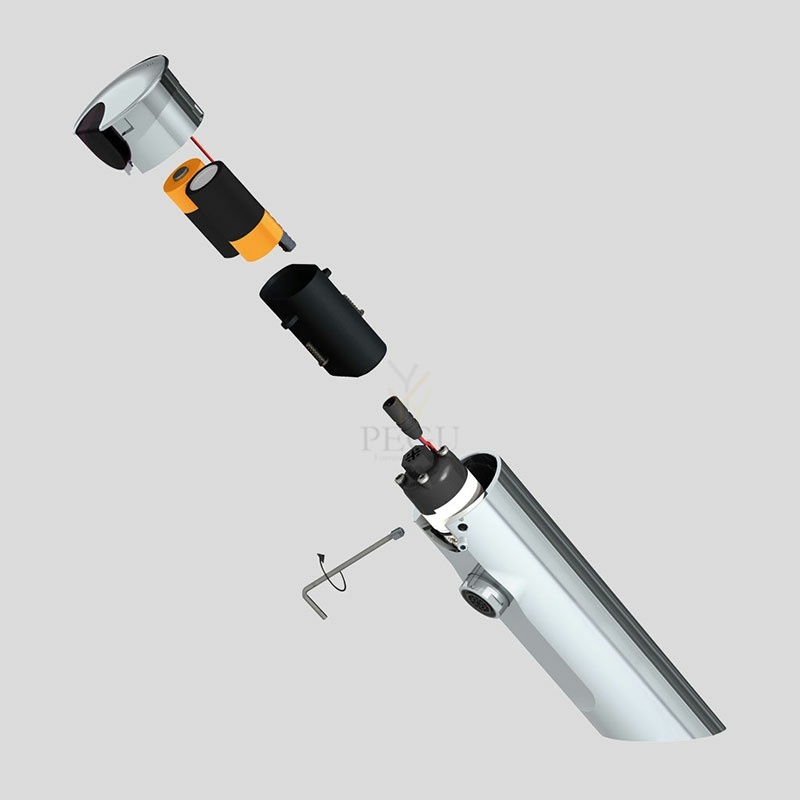

Reduced-stagnation solenoid valve and electronic unit integrated into the body of the tap.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated metal body.
Cap fixed in place by 2 concealed screws.
PEX flexible with stopcock F3/8" and filter.
Fixing reinforced by two stainless steel rods.
Anti-blocking security.
Suitable for people with reduced mobility.


TECHNICAL CHARACTERISTICS

TEMPOMATIC 4 electronic tap

Ref. 440006
Supply 6V batteries
Connector F3/8"
Technology Electronic

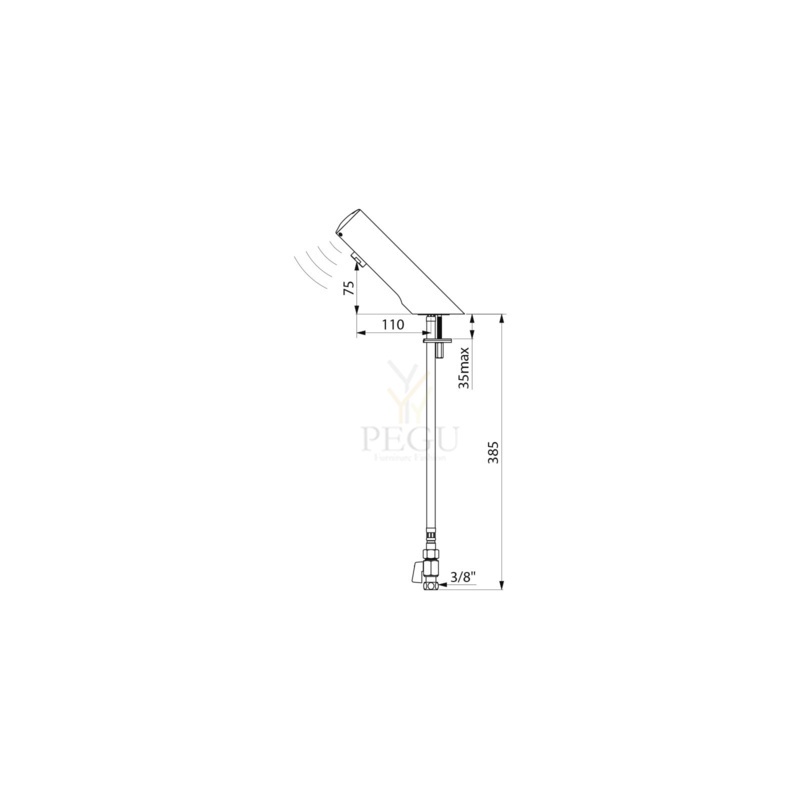

Drop height 75mm
Spout length 110mm
Flow rate 3 lpm

Video



Sarnased tooted

Damixa Fern valamusegisti põhjaklapiga LM

Tootekood: D6882100 ,   Tarneaeg: 7 päeva
108,75 € (25%)
145,00 €



1162

Veesääst 60% (konstant)isoflow.

Aeraator segisti jooksutorule M22x1 (sisekeere). Roostevabast terasest sõel. Toodetud Saksamaal. Pakendis 1 tk.

Tootekood: RSTJ-1162 ,   Tarneaeg: 7 päeva
7,63 €
Pinnapealne desinfikanti, seebi ja losjoonide jaoks Euro dosaator 500ml, kontaktivaba RX5T (1.5 ml Dosage)


RX 5 T puutevaba lauadosaator vedelseepide ja desinfitseerimisvahendite jaoks, puutevaba sensortehnoloogiaga, 500 ml, plastikust, vabalt seisev, valikuline: seinakinnitus ja kolonn, valmis ühekordseks hügieenipakendiks, doseerib umbes 1,5 ml/vahetus, reguleeritav doseerimine (1-3 vahetust), töötab 4 LR 14 patareiga


RX 5 T Desktop touchless dispenser for liquid Soaps and desinfectants with touchless sensor technology, 500 ml, plastic, free-standing, optional: wallmount and column, ready for disposable hygiene packaging, dosage of approx. 1,5 ml/stroke, changing stroke (1-3 strokes), operated with 4 LR 14 batteries



Material
Plastic
Features
Touchless
Filling Volume (ml)
500 ml
Pump
Disinfection
Dimensions
102x269x142 (WxHxD in mm)
Brand: RX
Quantity / Pallet EU: 154
Product Type: Hygiene dispenser
Dispenser type: Euro bottle dispenser
Operating type: Touchless
Housing: Plastic, white
Filling volume (ml): 500 ml
Material: ABS plastic
Dosing pump: long-life plastic pump with straight suction tube
Dosage quantity: 1.5 ml/stroke
Filling good: Disinfectant, Liquid soaps
Smart function: None
Power type: Battery
with drip tray: No
Batteries: 4x LR14 batteries
Cleaning: manual wipe disinfection, not dishwashersafe, not autoclavable
Tootekood: RX5T-1.5ML ,   Tarneaeg: 3-4 nädala
95,00 €

PRODUCT DESCRIPTION

• Winner of a Red Dot Design Award!

• Holds approx. 9,5 dl liquid soap (= 800-950 doses).

• Battery-operated. Connection to power supply via a transformer.

• An intelligent sensor automatically sets the best sensor range.

• LED light indicates when dispenser is in use.

• Comes in trendy matt black and classic white as standard.

• Also available in all RAL colours and coated with different prints.

• Top plate in 6 optional standard designs

• 2-year warranty.



SPECIFICATIONS
Product number: 3056 / EAN no. 5-709818-030562
Technical data:
Touch-free soap dispenser for liquid soap/disinfectant. Matt black steel housing (RAL 9005, gloss 3). Equipped with top plate. Capacity: 9,5 dl. Battery-operated.
Dimensions H: 330 mm, W: 139 mm, D: 127 mm
Net Weight: 2.3 kg
Tootekood: DAN3056 96 ,   Tarneaeg: 14-21 päeva
490,00 €
Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 ,   Tarneaeg: 3-4 nädalad
375,00 €
Projektide hinnapäringud ja tooteinfo kättesaadavusega seotud küsimused palume saata e-mailile info@pegu.ee
