Delabie köögisegisti Professionaalne köök 5622
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Lisainfo: info@pegu.ee
SUVI261 sisesta sooduskood ostukorvi lehel kupongi lahtrisse!

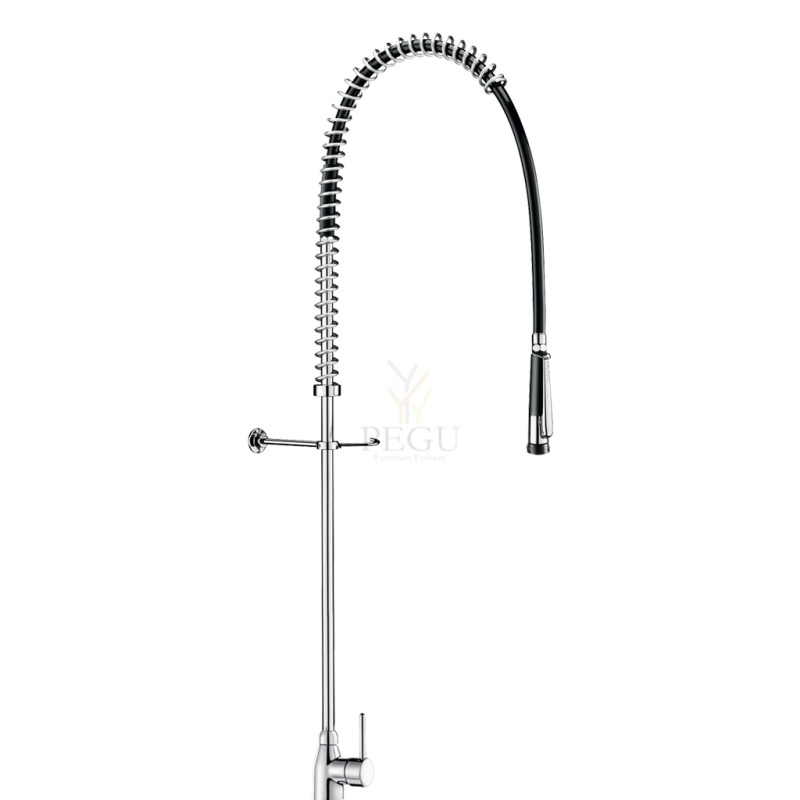

Pre-rinse set with mixer
Ref. 5626
Complete pre-rinse set without bib tap.
Single hole deck-mounted mixer with slimline control lever.
Supplied with F3/8" flexible hoses and non-return valves.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Reinforced, food-grade black flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.

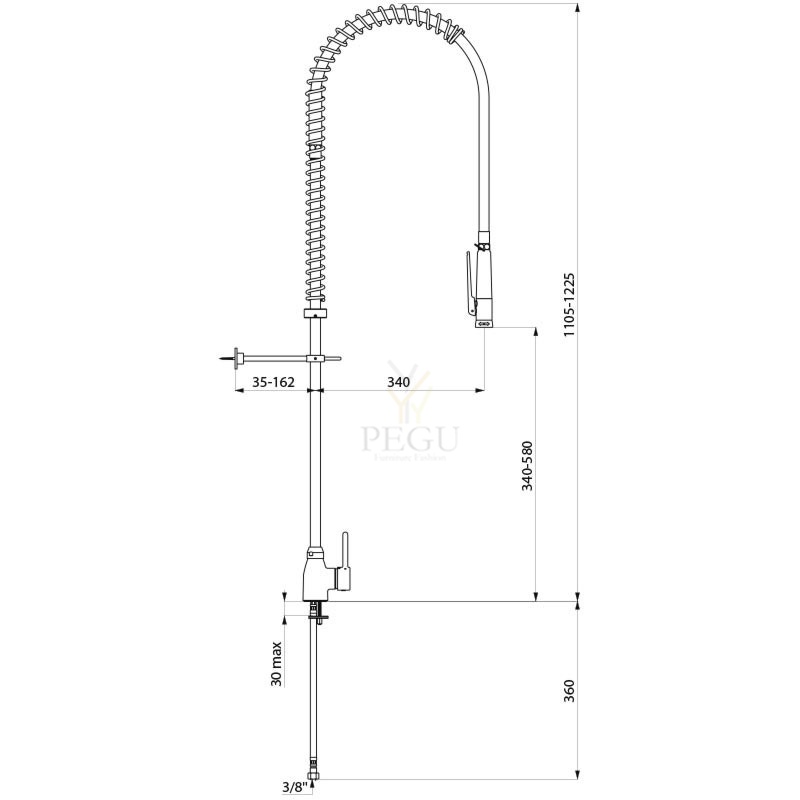

TECHNICAL FEATURES
Pre-rinse set with mixer
Ref. 5626
| Connector | F3/8" |
|---|---|
| Height | 1105-1225mm |
| Drop height | 340 - 580mm |
| Flow rate | 9 lpm |
| Width to the wall | 35-162mm |
| Finish | Chrome-plated brass |
Failid
Twin hole pillar-mounted mixer - 100 lpm
Ref. 5603
Twin hole mixer, M3/4" with 150mm centres on pillar mounts for plunge sinks.
Swivelling, tubular spout Ø 22mm H. 380mm L. 300mm.
Star-shaped, brass flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant ergonomic ball levers.
Flow rate 100 lpm at 3 bar suitable for plunge sinks.
Full flow rate within the first 90°.
Spout with smooth interior.
One-piece body and spout in chrome-plated brass.
Reinforced fixings and recessed inlets.
Deck-mounted single hole mixer - 45 lpm
Ref. 5640T3
Deck-mounted single hole mixer with swivelling, tubular spout Ø 22mm H. 190mm L. 300mm.
Star-shaped flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 45 lpm at 3 bar.
Full flow rate achieved within first 90°.
Spout with smooth interior.
Chrome-plated brass body and spout.
Reinforced fixings via two stainless steel rods.
F3/8" PEX flexibles.
Pre-rinse set with mixer
Ref. G6633
Complete pre-rinse set without bib tap.
Single hole deck mounted mixer with:
- Valve head with control knob.
- F3/8" flexible connectors and non-return valves.
- Reinforced fixing via 2 threaded rods and back-nuts.
White, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
TECHNICAL FEATURES
Pre-rinse set with mixer
Ref. G6633
| Connector | F3/8" |
|---|---|
| Height | 1105 - 1225mm |
| Drop height | 310 - 550mm |
| Flow rate | 9 lpm |
| Width to the wall | 35-162mm |
| Finish | Chrome-plated brass |
Ref: 70828 - Wall-mounted column with 2 holes – rinsing head
> THE PRODUCT BENEFITS
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks Fast filling of tanks: 30L / min at 3 bar
Reinforced body / column interface
Intuitive and ergonomic knobs: easy grip
Product design
Adjustable wall support
Locking hook to avoid MSD (musculoskeletal disorder)
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Easy maintenance: presence of a slot under the red / blue pad allowing the passage of a screwdriver
Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
Two-hole mixer on deck with 1/4 turn ceramic head with flow rate of 30L /min at 3 bar
1/4 turn ceramic head tap with filling spout Lg 300 mm - adjustable
Black hand shower M 1/2 '' with grip surface limiting the risk of burns
Shower flow: 12L / Min (regulated) - User adjustable jet: concentrated or wetting - Anti-tartar spray nozzle - Locking hook for continuous flow - integrated NF check valve
Interchangeable anti-tartar flow straightener
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall) Adjustable shower holder on the left or right
> Recommended working pressure:
1 to 5 bars
> Flow rate:
30L /min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Body, spout and column in chromed brass Injected metal hook
Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with :
Columns with nut
1 filter
1 stainless steel braided hose (hand shower) surrounded by a PVC sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
