Delabie köögisegisti Professionaalne köök 5632
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Lisainfo: info@pegu.ee
SUVI261 sisesta sooduskood ostukorvi lehel kupongi lahtrisse!
Pre-rinse set with mixer

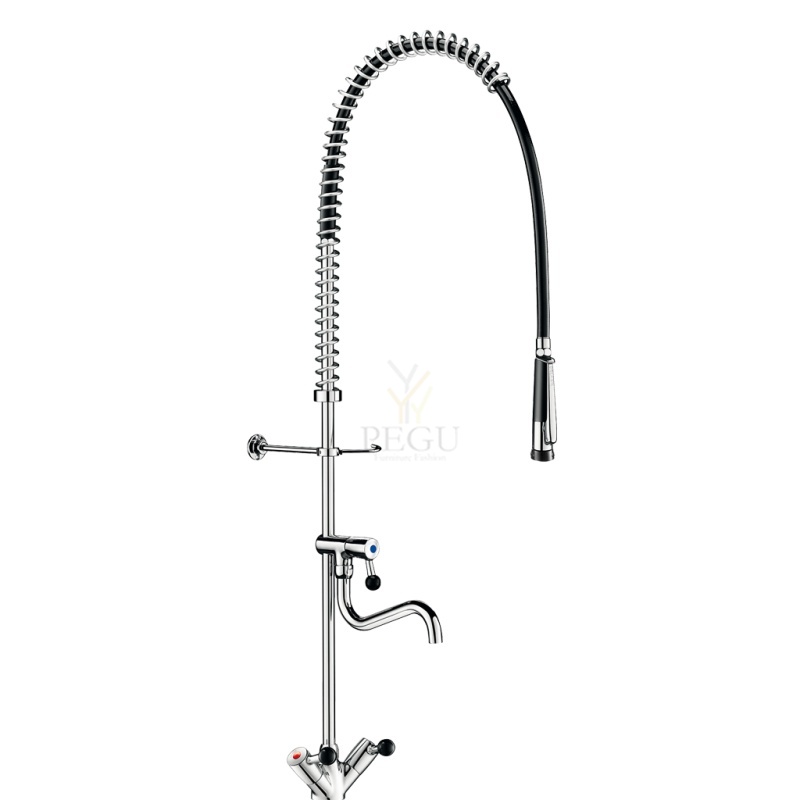

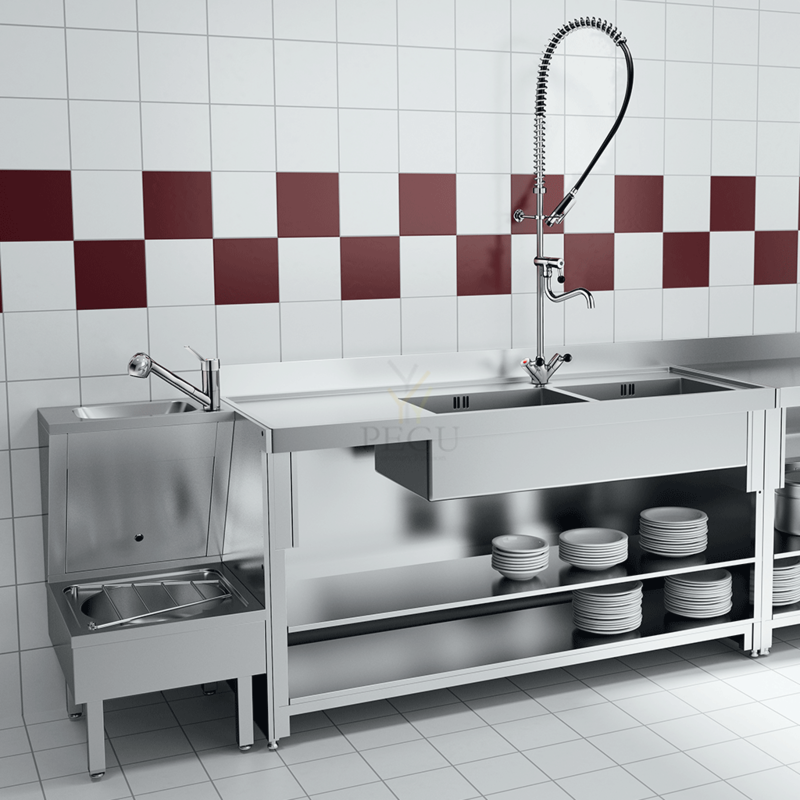

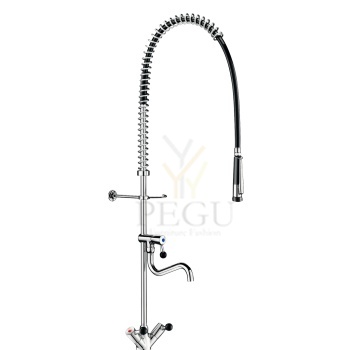

Ref. 5632
Complete pre-rinse set with bib tap.
Deck-mounted single hole mixer with:
- Valve heads with reinforced mechanisms with ergonomic control levers.
- F3/8" flexibles and non-return valves.
- Reinforced fixing via 2 threaded rods with back-nuts.
Bib tap with swivelling, tubular spout L. 200mm.
- 20 lpm full flow rate achieved within the first 90°.
- Valve head with reinforced mechanism with ergonomic control lever.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.

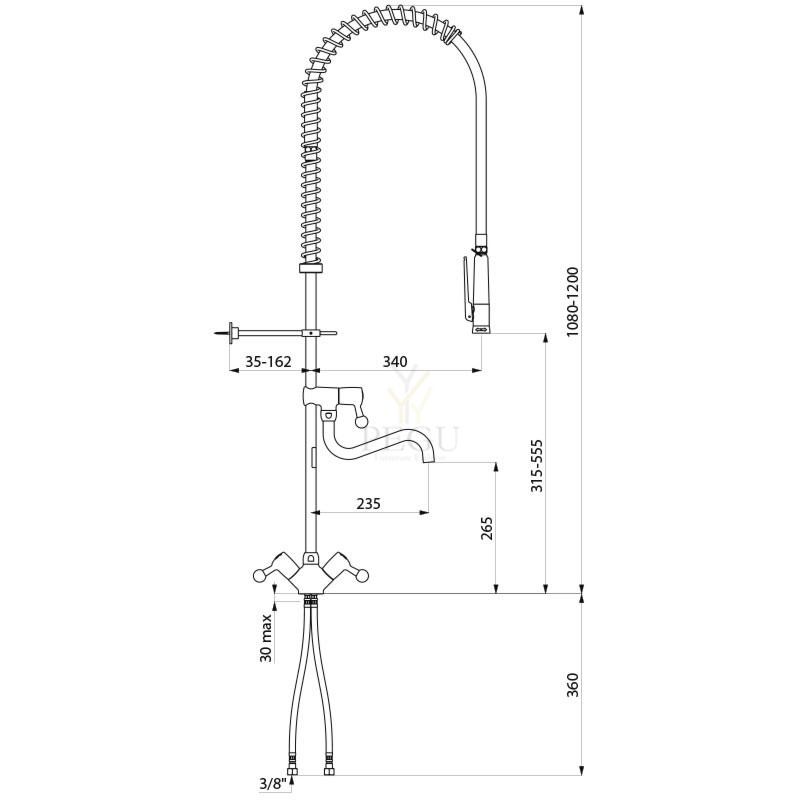

TECHNICAL FEATURES
Pre-rinse set with mixer
Ref. 5632
| Connector | F3/8" |
|---|---|
| Height | 1080 - 1200mm |
| Drop height | 315-555mm |
| Flow rate | 20 lpm |
| Width to the wall | 35 - 162mm |
| Finish | Chrome-plated brass |
Failid
Characteristics
- stainless steel wall hung cleaner‘s sink
- with splash-back and grating
- overflow set
- waste output Ø 50 mm
- material CrNi 18/10 (AISI-304)
- brushed finish
| Order number | 98010 |
| Code | SLVN 01 |
Характеристики
- stainless steel wall hung cleaner‘s sink
- with splash-back and grating
- overflow set
- waste output Ø 50 mm
- material CrNi 18/10 (AISI-304)
- brushed finish
| Арт. № | 98010 |
| Название | SLVN 01 |
Pre-rinse set with mixer
Ref. 5625
Complete pre-rinse set with bib tap.
Single hole deck-mounted mixer with slimline control lever.
Supplied with F3/8" flexible hoses and non-return valves.
Bib tap with swivelling, tubular spout L. 200mm.
- 16 lpm full flow rate achieved within the first 90°.
- Valve head with reinforced mechanism and ergonomic control.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Reinforced, food-grade black flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
TECHNICAL FEATURES
Pre-rinse set with mixer
Ref. 5625
| Connector | F3/8" |
|---|---|
| Height | 1105-1225mm |
| Drop height | 340 - 580mm |
| Flow rate | 16 lpm |
| Width to the wall | 35-162mm |
| Finish | Chrome-plated brass |
Twin hole pre-rinse set with mixer
Ref. G6532
Complete pre-rinse set with bib tap.
Deck-mounted twin hole mixer with adjustable centres 100 - 240mm with:
- Valve heads with control knobs.
- Offset inlet connections with M1/2" tails.
Bib tap with:
- Telescopic, swivelling spout L. 200-290mm with 25 lpm flow rate at the outlet.
- Valve head with control knob.
White, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
TECHNICAL FEATURES
Twin hole pre-rinse set with mixer
Ref. G6532
| Connector | F3/8" |
|---|---|
| Height | 1125 - 1245mm |
| Drop height | 360 - 600mm |
| Flow rate | 25 lpm |
| Width to the wall | 35-162mm |
| Finish | Chrome-plated brass |
Ref: 70828 - Wall-mounted column with 2 holes – rinsing head
> THE PRODUCT BENEFITS
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks Fast filling of tanks: 30L / min at 3 bar
Reinforced body / column interface
Intuitive and ergonomic knobs: easy grip
Product design
Adjustable wall support
Locking hook to avoid MSD (musculoskeletal disorder)
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Easy maintenance: presence of a slot under the red / blue pad allowing the passage of a screwdriver
Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
Two-hole mixer on deck with 1/4 turn ceramic head with flow rate of 30L /min at 3 bar
1/4 turn ceramic head tap with filling spout Lg 300 mm - adjustable
Black hand shower M 1/2 '' with grip surface limiting the risk of burns
Shower flow: 12L / Min (regulated) - User adjustable jet: concentrated or wetting - Anti-tartar spray nozzle - Locking hook for continuous flow - integrated NF check valve
Interchangeable anti-tartar flow straightener
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall) Adjustable shower holder on the left or right
> Recommended working pressure:
1 to 5 bars
> Flow rate:
30L /min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Body, spout and column in chromed brass Injected metal hook
Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with :
Columns with nut
1 filter
1 stainless steel braided hose (hand shower) surrounded by a PVC sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
