Delabie köögisegisti Professionaalne köök 5636

Tootekood: DE-5636
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
823,50 €
Kuumakse alates: 70,82 €
Kogus: - +

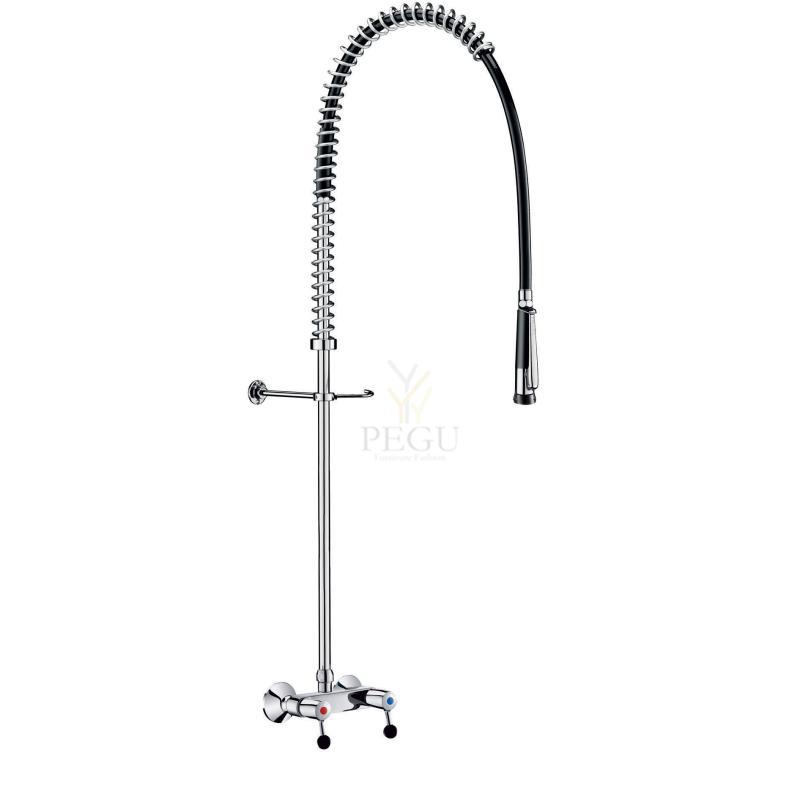

Wall-mounted pre-rinse set with mixer
Ref. 5636

Complete pre-rinse set without bib tap.
Wall-mounted mixer, F3/4" with adjustable centres with:
- Valve heads with reinforced mechanisms with ergonomic ball levers.
- M1/2" M3/4" offset connectors.
- Non-return valves integrated in the mixer.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.

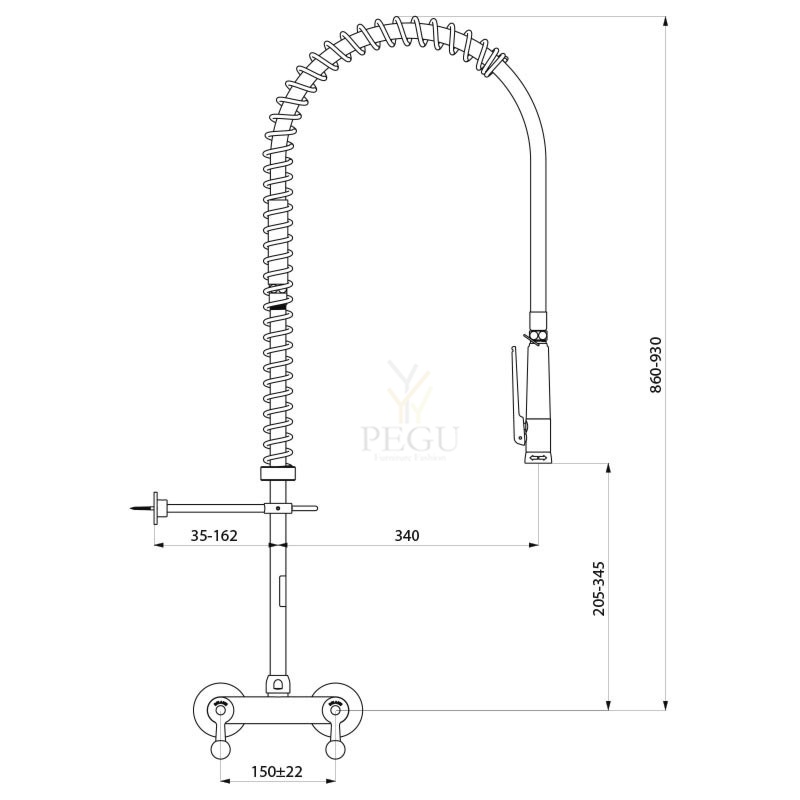

TECHNICAL FEATURES

Wall-mounted pre-rinse set with mixer
Ref. 5636

Connector M1/2"
Height 860 - 930mm
Flow rate 9 lpm
Width to the wall 35 - 162mm
Finish Chrome-plated brass

Failid

Sarnased tooted

Köögisegisti Damixa Tradition, Vask, PVD

PVD viimistlussed:



PVD:(physical vapor deposition) on kõrgtehnoloogiline molekulaar-protsess mis annab tootele eluaegse garantii tuhmumise vastu.

Tootekood: D3706980 ,   Tarneaeg: 7 päeva
480,44 € (12%)
545,95 €
R/V teras veetrapp, D75 mm vertikaalne, 150x150mm
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad
423,00 €

KV15

Three-hole mixer combination consisting of ¼ turn ceramic stop valves S50D + S50DH, swivel spout 090H with water saving aerator, 2 pcs. 60 mm circular flanges 001.
Inlet/Outlet: ½".
Hole cut out size, valves: 30 mm.
Hole cut out size, spout: 22 mm.
Tootekood: QKV15-16 ,   Tarneaeg: 2-4 nädalad
1287,10 €

Köögisegisti Damixa Silhouet harjatud messing PVD

SILHOUET
Kitchen Mixer brushed brass pvd

Article no.:

7408679

Finish:

Brushed Brass PVD

Series:

Silhouet

Designer:

Halskov & Dalsgaard

Tootekood: D7408679 ,   Tarneaeg: 7-14 päeva
311,10 € (10%)
345,67 €

Köögisegisti Damixa Silhouet pesumasina ventiiliga matt messing

SILHOUET
Kitchen Mixer with Dishwasher Shut off valve brushed brass pvd

Article no.:

7408179

Finish:

Brushed Brass PVD

Series:

Silhouet

Designer:

Halskov & Dalsgaard


EAN no.:

5708516827924



Slim. Scandinavian. Attractive.

With its pure, inviting design Silhouet fits beautifully in the kitchens and bathrooms of today as well as tomorrow. For the bathroom sink, Silhouet is available in three different heights to ensure you can also use it with a tall, tabletop mounted vessel sink. The stylish Silhouet shower system features a showerhead that due to its ultra slim design appears to hover for an even more sophisticated look. Silhouet is the essence of timeless Scandinavian design and outstanding Damixa quality.

Tootekood: D7408179 ,   Tarneaeg: 7-14 päeva
438,29 € (10%)
486,98 €
