Delabie köögisegisti Professionaalne köök 5680
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Lisainfo: info@pegu.ee
SUVI261 sisesta sooduskood ostukorvi lehel kupongi lahtrisse!

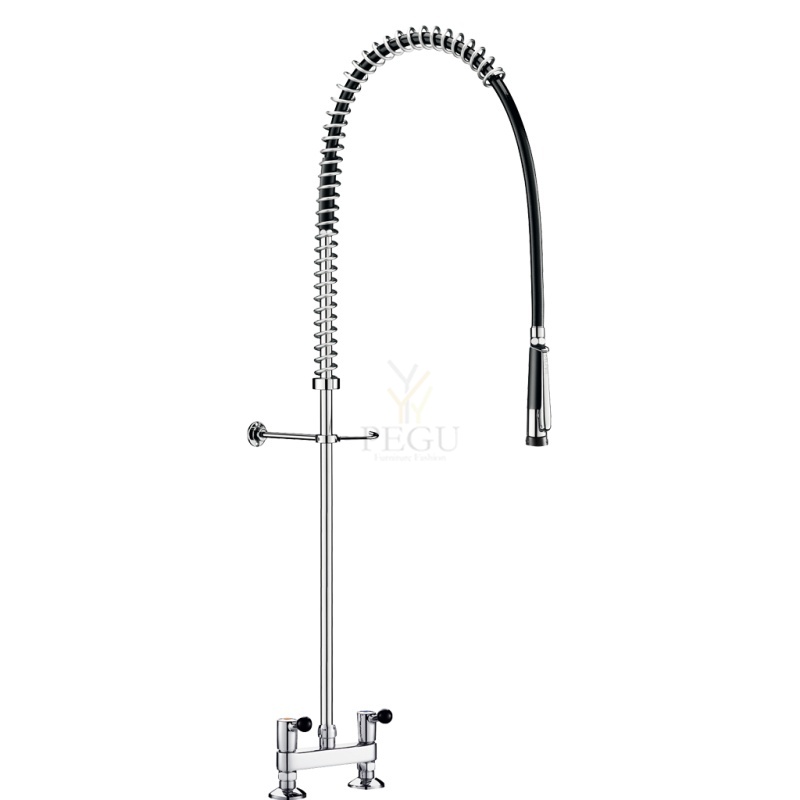

Twin hole pre-rinse set with mixer
Ref. 5680
Complete pre-rinse set without bib tap.
Deck-mounted twin hole mixer with 150mm centres with:
- Valve heads with reinforced mechanisms with ergonomic control levers.
- Offset inlet connections with M1/2" tails.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.

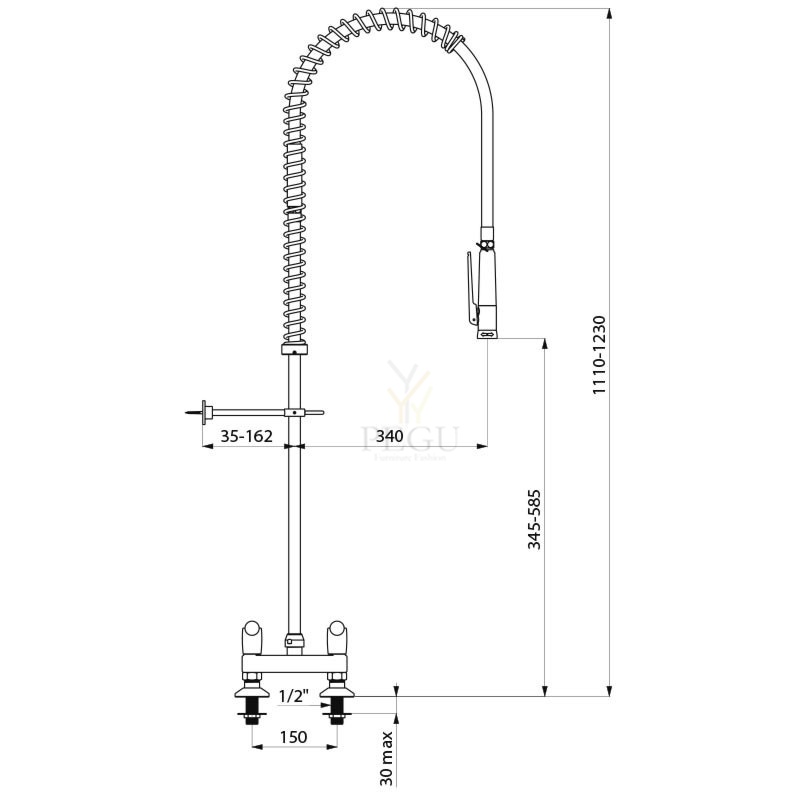

TECHNICAL FEATURES
Twin hole pre-rinse set with mixer
Ref. 5680
| Connector | M1/2" |
|---|---|
| Height | 1110 - 1230mm |
| Drop height | 345 - 585mm |
| Flow rate | 9 lpm |
| Width to the wall | 35 - 162mm |
| Finish | Chrome-plated brass |
Failid
Mechanical mixer set and column with retracting hand spray
Ref. 2599
Mechanical mixer set and column with retracting hand spray.
Retracting hand spray with 2 jet options: flow straightener/rain effect.
Swivelling column H. 250mm L. 220mm.
Ø 35mm ceramic cartridge with pre-set maximum temperature limiter.
Mixer body and column with smooth interior.
Flow rate 12 lpm at 3 bar.
Sculptured control lever.
Mixed water brass outlet L. 160mm.
BIOSAFE flexible shower hose reduces bacterial proliferation: transparent polyurethane flexible hose, smooth interior and exterior, low water volume (interior Ø 6mm).
Special counterweight.
Chrome-plated brass body.
F⅜" PEX flexibles and reinforced fixing via 2 stainless steel rods.
341,00 €
Function
- This 3/4’’ DIN (30x37) DIN valve head can be used to refurbish all professional kitchen tapware in the PRESTO Maestro line Standards and approvals: The PRESTO spare parts contained in this packaging make it possible to maintain the NF and ACS certifications for the finished products they are designed to be used on.
Packaging:
- 1 unit
Material and finish colour
- Nitrile/EPDM elastomer seals
Ref: 70800 - Deck-mounted mixer – upward spout
> THE PRODUCT BENEFITS
Resistant to intensive use
Reinforced body / spout interface with double sliding bearings: no play and high endurance Robust spout: 22 mm in diameter
Ergonomic and robust control: easy grip
Robust mixing handle - possibility to install it laterally (installation flexibility)
Hygiene: spout with smooth interior
Product design
Ease of cleaning
High spout to let large containers pass
Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
Single-lever deck-mounted mixer with spout above
360 ° swivel spout, 250 mm projection, height under spout 276 mm, diameter 22 mm. Spout thickness: 1.5 mm. Ceramic cartridge
Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
25L / min at 38°C at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Chromed brass body and spout Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (as part of thermal shock).
> Delivered with :
1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF 2 filters
> Option:
Possibility of adding an extension sold separately, facilitating the passage of large containers
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
