Delabie köögisegisti Professionaalne köök G6533
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Lisainfo: info@pegu.ee
JÕULU2021 sisesta sooduskood ostukorvi lehel kupongi lahtrisse!

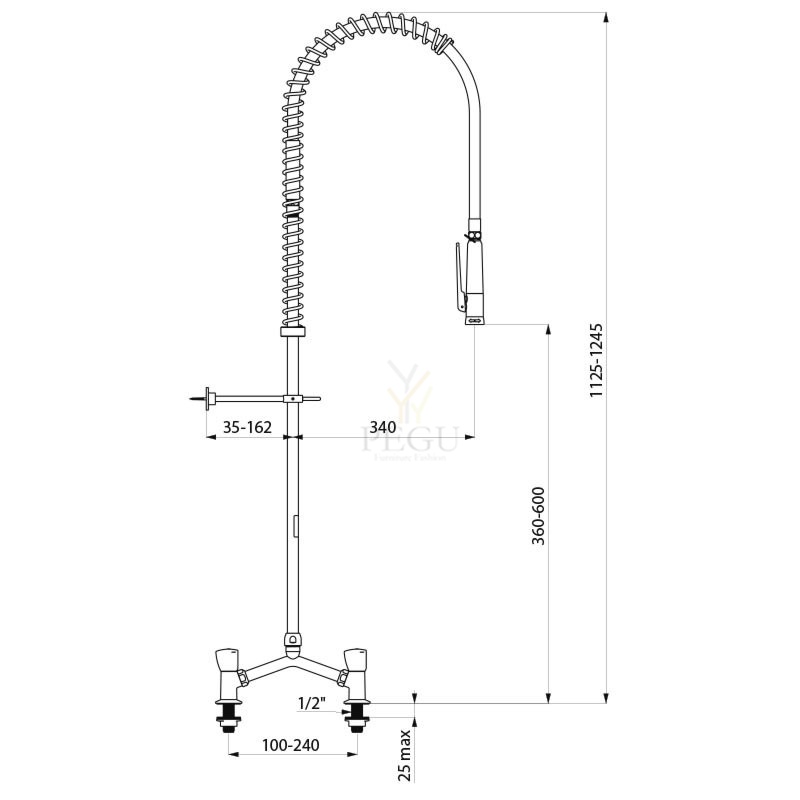

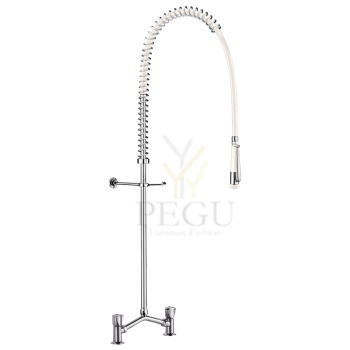

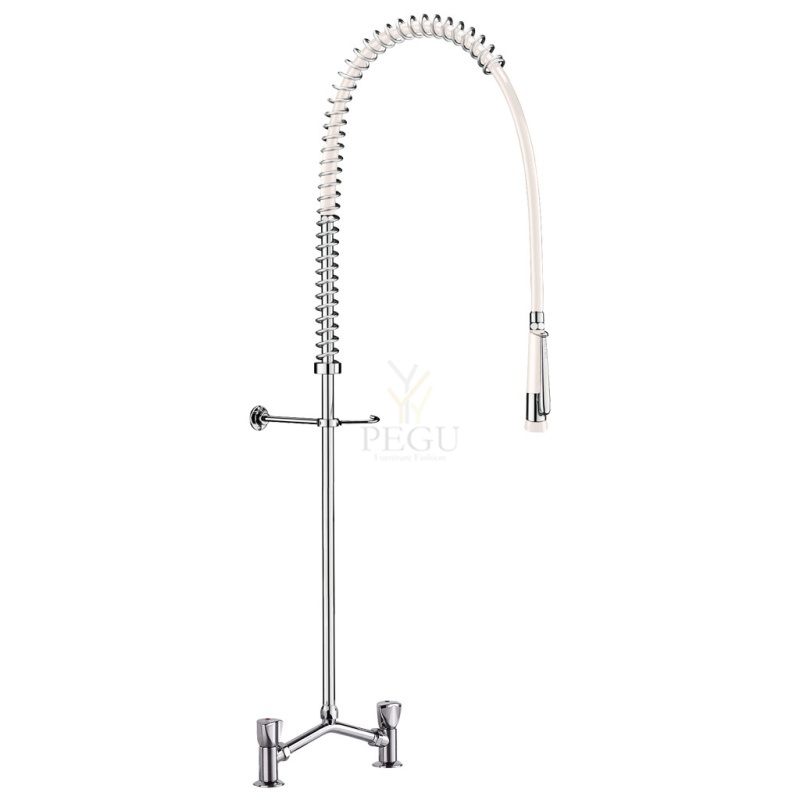

Twin hole pre-rinse set with mixer
Ref. G6533
Complete pre-rinse set without bib tap.
Deck-mounted twin hole mixer with adjustable centres 100 - 240mm with:
- Valve heads with control knobs.
- Offset inlet connections with M1/2" tails.
White, scale-resistant M1/2" hand spray with adjustable spray and 9 lpm flow rate at the outlet.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
TECHNICAL FEATURES
Twin hole pre-rinse set with mixer
Ref. G6533
| Connector | M1/2" |
|---|---|
| Height | 1125 - 1245mm |
| Drop height | 360 - 600mm |
| Flow rate | 9 lpm |
| Width to the wall | 35-162mm |
| Finish | Chrome-plated brass |
Failid
246,00 €
Pre-rinse set with mixer
Ref. 6693
Complete pre-rinse set without bib tap.
Deck-mounted single hole mixer with slimline control lever.
Supplied with F3/8" flexibles and non-return valves.
White, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Reinforced, food-grade, white flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
TECHNICAL FEATURES
Pre-rinse set with mixer
Ref. 6693
| Connector | F3/8" |
|---|---|
| Height | 1105-1225 mm |
| Drop height | 340-580 mm |
| Flow rate | 9 lpm |
| Width to the wall | 35-162 mm |
| Finish | Chrome-plated brass |
Ref: 70804 - Wall-mounted mixer tap with 2 holes – upward spout
> THE PRODUCT BENEFITS
Resistant to intensive use
Reinforced body / spout interface with double sliding bearings: no play and high endurance
Robust spout: diameter 22 mm.
Intuitive and ergonomic knobs: easy grip
Hygiene: spout with smooth interior
Wall version: facilitates cleaning and promotes optimal hygiene
Product design
High spout to let large containers pass
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
Wall-mounted mixer with spout above
360 ° swivel spout, 250 mm projection, height under spout 226 mm, diameter 22 mm. Spout thickness: 1.5 mm 1/4 turn ceramic head with flow rate 81L / min at 3 bar
Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
81L / min at 3 bar
> Hydraulic supply:
M1 /2'' M3 /4'' offset fittings supplied with rosettes
> Material and color of finish:
Chromed brass body and spout Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with :
NF check valves 2 filters
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Ref: 70834 - Lateral control – Deck-mounted mixer tap – upward spout
> THE PRODUCT BENEFITS
Resistant to intensive use
Reinforced body / spout interface with double sliding bearings: no play and high endurance Robust spout: Ø 22 mm - thickness 1.5mm
Ergonomic and robust control: easy grip
Remote control on the side: easy access for washing
Hygiene: spout with smooth interior
Product design
Ease of cleaning
High spout to let large containers pass
Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
360 ° swivel spout 250 mm projection Height under spout 276 mm - diameter 22 mm Spout thickness: 1.5 mm
Ceramic cartridge with flow 25 L / min at 38°C at 3 bar
Interchangeable anti-tartar flow straightener
Side elbow control
> Recommended working pressure:
1 to 5 bars
> Flow rate:
25L / min at 38°C at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Chromed brass body and spout Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with :
1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF 2 filters
> Option:
Possibility of adding an extension sold separately, facilitating the passage of large containers
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
