Esileht » Delabie majahoidja/utiliseerimise põranda valamu R/V teras AISI304 180150
Laost otsas
Delabie majahoidja/utiliseerimise põranda valamu R/V teras AISI304 180150 Zoom
Delabie majahoidja/utiliseerimise põranda valamu R/V teras AISI304 180150 Delabie majahoidja/utiliseerimise põranda valamu R/V teras AISI304 180150 mõõdud

Delabie majahoidja/utiliseerimise põranda valamu R/V teras AISI304 180150

Märkus sisekujundajale ja projekteerijale Projekti spetsifikatsiooni koostamisel palume lisada PEGU ametliku tarnijana.  Vaata tootevalikut PEGU e-poes

✔ Turvaline makse: Maksekeskuse kaudu või otse panga kaudu (Swedbank, SEB, LHV, Luminor, Coop)

✔ Ametlikud Euroopa brändid: Damixa, Presto, Mediclinics, Haceka, Delabie ja teised

✔ Tagastusgarantii: 14 päeva – ost ilma riskita

✔ Tarneaeg: 1–3 tööpäeva (kui kaup on Tallinna laos), uued tellimused tehases märgitud vastavalt tarneajale

Tootekood: DE-180150
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva

✅ PEGU.ee-s valime ainult seda, mida on meeldiv omada kodus.
Nutikad lahendused, kaunis disain ja tõestatud kvaliteet.
Kui valid meie juurest, valid kindlustunde.

Suurepärane valik!

Lisa toode ostukorvi ja vormista tellimus!

Täna saad oma ostu lõpetada isikliku promokoodiga FDe24DA7bDaa
✅ Kopeeri ja kleebi see kood kupongi väljale ostukorvis.

ESTO järelmaks kuumaks al. 89,07 €
Hind:
1047,90 €
Kuumakse alates: 89,07 €
Kogus: - +

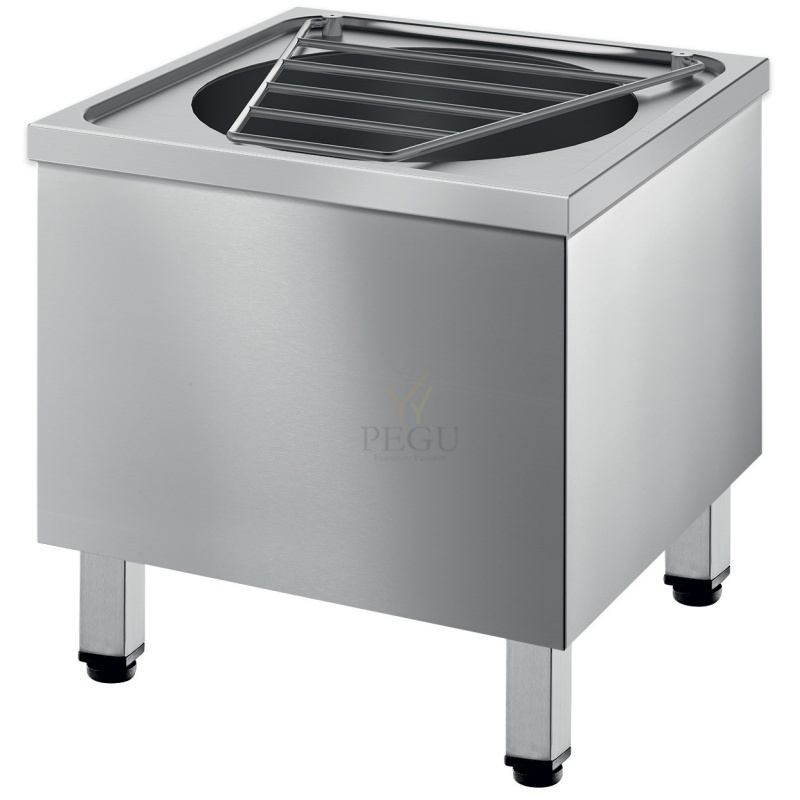

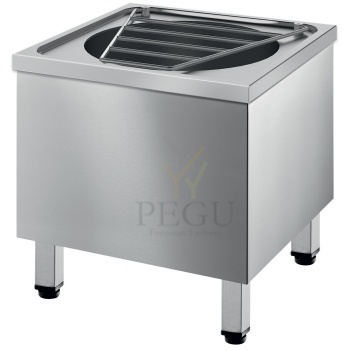

Delabie majahoidja/utiliseerimise põranda valamu R/V teras AISI304 180150

Floor-standing disposal sink
Ref. 180150

Floor-standing disposal sink.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.0mm.
One-piece pressed bowl, seam-free.
Smooth surface is easy to clean.
Adjustable feet height up to 40mm.
Supplied with 1½" waste. Without overflow.
Hinged stainless steel bucket grid.
Weight: 10.6kg.

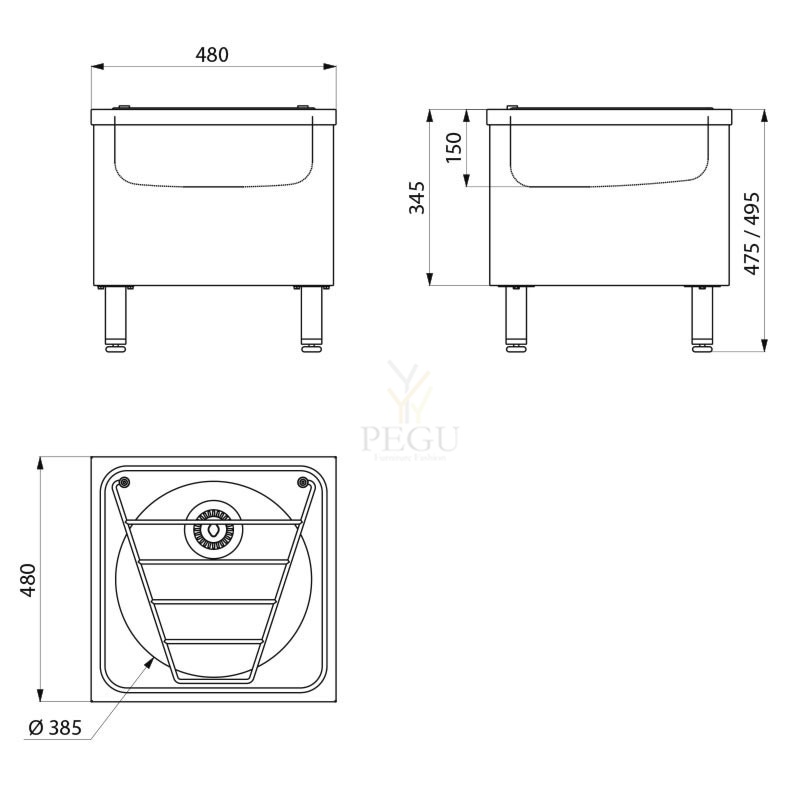

TECHNICAL FEATURES

Floor-standing disposal sink
Ref. 180150

Height 475/495mm
Length 480mm
Width 480mm
Thickness 1.0mm
Finish 304 polished satin stainless steel

Failid

Sarnased tooted
Laost otsas
AZP Brno adapter 1-3 punkte ZAC 1-20
AZP Brno adapter 1-3 punkte ZAC 1-20

AZP Brno adapter 1-3 punkte ZAC 1-20




ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).



Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Tootekood: AZP-ZAC 1-20 ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
106,72 €
Laost otsas
Intra ICON valamu IC1 harjatud, alt paigaldamiseks
Intra ICON valamu IC1 harjatud, alt paigaldamiseks

Intra ICON valamu IC1 harjatud, alt paigaldamiseks

General

Size (mm): 525 x 334 x 97
Large bowl (mm): 500 x 310 x 83
Designer: Halvor Thorsen





Description

Icon hand wash basin IC1-22 in stainless steel 18/10, is designed for under mounting.The hand wash basin is pressed in one piece and has laser-cut integrated outlet holes that are concealed by a removable outlet cover.The basin is supplied with waste. Without overflow.

Brushed finish.

Tootekood: I-IC1 32N ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
446,20 €
Laost otsas
Intra U1 R/V teras L375mm kompaktne koristaja valamu, pritsmisplekiga
Intra U1 R/V teras L375mm kompaktne koristaja valamu, pritsmisplekiga

Intra U1 R/V teras L375mm kompaktne koristaja valamu,  pritsmisplekiga

Valamu R/V terasest

Garaazi/koristusruumi jaoks

Tootekood: I-U1STD ,   Tarneaeg: 7-14 päeva ,   Viimistlus:
334,39 €
Laos
Joogifontaan kinnitus põranda R/V teras Portinox FP-001
Joogifontaan kinnitus põranda R/V teras Portinox FP-001

Joogifontaan kinnitus  põranda R/V teras Portinox FP-001

FP-001 Drinking fountain for foor installation made of 1mm thick stainless steel.

Supplied with a push button water bubbler.

Basin polished fnish Cover grinding fnish

* Customized height for children available. Made of Stainless Steel AISI 304 (1.4301)

Tootekood: FP-001 ,   Tarneaeg: 7 nädalad ,   Viimistlus:
903,57 €
Laost otsas
Joogifontään seinale sensoriga R/V teras AISI316(basseinid) 6V(4x1.5V) AZP Brno AFO01.YB.CL
Joogifontään seinale sensoriga R/V teras AISI316(basseinid) 6V(4x1.5V) AZP Brno AFO01.YB.CL

Joogifontään seinale sensoriga R/V teras AISI316(basseinid) 6V(4x1.5V)

AZP Brno AFO01.YB.CL

AFO 01.Yst. steel sensor controlled drinking fountain



AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.

Fountain is made by welding all components together.

Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).

Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).

St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.

The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.

Package contents

  • st. steel drinking fountain
  • nozzle
  • sensor and electronic
  • electromagnetic valve
  • connecting flexible hose
  • corner valve with filters
  • siphon
  • mounting material
water inlet G 1/2"
water pressure 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL)
  2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL)
outlet d = 40 mm
bowl inner dimension d = 245 mm
weigth 4 kg
suppply 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL)
  6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL)
power supply ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL)

Tootekood: AZP-AFO01.YB.CL ,   Tarneaeg: 3-4 nädala ,   Viimistlus:
1302,00 €
