Delabie pissuaar DELTA TC antivandaalne R/V teras AISI304 160770

Tootekood: DE-160770
Kaubamärk:
Ühik: tk
Tarneaeg: 4-6 nädalad
Hind:
1130,00 €
Kuumakse alates: 95,97 €
Kogus: - +

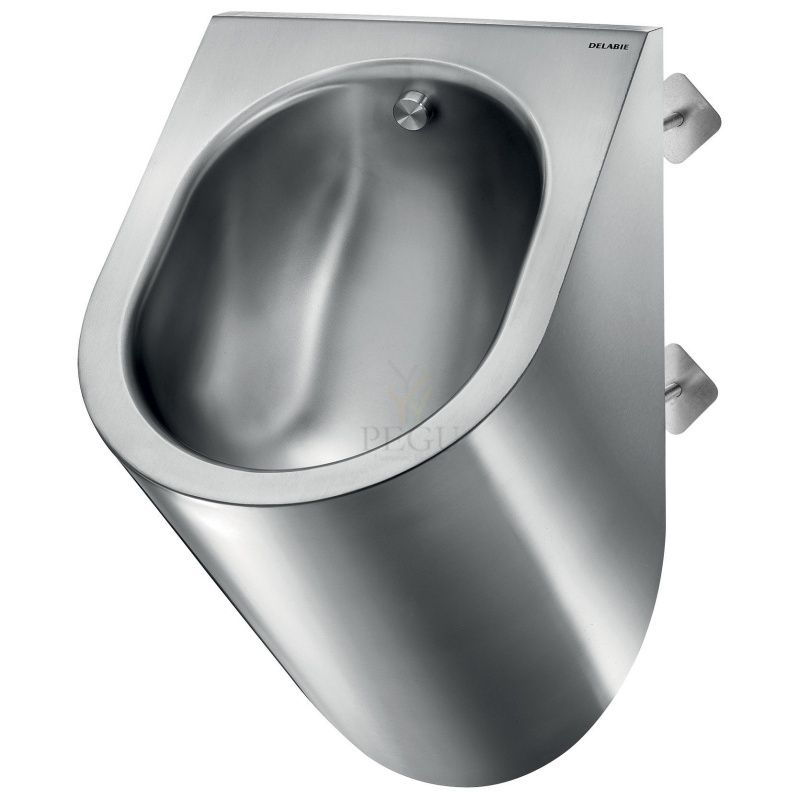

Delabie pissuaar DELTA TC antivandaalne R/V teras AISI304 160770

DELTA TC wall-hung urinal
Ref. 160770

Wall-hung individual rimless urinal, cross wall installation for service ducts.
Bacteriostatic 304 stainless steel. Stainless steel thickness: 1.2mm.
Rear (recessed) inlet.
Vandal-resistant: recessed waste outlet, concealed trap.
200mm threaded rod can be cut to size (other lengths available on request).
Supplied with fixing elements.
CE marked. Complies with European standard EN 13407 for 2L flush.
Weight: 8kg.

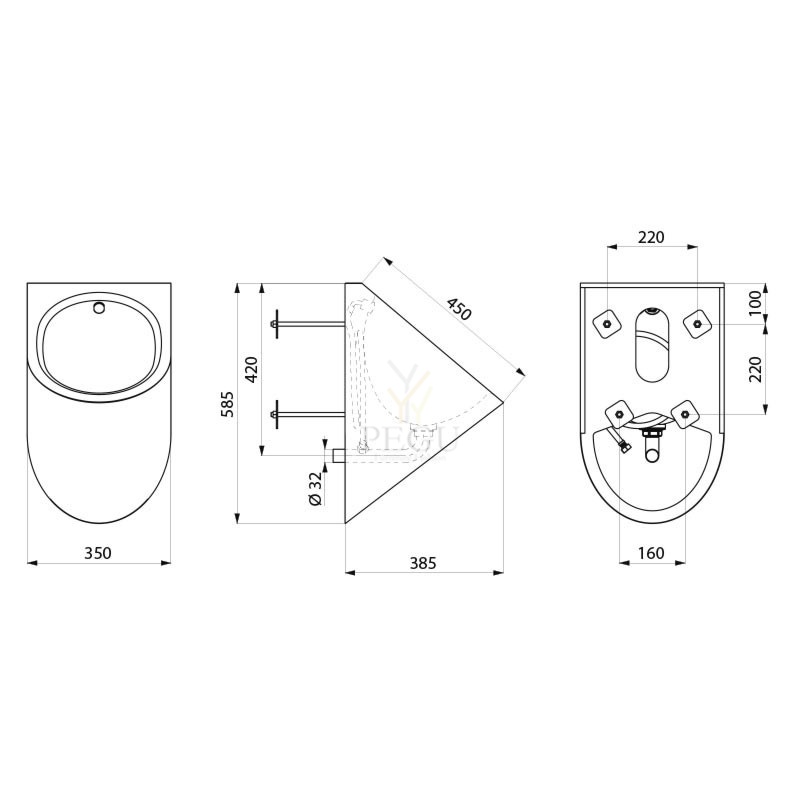

TECHNICAL FEATURES

DELTA TC wall-hung urinal
Ref. 160770

Height 585mm
Length 385mm
Width 350mm
Thickness 1.2mm
Finish Polished satin 304 stainless steel

Failid

Sarnased tooted

Antivandaalne valamu + seebidosaator + termostaat + kätekuivati AZP Brno UM 026.TV INV

AUM 026 INV is a stainless steel, partly wall-built in washbasin, containing the combination of a liquid soap dispenser, water tap and hand dryer in a small space. The washbasin is adjusted to be used also by wheelchair persons – it is shallow, completed with handles, the waste is hidden behind the wall. Controlled by durable piezo-pushbuttons, electronically controlled turn-off (the period of water running is settable by the owner). The washbasin is to be mounted through the wall, all technology components are behind the wall, and thus cannot be damaged by users (anti-vandal design).

A wall-hanged version may be supplied to order, or a version without any of the functions (e.g. onlz water plus soap, or water plus dryer). The washbasin is made of AISI 304 stainless steel. A recommended cleaning agent for stainless products maintenance: Würth – preservation (order no. 0893 121 K), cleaning (order no. 893 121 1).

Basic technical information
Power supply: 230 V, 50 Hz
IP protection: IP 55
Dimensions (visible from outside): 800 x 800 x 363 mm
Required thickness of wall: min. 100 mm
Outlet: d = 40 mm

Requirements for setting up the construction
  1. Opening in the wal 740 x 740 mm
  2. Prepared el. supply cable 3C x 1,5 s 230 V, 50 Hz
  3. Prepared water outlet according to technical scheme


Complete delivery
  • Stainless-steel washbasin with handles
  • Electronic hand dryer
  • Electronic soap dispenser
  • Electronic water tap
  • Through-wall frame with bolts
  • Waste with a stink trap
  • 230V / 12V source for the electronics

Tootekood: AZP-AUM 026.TV INV ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
4370,49 €

Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita AZP Brno AUS 11


Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS-11 ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
381,15 €

Antivandaalne WC pott roostevaba taras AZP Brno AUZ 08




AUZ 08

stainless-steel standing closet, with hardened seat, back drain






AUZ 08 is a stainless-steel WC in matt design. To increase the user comfort, it is provided with a grey seat with a lid made of hardened plastic (newly also with a seat in black design AUZ 08.CS). AUZ 08 is designed to stand on the floor at the wall; it is suitable for places where the common closet cannot be attached to the wall, because of a thin bearing particle, for example. The standard version of AUZ 08 has a back drain (the version with the bottom drain AUZ 02). It is suitable to supplement the WC with the automatic pressure water flushing device AUZ 3, automatic flushing device with the piezo button AUZ 3.P (or the vandal-resistant flushing device BSAZ 01) or any flushing device with a cistern.



Thanks to its resistance to damage, the closet is primarily intended for social facilities with demanding operation, such as highway lay-byes, alehouses, etc., where easy maintenance of sanitary conditions is required. WC is also manufactured in the design for the disabled under the designation AUZ 08 INV



Further closet versions can be found in the section Stainless-steel closets or Stainless-steel safety closets.




Basic technical information
Water inlet: d= 34-50 mm
Min. water flow: 70 l/min
Outlet: d= 90 mm
Weight: 23 kg


Requirements for setting up the construction
  1. Set-up outlet d = 110 mm including rubber sleeve for pipe d = 90 mm.
  2. Set-up water inlet d= 34-50 mm according to chosen sealing.


Complete delivery
  • Stainless steel closet
  • Plastic seat
  • Anchoring material


Made to order
  • AUZ 3 - automatic pressure flushing system
  • AUZ 3.P - automatic pressure flushing system with piezo control
  • BSAZ 01 - vandal resistant pressure flushing system

Tootekood: AZP-AUZ 08 ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
2492,20 €

WC antivandaalne komplekt 1-200mm seinale 13060

Komplekt tualettile, WC ilma loputuskastita.

WC antivandaalne komplekt 1-200mm seinale

13060

> Working pressure : 1 to 5 bar

> Volume of water delivered : Adjustable from 6 to 9 litres with stop valve Anti-water-hammering design

> Flow time : From 7 to 9 seconds

> Hydraulic supply : MM G 1"1/4 In line Outlet connection on flush pipe Ø 32 mm

> Material and colour finish : Body and cross-partition control in Brass Push Button in Brass, chrome finish

> Security : Anti-siphonic device

> Delivered with : 1 Ball valve integrated 1 cross partition control 15 to 200m 1 fitting out, 1 bent tube and 1 junction nozzle

> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12165 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Tootekood: P13060 ,   Tarneaeg: 6-7 nädalad ,   Viimistlus:
471,00 €

Presto antivandaalne dušisüsteem 500 S eelsegatud veele sein 1.5mm-max 200mm 38240

38240

> Working pressure :

1 to 5 bar

> Flow :

6 l/min at 3 bar with integrated flow limiter Anti-water-hammering design

> Flow time :

Adjustable by washer 30 second timer (-10/+5 seconds)

> Hydraulic supply :

Inlet M G 1/2" (15x21) - Cold or premixed water

> Thermal resistance :

Resistant to a temperature of 75°C for 30 minute thermal shock

> Security :

Patented anti-blocking "S" system to avoid the water to flow continuously

> Delivered with :

1 Cross-partition control (15 to 300 mm thick) 1 Tap P 500 S® for shower
Shower head with 17° or 25° directional grid 2 washers for flow time adjustment

1 Flat gasket
1 Nut 1/2'' (15x21) Instruction manual

> Standards & approvals :

Brass body in accordance with EN 1982, EN 12164, EN 12165 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Tootekood: P38240 ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
513,00 €
