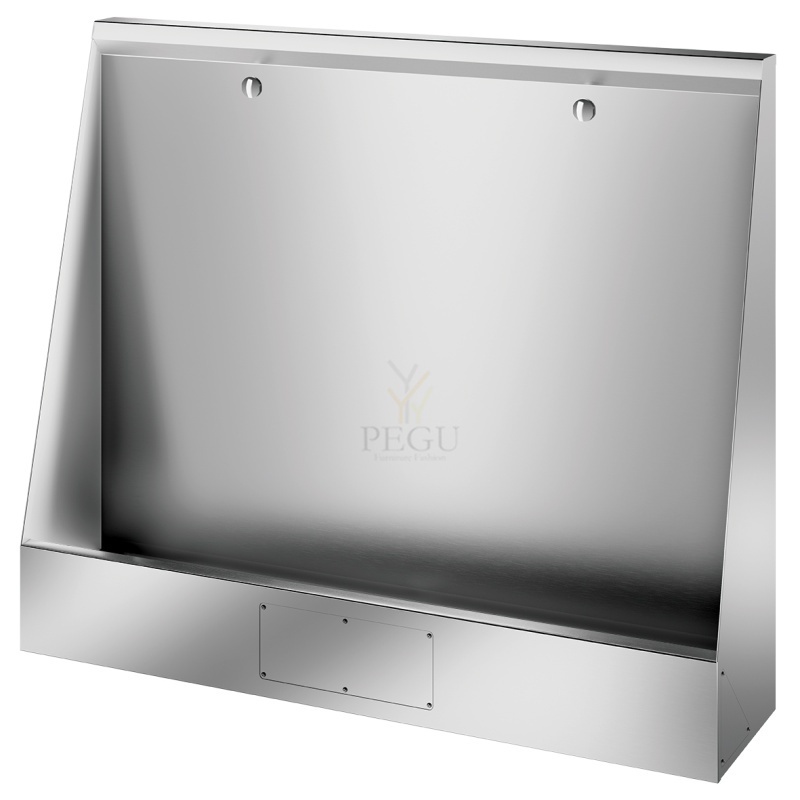

Delabie pissuaar LP 1200mm antivandaalne R/V teras AISI304

Kaubamärk:
Ühik: tk
Tarneaeg: 4-6 nädalad
Hind:
2244,20 €
Kuumakse alates: 190,76 €
Kogus: - +
   - või -

LP trough urinal
Ref. 130310

Floor-standing trough urinal.
Bacteriostatic 304 stainless steel. Stainless steel thickness: 1.2mm
Rear water inlet. Central drainage.
Supplied with 2 stainless steel rinsers and 2 flexible hoses.
Water saving: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Waste outlet 1½". Supplied with waste and integrated trap (ref. 785000).
Easy to install and maintain thanks to access panels with theft prevention TORX security screws.
Weight: 24.2kg.

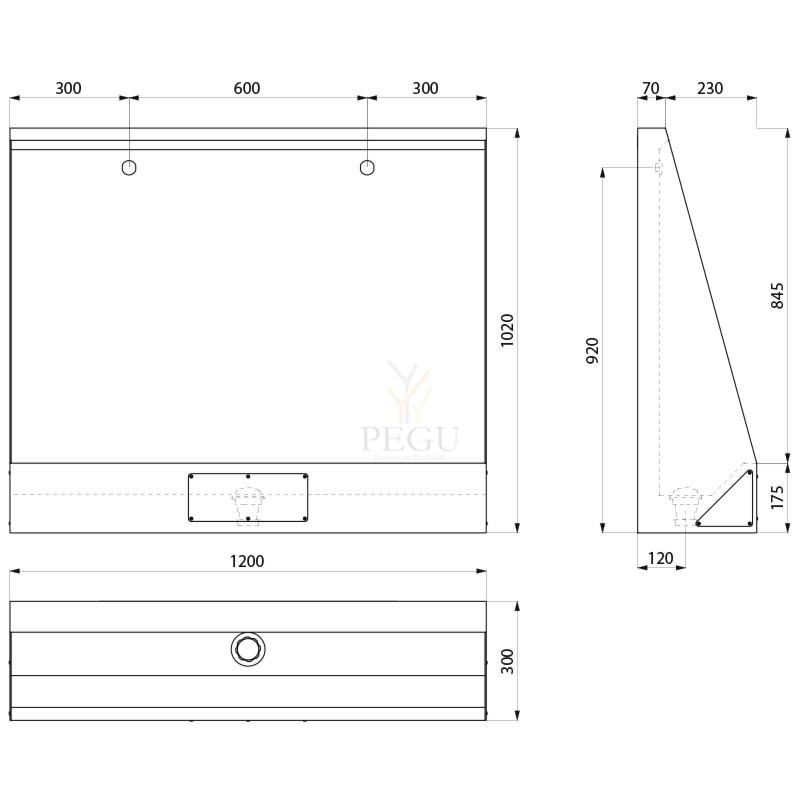

TECHNICAL FEATURES

LP trough urinal
Ref. 130310

Height 1020mm
Length 300mm
Width 1,200mm
Thickness 1.2mm
Finish Polished satin 304 stainless steel

Failid

Sarnased tooted
R/V teras veetrapp, D75 mm vertikaalne, 150x150mm
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
429,93 €

Stainless steel rectangular mirror, H. 500mm
Ref. 3452

Depth 10mm
Length Unbreakable mirror
Width 385mm
Drop height 485mm
Finish "Mirror" polished 304 stainless steel
Tootekood: DE-3452 ,   Tarneaeg: 7-21 päeva ,   Viimistlus:
279,51 €

SLP 82RZ



Urinal WCA with radar flushing unit, 230 V AC



Characteristics

  • economy flushing by 1 liter of water
  • easy installation by the help of paper drill template
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
Code SLP 82RZ
Order number 01822


Supply specification

SLP 82RZ - Supply No. 01822 - ceramic urinal with the radar flushing unit, electromagnetic valve, connecting hoses, angle valve, inlet fitting, siphon, paper drill template, mounting set, power supply

Technical information

Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting
Tootekood: SA-SLP82RZ ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
1264,80 €

KOMPACT TC washbasin and floor-standing WC combination
Ref. 166800

Combination unit: washbasin and floor-standing central WC panwith recessed toilet roll holder.
Service duct installation (through-the-wall).
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130008]

TECHNICAL FEATURES

KOMPACT TC washbasin and floor-standing WC combination
Ref. 166800

Height 1000mm
Length 615mm
Width 725mm
Thickness 2mm
Finish 304 polished satin stainless steel
Tootekood: DE-166800 ,   Tarneaeg: 4-6 nädalad ,   Viimistlus:
4240,39 €

KOMPACT washbasin and floor-standing WC combination
Ref. 162600

Washbasin combination unit with cistern, floor-standing WC pan on right side with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sides and 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel body thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface is easy to clean.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 second time flow, M1/2".
WC fitted with 6-litre cistern.
Water inlets: washbasin M1/2", WC M3/8".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.

TECHNICAL FEATURES

KOMPACT washbasin and floor-standing WC combination
Ref. 162600

Height 1000mm
Length 735mm
Width 725mm
Thickness 2mm
Finish Polished satin 304 stainless steel
Tootekood: DE-162600 ,   Tarneaeg: 4-6 nädalad ,   Viimistlus:
4912,23 €
