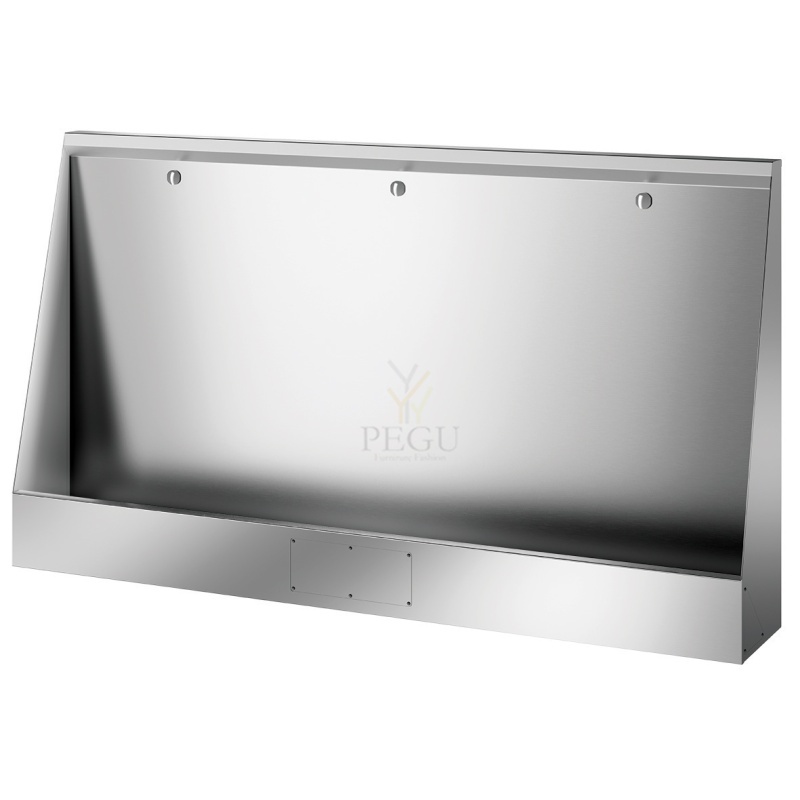

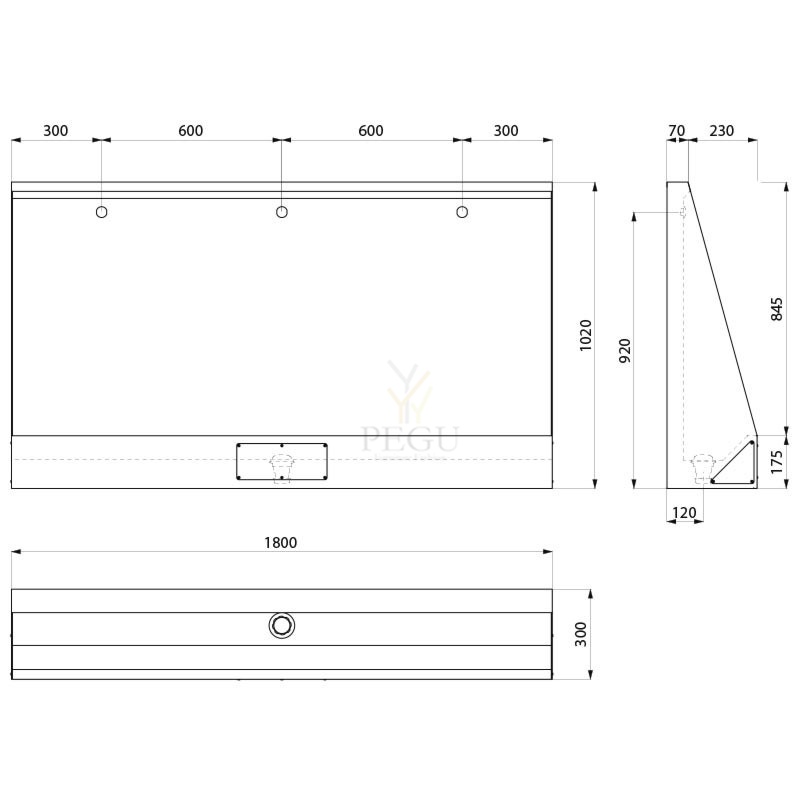

Delabie pissuaar LP 1800mm antivandaalne R/V teras AISI304

Antivandaalne valamu + seebidosaator + termostaat + kätekuivati

AUM 026 INV is a stainless steel, partly wall-built in washbasin, containing the combination of a liquid soap dispenser, water tap and hand dryer in a small space. The washbasin is adjusted to be used also by wheelchair persons – it is shallow, completed with handles, the waste is hidden behind the wall. Controlled by durable piezo-pushbuttons, electronically controlled turn-off (the period of water running is settable by the owner). The washbasin is to be mounted through the wall, all technology components are behind the wall, and thus cannot be damaged by users (anti-vandal design).

A wall-hanged version may be supplied to order, or a version without any of the functions (e.g. onlz water plus soap, or water plus dryer). The washbasin is made of AISI 304 stainless steel. A recommended cleaning agent for stainless products maintenance: Würth – preservation (order no. 0893 121 K), cleaning (order no. 893 121 1).

Basic technical information
Power supply:	230 V, 50 Hz
IP protection:	IP 55
Dimensions (visible from outside):	800 x 800 x 363 mm
Required thickness of wall:	min. 100 mm
Outlet:	d = 40 mm

Requirements for setting up the construction
Opening in the wal 740 x 740 mm Prepared el. supply cable 3C x 1,5 s 230 V, 50 Hz Prepared water outlet according to technical scheme

Complete delivery
Stainless-steel washbasin with handles Electronic hand dryer Electronic soap dispenser Electronic water tap Through-wall frame with bolts Waste with a stink trap 230V / 12V source for the electronics

Tootekood: AZP-AUM 026.TV INV , Tarneaeg: 3-4 nädalad , Viimistlus:

4370,49 €

WC poti raam loputuskastiga , antivandaalse R/V teras katega

BSAZ 5 Wall module construction for WC with vandal-resistant st.steel cover

BSAZ 5 is a wall module for wall mounted toilets equipped with anti-vandal stainless steel cover – with resistant stainless safety buttons. The cover is screwed by security bolts therefore it cannot be dismounted without special tools. The system is suitable for spaces where toilet flushing from a cistern is required but where, on the other hand, there is a threat of damaging of usual plastic covers. The robust anti-vandal stainless cover contains stainless control buttons resistant to damage (unlike the usual plastic buttons).

The cover of BSAZ 5 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Version types
BSAZ 5 - Wall module construction for WC with vandal-resistant st.steel cover

Basic technical information
Dimensions of wall module:	(1000–1200) × 510 × (160–200) mm
Dimensions of st.steel cover:	510 × 230 × 30 mm
Water inlet:	G 1/2"
Outlet:	DN 100

Requirements for setting up the construction
Space for mounting the wall module Water inlet G 1/2" Waste pipe for outlet connection (DN 100)

Complete delivery
wall module with cistern st.steel cover with vandal-proof buttons

Tootekood: AZP-BSAZ 5 , Tarneaeg: 3-4 nädalad , Viimistlus:

1072,30 €

Keraamiline pissuaar Domino ilma kaaneta, sensoriga, 230 V/DC

SLP 17

Urinal Domino with infra-red flushing unit, 24 V DC

Characteristics

system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
water flows after the user leaves active range
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 03
automatic hygiene flushing after 24 hours non-use

Order number	01170
Code	SLP 17

Supply specification

SLP 17 - Supply No. 01170 - ceramic urinal, flushing head with electronics, electromagnetic valve, angle valve, connecting hoses, mounting set

Technical information

Operating voltage: 24 V DC
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: flushing head

Tootekood: SA-SLP17 , Tarneaeg: 14-21 päeva , Viimistlus:

808,03 €

Keraamiline HOME pissuaar Alessi LAUFEN radariga Sanela, 24V DC

SLP 25R

Urinal Alessi with a radar flushing unit, 24 V DC

Characteristics

easy installation
whole flushing unit is placed behind the urinal
system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
automatic flushing after each 6 hours non-use
possibility to regulate a water flow by the angle valve
radar flushing unit recharges a water to the siphon after each flushing

Order number	01254
Code	SLP 25R

Supply specification

SLP 25R - Supply No. 01254 - ceramic urinal with radar flushing unit, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, inlet fitting with a rubber sealing, mounting set, siphon

Technical information

Dimension of mounting box: 140 x 140 x 75 mm
Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber sealing

Tootekood: SA-SLP25R , Tarneaeg: 14-21 päeva , Viimistlus:

2170,00 €

WC antivandaalne komplekt 1-200mm seinale

> Working pressure : 1 to 5 bar

> Volume of water delivered : Adjustable from 6 to 9 litres with stop valve Anti-water-hammering design

> Flow time : From 7 to 9 seconds

> Hydraulic supply : MM G 1"1/4 In line Outlet connection on flush pipe Ø 32 mm

> Material and colour finish : Body and cross-partition control in Brass Push Button in Brass, chrome finish

> Security : Anti-siphonic device

> Delivered with : 1 Ball valve integrated 1 cross partition control 15 to 200m 1 fitting out, 1 bent tube and 1 junction nozzle

> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12165 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Tootekood: P13060 , Tarneaeg: 6-7 nädalad , Viimistlus:

440,10 €
