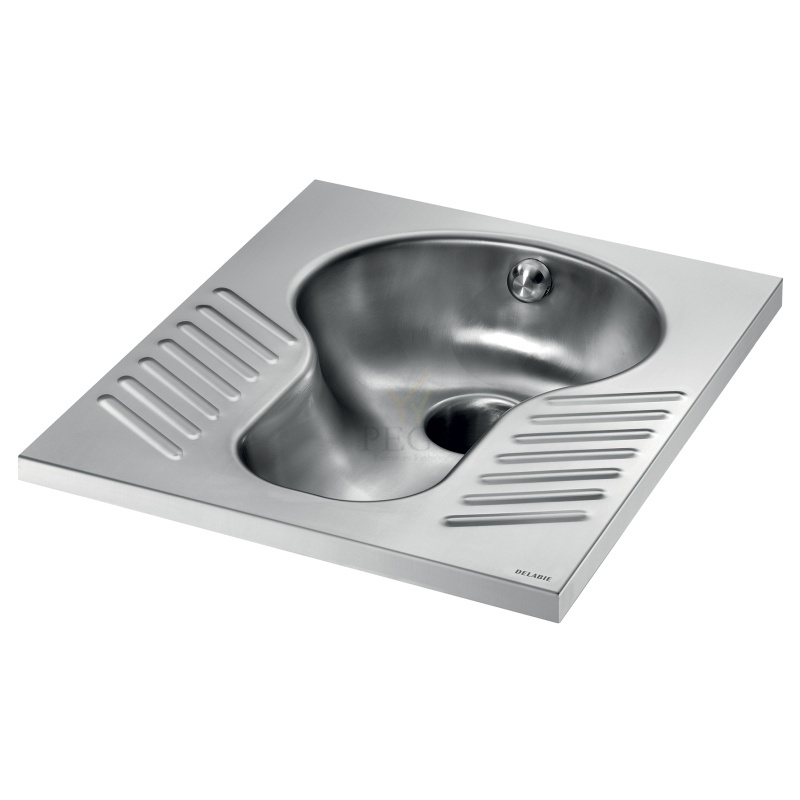

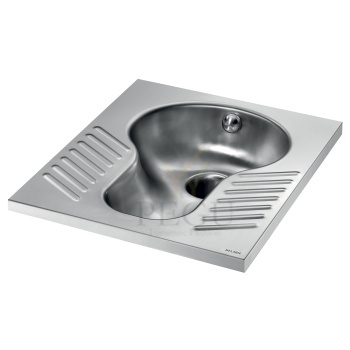

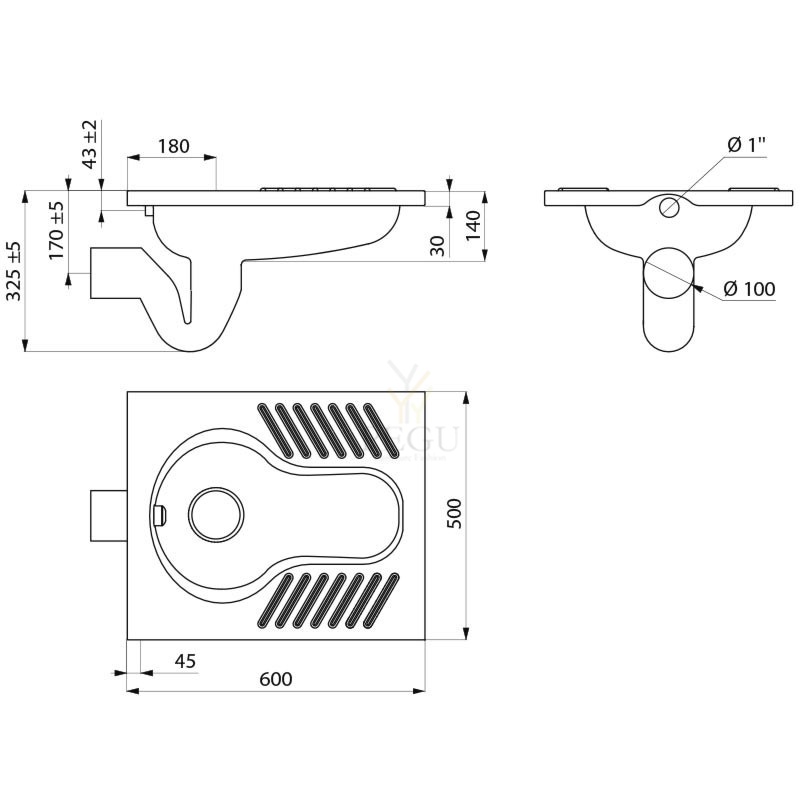

Delabie põranda sisene sifooniga WC SHA XS squart antivandaalne R/V teras AISI304

Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele, ilma el.adaptorita

	AUS 11 Pressure button-controlled shower for heat regulated water

AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.

Basic technical information
Water input:	G 1/2“
Water pressure:	1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow:	10 s – 42,5 min in mode 1
	0 s - 42,5 min in mode 2
Power supply:	12 V, 50 Hz
Power requirement:	6 VA
Source of power supplz:	ZAC 1/20 (max. 3× AUS 11)
	ZAC 1/50 (max. 8× AUS 11)
Weight:	2,0 kg

Requirements for setting up the construction
Water installation set up as per picture Set-up alcove 150 x 75 mm for installation casket Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC

Complete delivery
installation casket input and output bolting electromagnetic valve spherical valve covering metal plate with piezo button electronics

Made to order
SP 1 – shower arm with water flow of 9 l/min SP 2 – shower arm with water flow of 7 l/min SP 3 – shower arm with water flow of 7 l/min ZAC - source of power supply 12V, 50Hz

Figure

A -	water inlet G 1/2"
C -	electricity supply cable 12 V, 50 Hz
G -	water outlet into shower armG 1/2"

Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 , Tarneaeg: 3-4 nädalad , Viimistlus:

381,15 €

COMPACTO WC+valamu paremal põranda, antivandaalne R/V teras AISI304

R/V teras WC pott ja valamu

AISI304 paksus 1,5 mm

Kinnitus poltidega läbi seina

Loputus ühendus 1"

WC äravool 100mm

Valamu ärravool 32mm

NB! Vee mehhanismid on vaja tellida eraldi

Tootekood: PCOMP-TP , Tarneaeg: 6-7 nädalad , Viimistlus:

2976,00 €

Delabie KOMPACT TC WC+valamu sümmetriline põranda antivandaalne R/V teras AISI304

KOMPACT TC washbasin and wall-hung WC combination
Ref. 166500

Combination unit: washbasin and WC pan suspended centrallywith recessed toilet roll holder.
Service duct installation (through-the-wall).
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Central WC pan
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130005]

TECHNICAL FEATURES

KOMPACT TC washbasin and wall-hung WC combination
Ref. 166500

Height	1000mm
Length	615mm
Width	725mm
Thickness	2mm
Finish	304 polished satin stainless steel

Tootekood: DE-166500 , Tarneaeg: 4-6 nädalad , Viimistlus:

4240,39 €

Delabie KOMPACT Combi WC+valamu sümmetriline põranda antivandaalne R/V teras AISI304

KOMPACT washbasin and floor-standing WC combination
Ref. 160800

Combination unit: washbasin and floor-standing central WC panwith recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
WC pan central to the unit.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
[Formerly ref: 0610030008]

TECHNICAL FEATURES

KOMPACT washbasin and floor-standing WC combination
Ref. 160800

Height	1000mm
Length	735mm
Width	725mm
Thickness	2mm
Finish	304 polished satin stainless steel

Tootekood: DE-160800 , Tarneaeg: 4-6 nädalad , Viimistlus:

4240,39 €

Delabie süvistatav dual control electronic battery-operated WC ventiil RST

TEMPOMATIC dual control plate for WCs

Ref. 464006

TEMPOMATIC recessed, dual control, electronic valve for direct flush, kit 2/2:
Flush system without cistern: directly connected to pipework.
Battery-operated with CR123 6V Lithium batteries.
Satin finish stainless steel wall plate 186 x 186mm and chrome-plated metal button, with integrated electronics.
TEMPOMATIC F¾" flush valve is compatible with sea water, rain water and grey water.
Shock-resistant infrared presence detection sensor.
Detection delay is 10 seconds.
Voluntary activation (anti-blocking push-button) or automatically without contact when the user leaves.
Independent push-button: the flush will activate even if the power supply fails.
"Intelligent" automatic rinsing: flush volume adapts according to use - 3L "short" usage, 6L "long" usage - (can be adjusted to 2L/4L or 5L/9L).
3 programmes (rinsing volume can be set according to type of WC pan).
Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF) after the last use.
Base flow rate: 1L/sec at 1 bar dynamic pressure.
Suitable for rimless WC pans without flow rate regulation and suitable for people with reduced mobility.

Order with frame system references 564060DE or 564065DE, or with recessed housing 464PBOX.

TECHNICAL CHARACTERISTICS

TEMPOMATIC dual control plate for WCs

Ref. 464006

Supply	6V batteries
Connector	F¾"
Technology	Electronic and time flow
Length	186mm
Width	186mm
Finish	Satin stainless steel

Tootekood: DE-464006 , Tarneaeg: 14-21 päeva , Viimistlus:

838,52 €
