Delabie PREMIX 1 1/4" termostaadile, 2 x filtriga nurkventiile
Tootekoodid ja tehniline info on kättesaadavad projekti või spetsiaalse päringu korral.
Ekspert aitab valida sobivaima lahenduse nii koju kui objekti jaoks.
Soovitame jagada tootelehte, mitte ainult koodi – see välistab segaduse.
Küsi julgelt: info@pegu.ee
Ühik: kompl
Tarneaeg: 14-21päeva
Müüja: PEGU OÜ

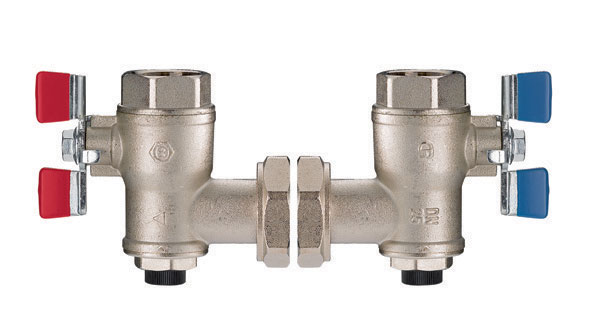

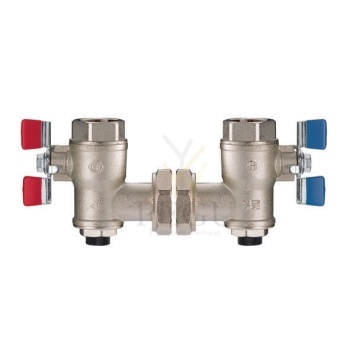

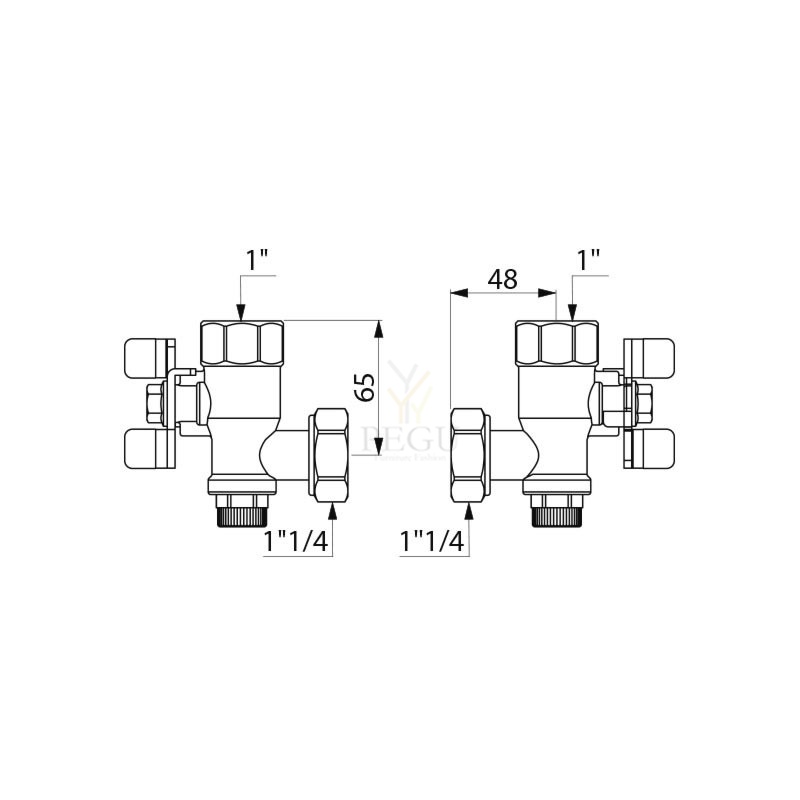

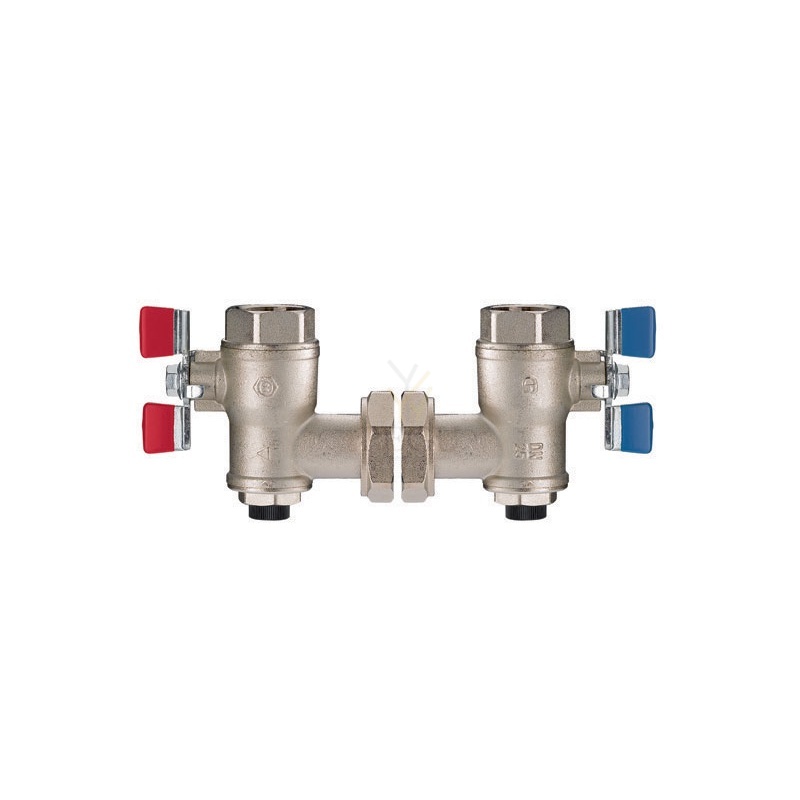

Angled isolating valve
Ref. 730804.2P
Ball valve with filter and testpoint (to connect pressureand temperature gauges).
Failid
> Working pressure :
1 to 5 bar
> Flow :
6 l/min with integrated flow limiter Anti-water-hammering device
Rotating shower head with anti-limescale spikes
> Flow time :
30 seconds (± 5 sec.)
> Hydraulic supply :
G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to use the adaptation kit under the reference 91026. On ALPA S® NF IB mixer tap with NF check valves
> Material :
Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers
> Functioning:
Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
Adjustable tamper-proof temperature limiter to prevent scalding
Patented anti-blocking "S" system preventing the water flows continuously
> Delivered with :
1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valves and 250 micron filters Fastening screws and instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
AFO 01.SC
drinking fountain with cooling designed to stand and to be attached to wall
AFO 01.SC is a drinking fountain with cooling designed to stand and to be attached to wall. User can select between uncooled water and water running through a flow cooler. The fountain is operated by means of two piezo-buttons – resistant solution. Facility keeper can set a time period after which the water flow automatically stops.
The product contains a flow cooler. It is not a design with cooled tank only where – after the pre-cooled amount of water is pumped out – the user has to wait for the next charge to be cooled.
Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.
ttles
Automatic drinking fountain (with a sensor) can be supplied per order.
AFO 01.S is manufactured from the stainless steel AISI 304.
Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
Package contents
- Stainless housing with cone
- Electronics and control piezo-buttons
- Water supply and electromagnetic valves
- Flow cooler
- Flexible hose outflow
- Fixing and connecting material
| dimensions | 330 x 900 x 365 mm |
| water outlet | d = 40 mm |
| water inlet | G 1/2" |
| water pressure | 0,2 – 0,6 MPa, recommended 0,3 MPa |
| power supply | 230 V, 50 Hz |
| power input | 820 W |
| weight | 24 kg |
- Set up water outlet d = 40 mm
- Set up water inlet G 1/2"
- Electric socket 230 V, or electric cable CYKY 3C x 1,5
Joogifontään veejahutussüsteemiga, pudeli taitmisega põrand/sein piezo nupp, R/V teras AISI304 230V/50Hz
AFO 01.SCL
drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall
AFO 01.SCL is a drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall. User can select between uncooled water and water running through a flow cooler. Uncooled water is used for bottle filling as a standard – can be changed. Start/stop control by piezo-buttons – resistant solution. Facility keeper can set a time period after which the water flow automatically stops.
The product contains a flow cooler. It is not a design with cooled tank only where – after the pre-cooled amount of water is pumped out – the user has to wait for the next charge to be cooled.
Water supply is provided by a flexible hose, trap comprises an elastic flexible couple. Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.
Automatic drinking fountain (with a sensor) can be supplied per order.
AFO 01.SCL is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
Package contents
- Stainless housing with cone
- Electronics and control piezo-buttons
- Water supply and electromagnetic valves
- Flow cooler
- Flexible hose outflow
- Fixing and connecting material
| dimensions | 330 x 900 x 365 mm |
| water outlet | d = 40 mm |
| water inlet | G 1/2" |
| water pressure | 0,2 – 0,6 MPa, recommended 0,3 MPa |
| power supply | 230 V, 50 Hz |
| power input | 830 W |
| weight | 25 kg |
- Set up water outlet d = 40 mm
- Set up water inlet G 1/2"
- Electric socket 230 V, or set up electric cable CYKY 3C x 1,5
