Delabie segisti isesulguv TEMPOMIX F3/8" 7 sek kroom

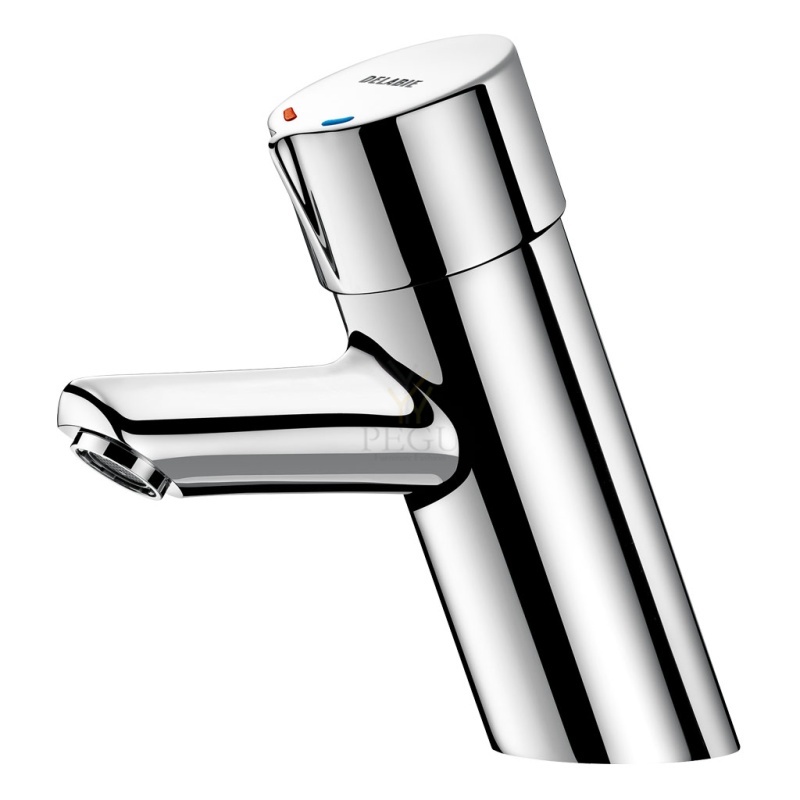

TEMPOMIX time flow mixer
Ref. 795000
Deck-mounted single control time flow basin mixer:
Soft-touch operation.
Temperature control and operation via the push-button.
Time flow ~7 seconds.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 - 6 lpm.
Scale-resistant flow straightener.
Chrome-plated solid brass body.
Ergonomic chrome-plated metal push-button.
PEX flexibles with stopcocks F3/8", filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Adjustable maximum temperature limiter.
Failid
TECHNICAL FEATURES
TEMPOMIX time flow mixer
Ref. 795000

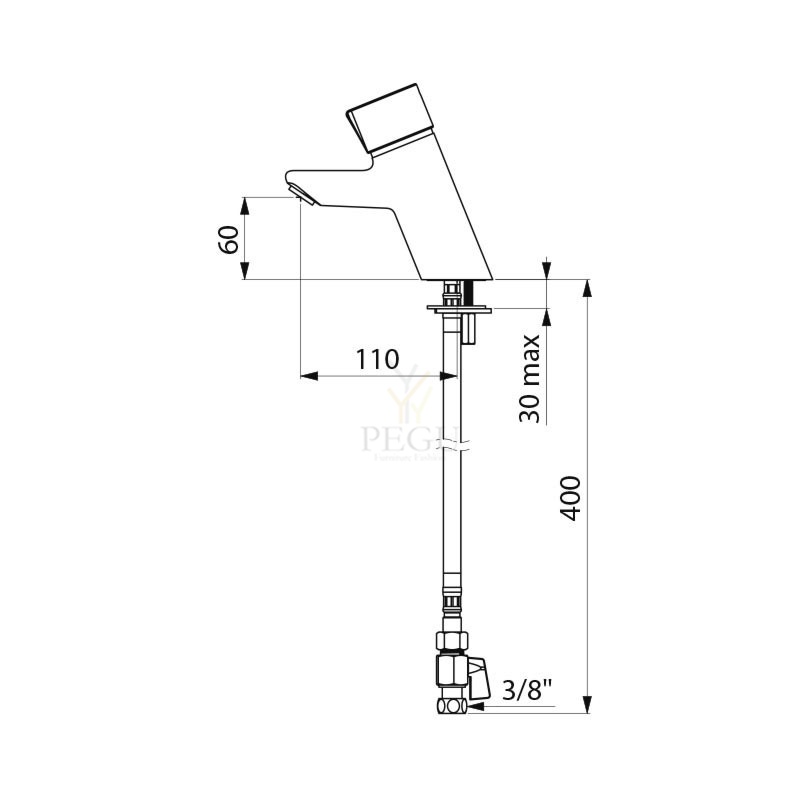

Connector | F3/8" |
---|---|
Technology | Time flow |
Drop height | 60mm |
Spout length | 110mm |
Flow rate | 3 lpm |
veesäästu funktsioon Eco-Save
5 pihustivõimalust
Kummiaeraator-lihtne puhastada
WC isesulguv mehhanism
Kontaktivaba veekraan+seebi+desinfektandi dosaator MWSD bent
Multifunctional touchless faucet, water and soap in one unit, countertop integration.
Simple Touchless operation, the untouchable™ makes use of an elegant infrared interface, operated through a simple process: select above, receive under. By swiping above the untouchable™ - in any direction - the dispenser cycles through the available liquids. When a desired liquid is selected, the hand is simply placed under the faucet. Compatible with 1,000 ml standard Euro bottles, suitable for low-viscosity soaps and lotions, refillable using bottles with wide neck, dosage (depending on viscosity): soap approx. 2 ml, value can be changed on request before delivery
Stainless steel, ground | ||
Water | ||
Refillable | ||
1000 ml | ||
Liquid soaps | ||
Touchless |
> Working pressure : 1 to 5 bar
> Flow : 6 l/min with integrated flow limiter Anti-water-hammering device Hand-held shower on rail with chrome plated slide
> Flow time : 30 seconds (± 5 sec.)
> Hydraulic supply : G 1/2"(15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026. On P 50 tap NF II and thermostatic mixer tap EN 1111 (NF check valves)
> Material : Anodised aluminum profile (2.5mm thickness) Aluminum removable valve plate, peinted RAL 7005 High resistance RAL 7005 coloured ABS casings
> Functioning: Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance : Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security : Anti-scald system: flow is immediately stopped if the cold water is cut off Maximum delivered temperature : pre-fixed at 38°
> Delivered with : 1/2" hoses with revolving nuts MM 1/2" (15x21) straight stop valve and 250 micron filters Fastening screw and instruction manual > Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
Dushipaneel segistiga PRESTOTEM2 ALPA, isesulguv - 30 sek töötsükkel
> Working pressure : 1 to 5 bar
