Water inlet | G 1/2" |
Water pressure | 0,2 – 0,6 MPa (recommended 0,3 MPa) |
Outlet | d = 40 mm |
Inner dimension of the fountain | d = 245 mm |
Weight | 4 kg |
Proovi kupongikoodi PEGU-KEVAD ! Vali toode täishinnaga, lisa see ostukorvi ja sisesta kupongikood ostu sooritamisel! Kupongikoodi kasutamise aeg on piiratud!
Lugupeetud PEGU.EE veebipoes külastajad!
Tere tulemast meie internetipoes! Me ei ole lihtsalt iseteeninduse kassa. Kui teil on vaja nõu või abi toote valimisel, võtke meiega julgesti ühendust kas e-mailiga või messendzeriga, telefoni teel. Oleme alati valmis pakkuma teile personaalset teenindust! Täname külastuse eest!
PEGU.EE meeskond

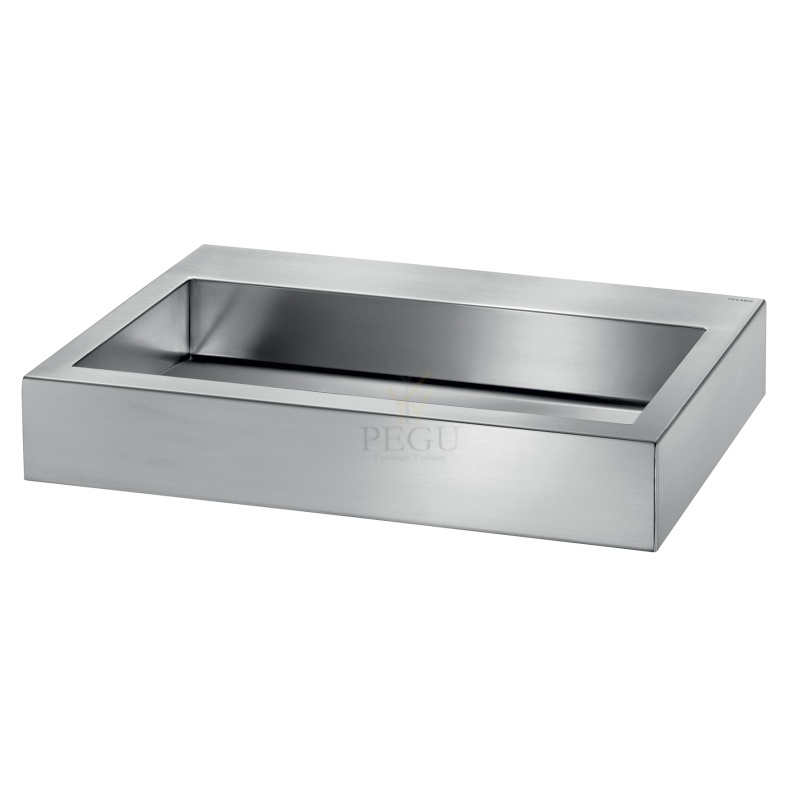

AQUEDUTO wall-mounted washbasin
Ref. 120150
Wall-mounted washbasin, 700x440mm.
Simple and timeless design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
.Stainless steel thickness: 1.5mm
Rounded edges prevent injury.
With no tap hole.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 12kg.
2-ne Valamu jalaga 1200x700, kõrgus 850mm , R/V teras
Нержавеющая большегрузная двойная мойка на ножках, 1200 x 700 x 850 мм
Арт. № | 93160 |
Название | SLUN 16 |
CANAL wall-mounted wash trough
Ref. 120300
Wall-mounted wash trough for 4 posts - 2,400mm
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm for the bowl, 1.5mm for surroundand fixing brackets.
Easy to install: no joint concealers to install, light wash trough.
Drainage on the right.
With no tap hole.
Supplied with 1 ½" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14296.
Weight: 20kg.
Possible to add a bacteriostatic 304 stainless steel splashback (ref. 0011800007).
Height | 250mm |
---|---|
Length | 2400mm |
Width | 400mm |
Thickness | 1mm (basin) et 1.5mm (edge and fixing brackets) |
Finish | 304 polished satin stainless steel |
AFO 01 is a stainless steel wall-mounted drinking fountain of modern design with a manual press valve that allows its easy use. The water flows only when the valve is pressed and then there is a certain adjusted time to rinse out the nozzle.
The water inlet is fitted with a flexible hose, the siphon is made from a stretchy, flexible connector. The flexible finish of the water inlet and outlet allows the variable and problem-free connection of the fountain.
AFO 01 stainless steel fountain is suitable mainly for schools, medical facilities and spa resorts, and is utilizable outdoors.
AFO 01 is made of stainless steel AISI 304.
AFO 01.CL is made of stainless steel AISI 316 and is suitable into the areas with higher concentration of chlorine (e.g. swimming pools).
Sensor-controlled fountain possible made to order.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
Water inlet | G 1/2" |
Water pressure | 0,2 – 0,6 MPa (recommended 0,3 MPa) |
Outlet | d = 40 mm |
Inner dimension of the fountain | d = 245 mm |
Weight | 4 kg |
AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.
Fountain is made by welding all components together.
Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).
Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).
St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.
The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.
water inlet | G 1/2" |
water pressure | 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL) |
2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL) | |
outlet | d = 40 mm |
bowl inner dimension | d = 245 mm |
weigth | 4 kg |
suppply | 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL) |
6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL) | |
power supply | ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL) |
