Delabie valamu BOB TC roostevaba teras satiin
Tootekoodid ja tehniline info on kättesaadavad projekti või spetsiaalse päringu korral.
Ekspert aitab valida sobivaima lahenduse nii koju kui objekti jaoks.
Soovitame jagada tootelehte, mitte ainult koodi – see välistab segaduse.
Küsi julgelt: info@pegu.ee
Ühik: tk
Tarneaeg: 14-21 päeva
Müüja: PEGU OÜ
DESCRIPTION

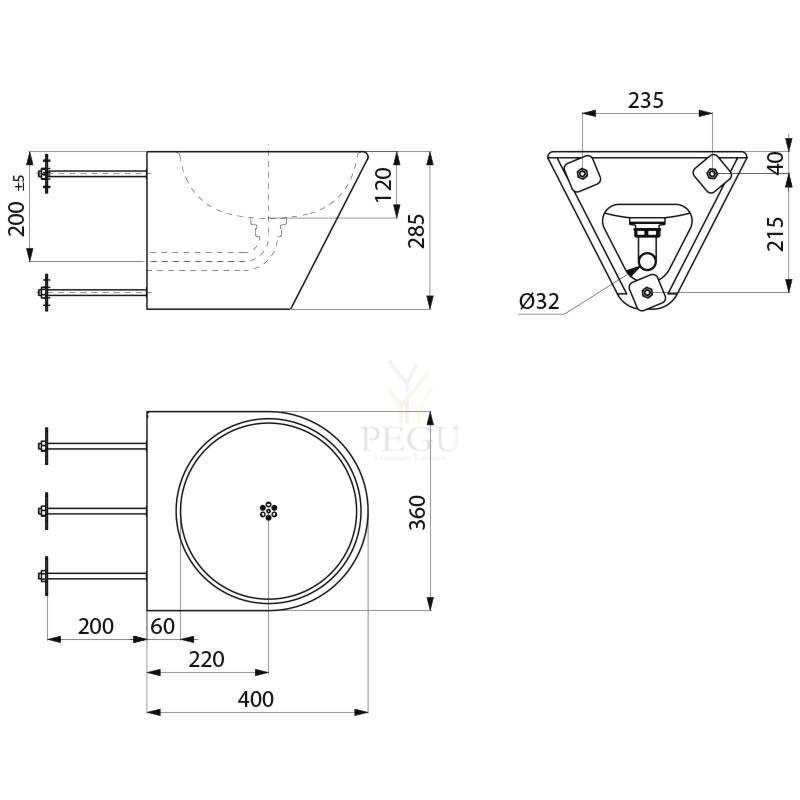

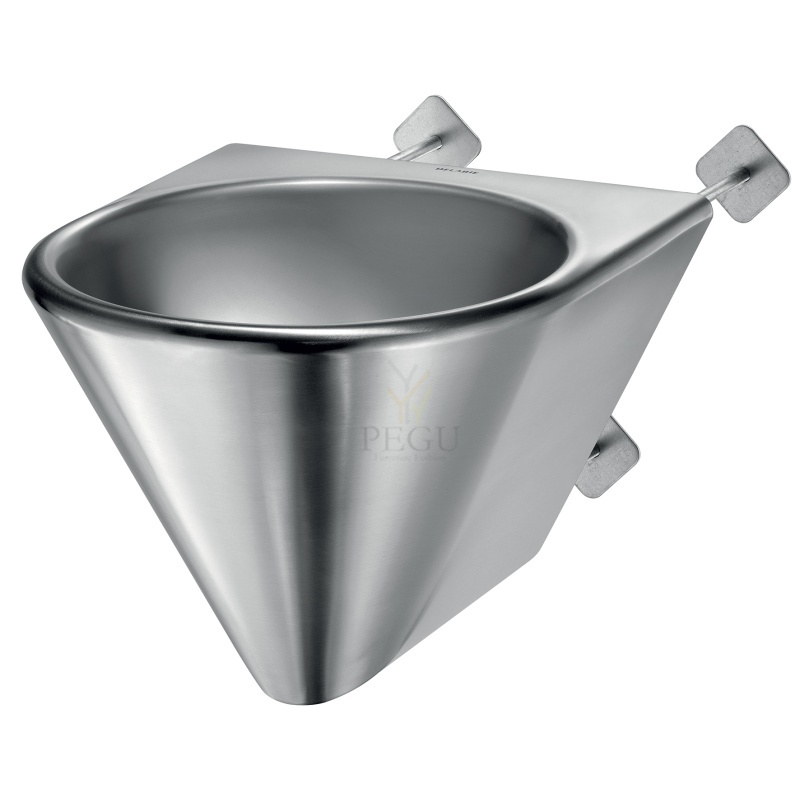

BOB TC washbasin
Ref. 160130
Wall-mounted washbasin with through-the-wallinstallation for service ducts.
Basin internal diameter: 310mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Vandal-resistant: shrouded basin.
200mm threaded rod can be cut to size (other lengths are available on request).
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standardEN 14688.
Weight: 5.5kg.
Joogifontaan Portinox FP-002 kinnitus seina, põrandani
DESCRIPTION TEMPOFLUX 1 direct flush valve - Ref. 761200
Cross wall time kit for direct flush: Cross wall control, can be cut-to-size.
Soft-touch operation. Time flow ~7 sec.
Vacuum breaker.
Integrated stopcock and flow/volume rate adjuster.
Solid brass body and chrome-plated push-button.
In-line inlet M3/4".
Connection washer Ø 32/55mm.
For walls ≤ 200mm, without tube.
| Connector | 3/4" |
|---|---|
| Length | 200mm |
Intra seinale kinniatav majandusvalamu VK 480x385x190mm, R/V teras
Wall hung utility sink in stainless steel. Supplied with fixing brackets.
FP-001 Drinking fountain for foor installation made of 1mm thick stainless steel.
Supplied with a push button water bubbler.
Basin polished fnish Cover grinding fnish
* Customized height for children available. Made of Stainless Steel AISI 304 (1.4301)
Joogifontään seinale sensoriga R/V teras AISI304 6V(4x1.5V)
AFO 01.Yst. steel sensor controlled drinking fountain
AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.
Fountain is made by welding all components together.
Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).
Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).
St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.
The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.
Package contents
- st. steel drinking fountain
- nozzle
- sensor and electronic
- electromagnetic valve
- connecting flexible hose
- corner valve with filters
- siphon
- mounting material
| water inlet | G 1/2" |
| water pressure | 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL) |
| 2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL) | |
| outlet | d = 40 mm |
| bowl inner dimension | d = 245 mm |
| weigth | 4 kg |
| suppply | 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL) |
| 6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL) | |
| power supply | ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL) |
