Delabie valamu CANAL pesurenn 1200mm roostevaba teras satiin

Tootekood: DE-120250
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
762,50 €
Kuumakse alates: 65,52 €
Kogus: - +

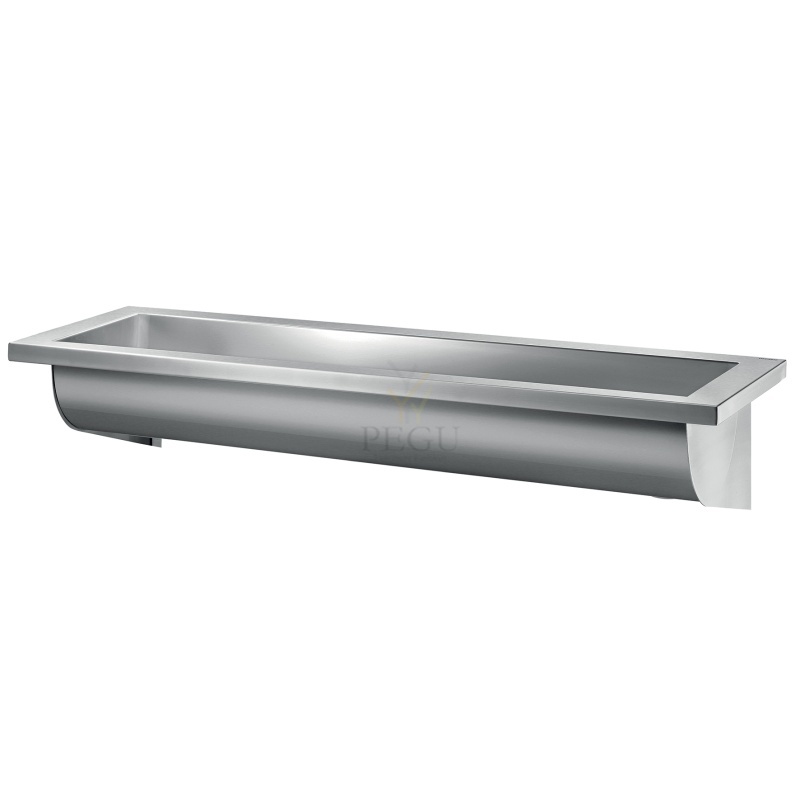

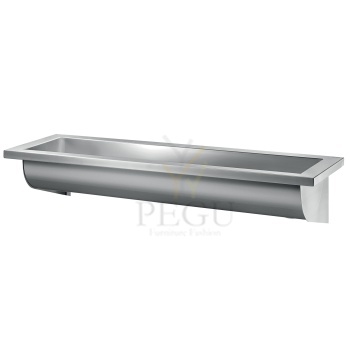

CANAL wall-mounted wash trough
Ref. 120250

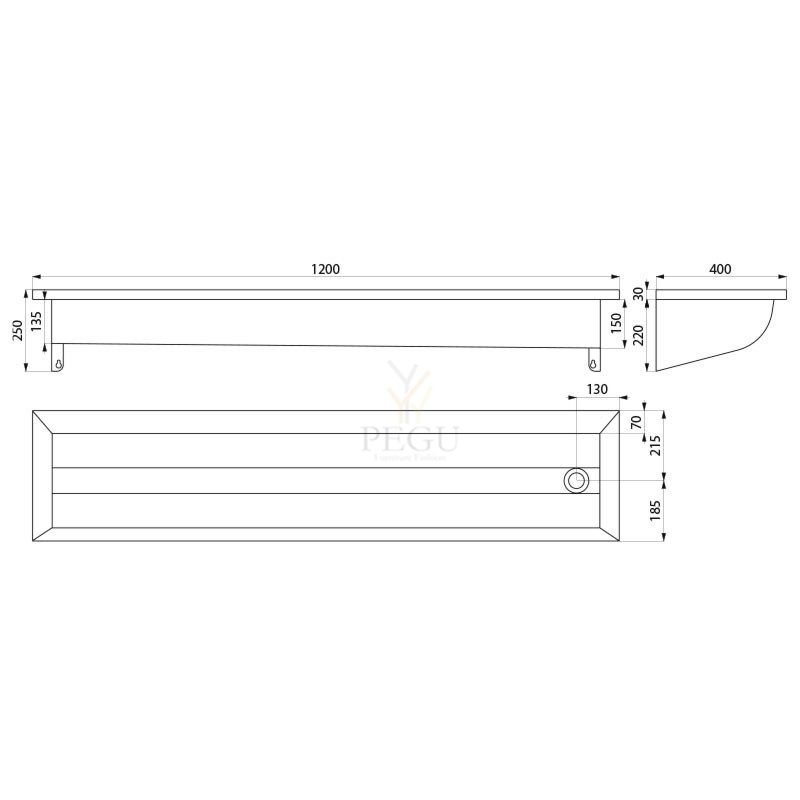

Wall-mounted wash trough for 2 services L. 1,200mm
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm for the bowl, 1.5mm for surround and fixing brackets.
Easy to install: no joint concealers to install, light wash trough.
Drainage on the right.
No tap hole.
Supplied with 1½" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14296.
Weight: 8.4kg.
Possible to add a bacteriostatic 304 stainless steel splashback (ref. 100250).
