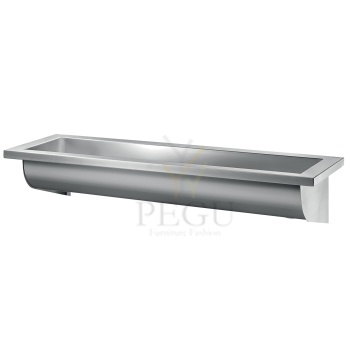

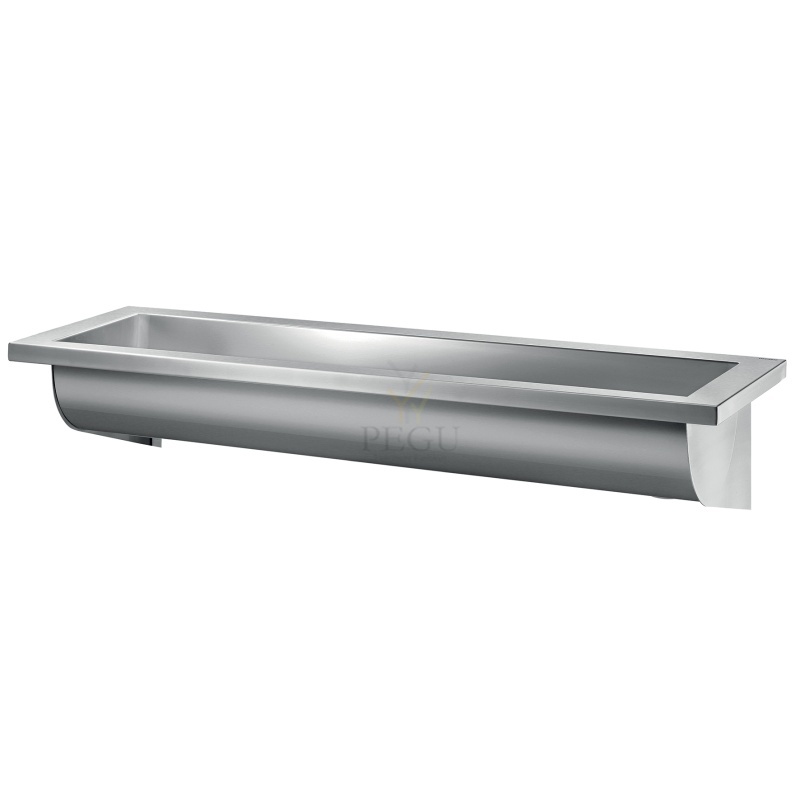

Delabie valamu CANAL pesurenn 3000mm roostevaba teras satiin

Seinakraan, vooliku otsaga . Poleeritud messing

Seinakraan, vooliku otsaga

Poleeritud messing

1/2"

Tootekood: IDR-0151G12 , Tarneaeg: 7 päeva , Viimistlus:

50,82 €

Valamu Fraju roostevaba teras , ilma ülejooksuta

Laos

FRAJU wall-mounted washbasin
Ref. 120430

Wall-mounted washbasin, 540x480mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm for the bowl and 1.5mm for surround.
Rounded edges prevent injury.
Without tap hole.
Supplied with 1¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 4.65kg.

Tootekood: DE-120430 , Tarneaeg: 1-2 nädalad , Viimistlus:

613,90 €

Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele, ilma el.adaptorita

	AUS 11 Pressure button-controlled shower for heat regulated water

AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.

Basic technical information
Water input:	G 1/2“
Water pressure:	1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow:	10 s – 42,5 min in mode 1
	0 s - 42,5 min in mode 2
Power supply:	12 V, 50 Hz
Power requirement:	6 VA
Source of power supplz:	ZAC 1/20 (max. 3× AUS 11)
	ZAC 1/50 (max. 8× AUS 11)
Weight:	2,0 kg

Requirements for setting up the construction
Water installation set up as per picture Set-up alcove 150 x 75 mm for installation casket Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC

Complete delivery
installation casket input and output bolting electromagnetic valve spherical valve covering metal plate with piezo button electronics

Made to order
SP 1 – shower arm with water flow of 9 l/min SP 2 – shower arm with water flow of 7 l/min SP 3 – shower arm with water flow of 7 l/min ZAC - source of power supply 12V, 50Hz

Figure

A -	water inlet G 1/2"
C -	electricity supply cable 12 V, 50 Hz
G -	water outlet into shower armG 1/2"

Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 , Tarneaeg: 3-4 nädalad , Viimistlus:

381,15 €

Joogifontään seinale mehaaniline R/V teras AISI316 (basseinid)

AFO 01 stainless steel wall-mounted drinking fountain

AFO 01 is a stainless steel wall-mounted drinking fountain of modern design with a manual press valve that allows its easy use. The water flows only when the valve is pressed and then there is a certain adjusted time to rinse out the nozzle.
The water inlet is fitted with a flexible hose, the siphon is made from a stretchy, flexible connector. The flexible finish of the water inlet and outlet allows the variable and problem-free connection of the fountain.
AFO 01 stainless steel fountain is suitable mainly for schools, medical facilities and spa resorts, and is utilizable outdoors.
AFO 01 is made of stainless steel AISI 304.
AFO 01.CL is made of stainless steel AISI 316 and is suitable into the areas with higher concentration of chlorine (e.g. swimming pools).
Sensor-controlled fountain possible made to order.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Package contents

stainless steel sink with casing
press valve
corner valve with filter
flexible hose siphon
fixing bar
connecting hoses
anchoring material

Water inlet	G 1/2"
Water pressure	0,2 – 0,6 MPa (recommended 0,3 MPa)
Outlet	d = 40 mm
Inner dimension of the fountain	d = 245 mm
Weight	4 kg

Tootekood: AZP-AF001.CL , Tarneaeg: 3-4 nädala , Viimistlus:

1092,62 €

Joogifontään veejahutussüsteemiga põranda/sein piezo nupp, R/V teras AISI304 230V/50Hz

AFO 01.SC

drinking fountain with cooling designed to stand and to be attached to wall

AFO 01.SC is a drinking fountain with cooling designed to stand and to be attached to wall. User can select between uncooled water and water running through a flow cooler. The fountain is operated by means of two piezo-buttons – resistant solution. Facility keeper can set a time period after which the water flow automatically stops.
The product contains a flow cooler. It is not a design with cooled tank only where – after the pre-cooled amount of water is pumped out – the user has to wait for the next charge to be cooled.
Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.
ttles

Automatic drinking fountain (with a sensor) can be supplied per order.

AFO 01.S is manufactured from the stainless steel AISI 304.
Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Package contents

Stainless housing with cone
Electronics and control piezo-buttons
Water supply and electromagnetic valves
Flow cooler
Flexible hose outflow
Fixing and connecting material

dimensions	330 x 900 x 365 mm
water outlet	d = 40 mm
water inlet	G 1/2"
water pressure	0,2 – 0,6 MPa, recommended 0,3 MPa
power supply	230 V, 50 Hz
power input	820 W
weight	24 kg

Set up water outlet d = 40 mm
Set up water inlet G 1/2"
Electric socket 230 V, or electric cable CYKY 3C x 1,5

Tootekood: AZP-AFO01.SC , Tarneaeg: 3-4 nädala , Viimistlus:

5245,61 €
