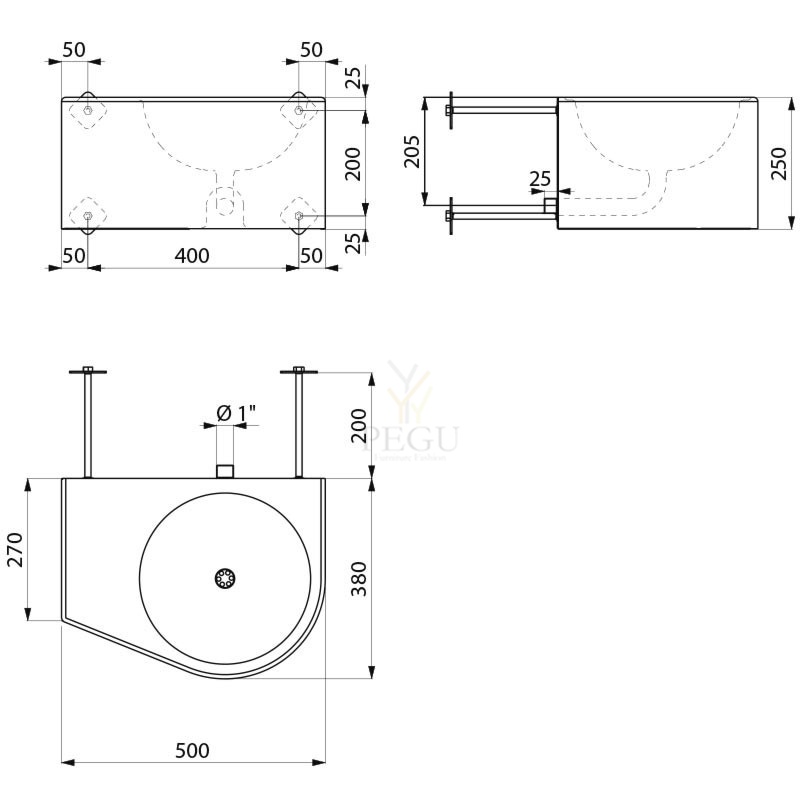

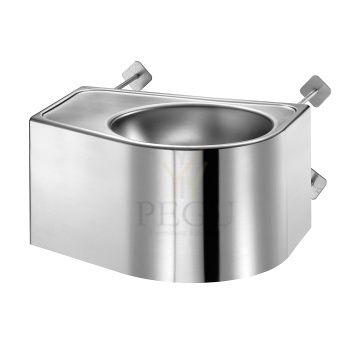

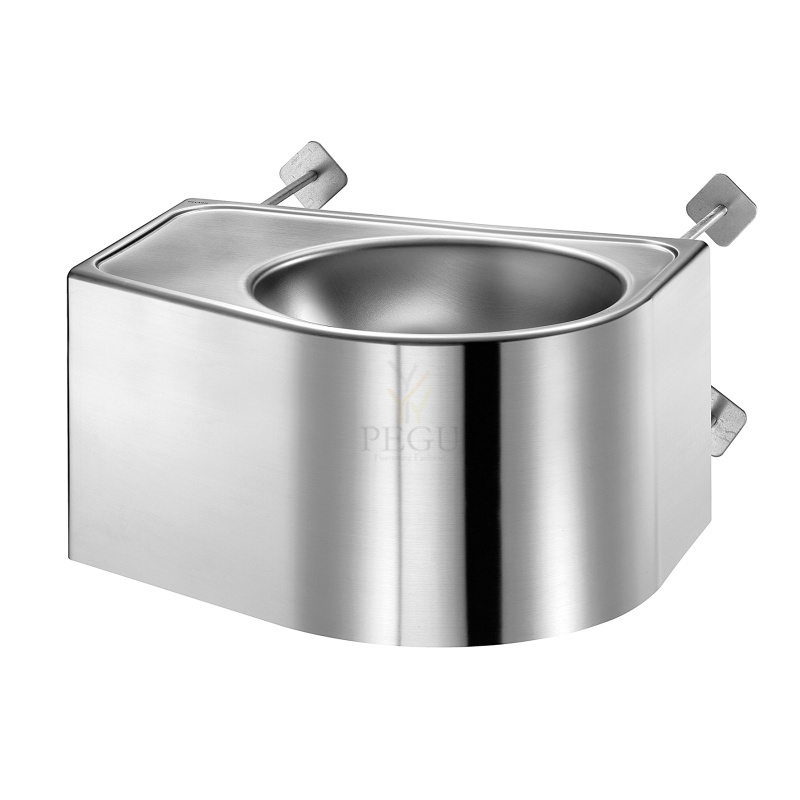

Delabie valamu DUO S TC R roostevaba teras satiin 160360

Roostavaba teras veetrapp, D75 mm vertikaalne, 150x150mm AZP Brno PV 01.D.75.P

R/V teras veetrapp, D75 mm vertikaalne, 150x150mm

On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm

	PV 01 stainless steel floor trap

PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!

Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable

Basic technical information
Minimum inner diameter:	70 mm
Diameter of connecting sewerage pipe:	75 mm
Water flow:	min. 50 lts / min
Loading class:	K3
Weight:	2,2 kg

Complete delivery
Trap body Grid with braz cover Hook to pull up the grid

Requirements for setting up the construction
Completed sewerage drains terminated by DN 75 coupling Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P , Tarneaeg: 3-4 nädala , Viimistlus:

429,93 €

Automatne kummikute pesur harjaga, 220V, 50Hz roostevaba teras AZP Brno RMO 02

RMO 02

automatic washing system for wellingtons

RMO 02 is a stainless steel sensor-controlled washing system with rotary brushes for wellingtons. A built-in photocell sensor reacts to the user holding the handrail. The electromagnetic valve switches on, opens the water inlet, the brushes start to rotate and the circular jet injection of the disinfecting lotion is carried out. After placing the foot with the wellington on the grid in between the rotary brushes, the sole is cleaned by means of the horizontal brush and the leg portion is cleaned by means of two vertical brushes. The system is automatically switched off when the user releases the handrail. There is a CENTRAL/STOP button on the handrail for emergency switch-off.
The washing system is intended for free standing installation on the floor. Imperfections of the floor are balanced out by four adjustable hobs. The construction of the system allows the outlet to be placed above the floor level.
The RMO 02 washing system, with its easy maintenance, is mainly intended for operations where quick removal of mechanical dirt from wellingtons is required.
The canister with disinfecting solution is not part of the delivery.

Package contents

body of the washing machine
removable grid
electronics with photocell
three rotary brushes
jerican holder
priming hose
adjustable supporting legs
central stop button

Radius of sensor	0,7 m
Water inlet	G 1/2“
Water pressure	0,1 – 1,0 MPa
Outlet	G 6/4”
Electricity protection	IP 55
Power supply	230 V, 50 Hz
Power requirement	370 W
Water temperature	max. 42°C
Weight	95 kg

Set up water inlet as per picture
Set up outlet G 6/4” via effluvial cover
Set up cable for power supply – 230 V, 50 Hz

Tootekood: AZP-RMO 02 , Tarneaeg: 3-5 nädalat , Viimistlus:

16560,10 €

Külmumiskindel AUTOMAATJOOTJA Hobustele ja Lehmadele D80CM FROSTLINE A382

DRINKING SYSTEM

Frost-free drinking system for cattle and horses
Fresh and clean water for the animals all year round
Without wiring or electricity
A minimum of maintenance
No concern about filling the drinking vessels
No concern about cleaning the drinking vessels

Automaatjootjad sobivad kasutamiseks nii karjamaal kui ka tallides ning nende läheduses asuvates joogikohtades.

Jootjaid on lihtne kasutada ning hobused saavad kiiresti aru, et mugavam on vee juurdevoolu avamiseks vajutada klapile

mitte nina otsaga vaid selle ülaosaga. Kui koon (mokad) on joomiseks vabad, joobki hobune loomulikul viisil vee pindmiselt

kihilt. Seetõttu olemegi valinud jooginõuks lai ja sügav kauss, et tekiks joomiseks mugav veepind.

Töötamise põhimõte

Tõusutoru on varustatud isetühjeneva 3-tee

ventiiliga, mis on paigaldatud kaevu, mis omakorda

on süvistatud pinnasesse.

Kui jootjat ei kasutata on veest tühi nii ventiil kui

ka tõustoru, milles olev vesi võiks muidu külmuda.

Nii jootja ventiil ja tõusutoru on külmumiskindlad nii

kaua kuni on külmumiskindel ka vee toitetorustik.

Tootekood: FL-A382 , Tarneaeg: 14-21 päeva , Viimistlus:

1209,00 €

Intra seinale kinniatav majandusvalamu VK 655x505x250mm, R/V teras VK60STD

Intra seinale kinniatav majandusvalamu VK 655x505x250mm, R/V teras

VK60STD

Wall hung utility sink in stainless steel. Supplied with fixing brackets.

Tootekood: I-VK60STD , Tarneaeg: 14-21 päeva , Viimistlus:

434,00 €

Valamu antivandaalne komplekt 1-200mm seinale 31660

Valamu antivandaalne komplekt 1-200mm seinale

31660

> Working pressure : 1 to 5 bar

> Flow : 6 l/min at 3 bar - 4-position flow adjustment device Anti-water-hammering design

> Flow time : 15 seconds (± 5 sec.)

> Hydraulic supply : In-line water inlet M G 1/2" Inlet and outlet Cold water

> Thermal resistance : Resistant to a temperature of 75°C for 30 minute thermal shock

> Security : Patented anti-blocking "S" system to avoid the water to flow continuously

> Delivered with : 1 Cross-partition control (1 to 200 mm thick) 1 Short wall spout (Non-rotating fixing) 87 mm 1 Closing tap with S anti-blocking system 1 stop valve M 1/2" (15x21) / M 1/2" (15x21) with quick couplings (12x14 mm) Instruction manual

> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12156 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 922

Tootekood: P31660 , Tarneaeg: 6-7 nädalad , Viimistlus:

332,36 €
