Delabie valamu SXS roostevaba teras IR segistiga poleeritud

Tootekood: DE-18431015
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
1152,00 €
Kogus: - +
   - või -

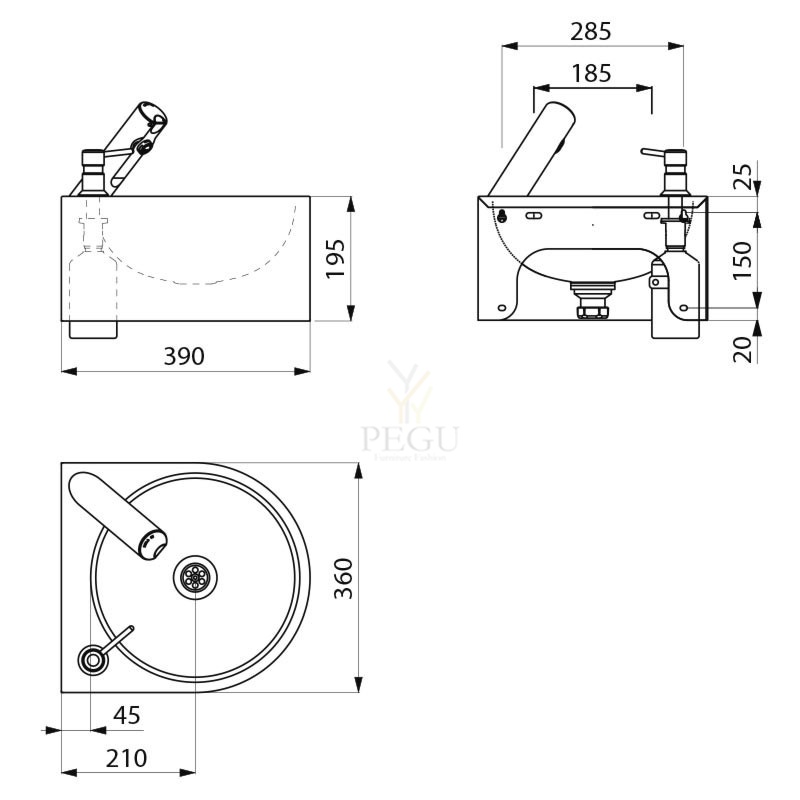

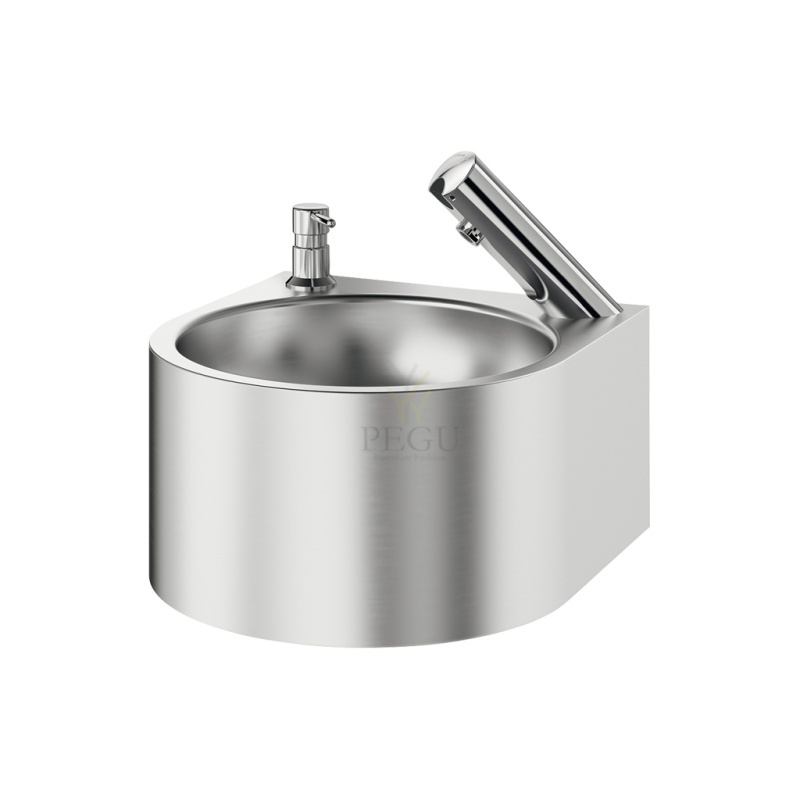

Wall-mounted SXS electronic hand washbasin WRAS
Ref. 18431015

Wall-mounted hand washbasin with electronic control.
Bacteriostatic 304 stainless steel.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Without splashback.
Supplied with WRAS approved electronic tap with integrated battery and solenoid valve, a TMV3 and WRAS approved thermostatic mixing valve and a chrome-plated brass soap-dispenser.
1¼" waste included. Without overflow.
Water savings: flow rate pre-set at 3 lpm.
Maximum hygiene: no manual contact with tap, reduced stagnation solenoid valve, duty flush prevents bacterial development.
Supplied with fixings.
CE marked. Complies with European standard EN 14688.
Weight: 4.1kg.

Failid

Sarnased tooted

FRAJU wall-mounted washbasin
Ref. 120430

Wall-mounted washbasin, 540x480mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm for the bowl and 1.5mm for surround.
Rounded edges prevent injury.
Without tap hole.
Supplied with 1¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 4.65kg.

Tootekood: DE-120430 ,   Tarneaeg: 1-2 nädalad
465,00 €

Pissuaari renn 1800 mm

Tootekood: PURM-1800 ,   Tarneaeg: 3-4 nädalad
1356,00 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Tootekood: AZP-ZAC 1-20 ,   Tarneaeg: 3-4 nädalad
90,00 €

Portinox WC pott loputuskastiga, ja istmega

Tootekood: PINP-655-OVC-TB-P+PWC Mahagon ,   Tarneaeg: 8 nädalad
1467,00 € (10%)
1630,00 €

1092х383х80 мм

Tootekood: PURC-SEP ,   Tarneaeg: 14-30 päeva
481,00 €
