Tootegrupid
jpg_184310_1.jpg Zoom

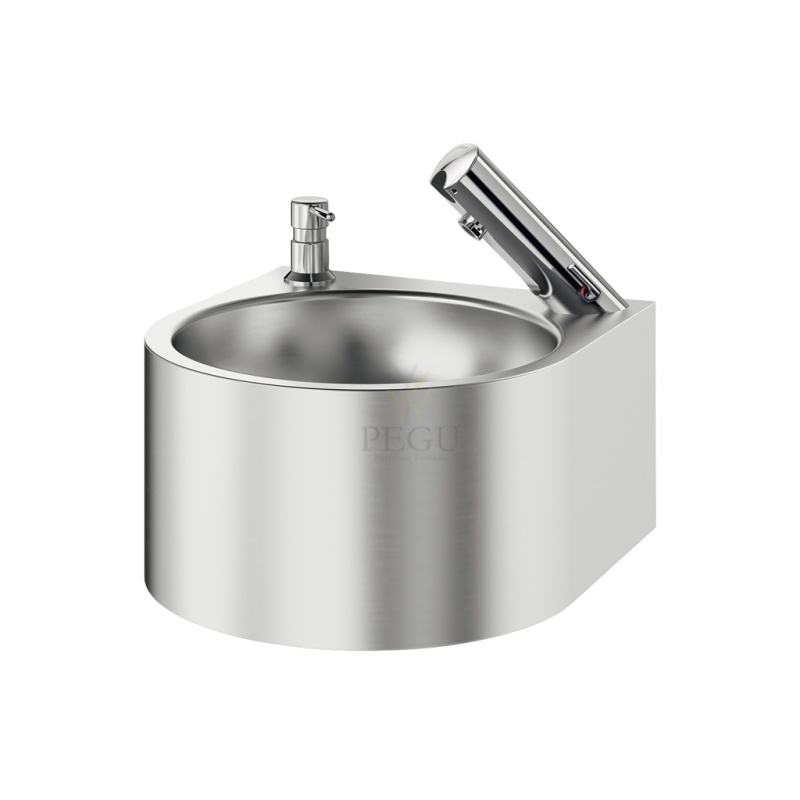

Delabie valamu SXS roostevaba teras IR segistiga satiin

Tootekood: DE-184310
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
1159,00 €
Kuumakse alates: 98,52 €
Kogus: - +
   - või -

Wall-mounted SXS electronic hand washbasin
Ref. 184310

Wall-mounted hand washbasin with electronic control.
Bacteriostatic 304 stainless steel.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Without splashback.
Supplied with battery-operated electronic mixer with integrated battery and solenoid valve, and chrome-plated brass soap-dispenser.
1¼" waste included. Without overflow.
Water savings: flow rate pre-set at 3 lpm.
Maximum hygiene: no manual contact with tap, reduced stagnation solenoid valve, duty flush prevents bacterial development.
Supplied with fixings.
CE marked. Complies with European standard EN 14688.
Weight: 4.1kg.

Failid

Sarnased tooted

Intra GUB2 R/V teras koristaja valamu, ämberresti ja pritsmisplekiga

Valamu R/V terasest

Garaazi/koristusruumi jaoks

Tootekood: I-GUB2 ,   Tarneaeg: 7-14 päeva
355,00 €
Tootekood: 461450 ,   Tarneaeg: 7-14 päeva
138,70 € (5%)
146,00 €

PRODUCT DESCRIPTION

• Winner of a Red Dot Design Award!

• Holds approx. 9,5 dl liquid soap (= 800-950 doses).

• Battery-operated. Connection to power supply via a transformer.

• An intelligent sensor automatically sets the best sensor range.

• LED light indicates when dispenser is in use.

• Comes in trendy matt black and classic white as standard.

• Also available in all RAL colours and coated with different prints.

• Top plate in 6 optional standard designs

• 2-year warranty.



SPECIFICATIONS
Product number: 3050 / EAN no. 5-709818-030500
Technical data:
Touch-free soap dispenser for liquid soap/disinfectant. White-painted steel housing (RAL 9003, gloss 60). Equipped with top plate. Capacity: 9,5 dl. Battery-operated.
Dimensions H: 330 mm, W: 139 mm, D: 127 mm
Net Weight: 2.3 kg
Tootekood: DAN3050 96 ,   Tarneaeg: 14-21 päeva
494,00 €
Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 ,   Tarneaeg: 3-4 nädalad
375,00 €

SENSOR - LIQUID SOAP DISPENSER WP 208E

148 x 448 x 120 mm
950 ml bottle

  • Sensor liquid soap dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
  • All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed. Further available surfaces: see below.
  • With EWAR® eModule touch-free operated soap pump.
  • Designed for standard 950 ml disposable bottles of liquid soap or hand lotion.
  • Also refillable with large container using the plug-in tank as an option.
  • Inspection slot to indicate fill level.
  • Accessible for refilling through lockable, removable front panel with fall protection.
  • Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
  • eModule battery-powered with two 1.5 V Baby/LR14 batteries.
    Power supply available as an option.
  • Wear parts and front panel can be replaced as modules.
  • Installation dimensions: 150 x 450 x 110 mm
  • Mounting: With four screws in wall opening through fixing holes in the side walls.
  • Delivery includes fixing material, batteries and first fill with soap.
  • Weight (in kg): 4,4
Tootekood: WAG-WP208eS ,   Tarneaeg: 14 päeva
509,96 € (5%)
536,80 €
Projektide hinnapäringud ja tooteinfo kättesaadavusega seotud küsimused palume saata e-mailile info@pegu.ee
