Delabie valamu TRAPEZ 600x505 roostevaba teras satiin 120270

Tootekood: DE-120270
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind: 700,00 €
630,00 €
Kuumakse alates: 53,55 €
Kogus: - +

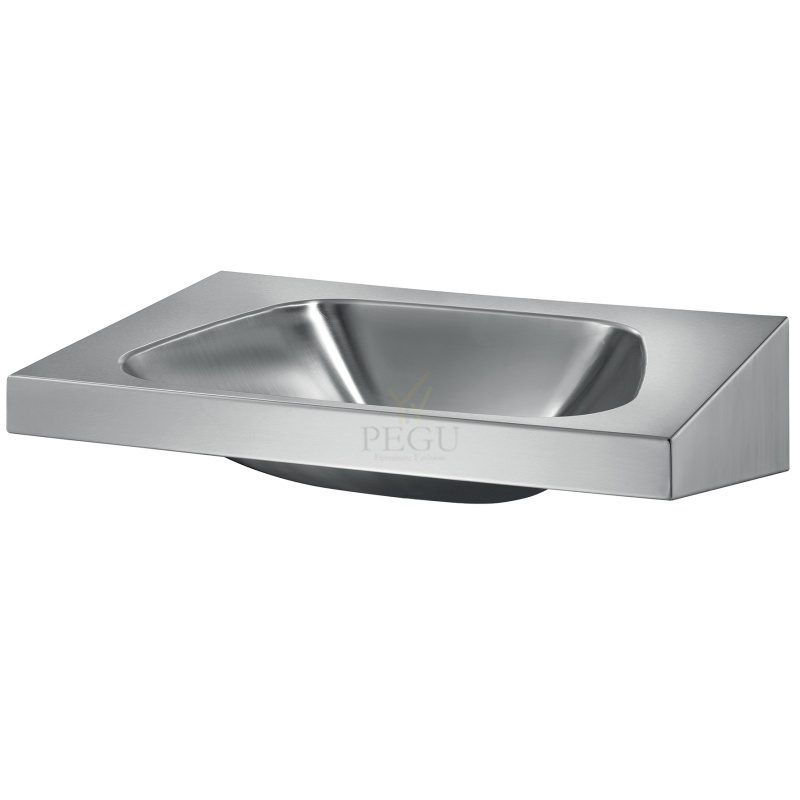

Delabie valamu TRAPEZ 600x505 roostevaba teras satiin 120270

Wall-mounted TRAPEZ washbasin
Ref. 120270

Wall-mounted washbasin, 600x505mm.
Shallow washbasin suitable for people with reduced mobility.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
With no tap hole.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 5.5kg.

Failid

Sarnased tooted

AZP Brno WC poti raam loputuskastiga , antivandaalse R/V teras katega BSAZ 5



BSAZ 5

Wall module construction for WC with vandal-resistant st.steel cover






BSAZ 5 is a wall module for wall mounted toilets equipped with anti-vandal stainless steel cover – with resistant stainless safety buttons. The cover is screwed by security bolts therefore it cannot be dismounted without special tools. The system is suitable for spaces where toilet flushing from a cistern is required but where, on the other hand, there is a threat of damaging of usual plastic covers. The robust anti-vandal stainless cover contains stainless control buttons resistant to damage (unlike the usual plastic buttons).



The cover of BSAZ 5 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).








Version types
BSAZ 5 - Wall module construction for WC with vandal-resistant st.steel cover


Basic technical information
Dimensions of wall module: (1000–1200) × 510 × (160–200) mm
Dimensions of st.steel cover: 510 × 230 × 30 mm
Water inlet: G 1/2"
Outlet: DN 100


Requirements for setting up the construction
  1. Space for mounting the wall module
  2. Water inlet G 1/2"
  3. Waste pipe for outlet connection (DN 100)


Complete delivery
  • wall module with cistern
  • st.steel cover with vandal-proof buttons

Tootekood: AZP-BSAZ 5 ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
1072,30 €

Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita AZP Brno AUS 11


Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS-11 ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
381,15 €

Antivandaalne WC pott roostevaba taras AZP Brno AUZ 08




AUZ 08

stainless-steel standing closet, with hardened seat, back drain






AUZ 08 is a stainless-steel WC in matt design. To increase the user comfort, it is provided with a grey seat with a lid made of hardened plastic (newly also with a seat in black design AUZ 08.CS). AUZ 08 is designed to stand on the floor at the wall; it is suitable for places where the common closet cannot be attached to the wall, because of a thin bearing particle, for example. The standard version of AUZ 08 has a back drain (the version with the bottom drain AUZ 02). It is suitable to supplement the WC with the automatic pressure water flushing device AUZ 3, automatic flushing device with the piezo button AUZ 3.P (or the vandal-resistant flushing device BSAZ 01) or any flushing device with a cistern.



Thanks to its resistance to damage, the closet is primarily intended for social facilities with demanding operation, such as highway lay-byes, alehouses, etc., where easy maintenance of sanitary conditions is required. WC is also manufactured in the design for the disabled under the designation AUZ 08 INV



Further closet versions can be found in the section Stainless-steel closets or Stainless-steel safety closets.




Basic technical information
Water inlet: d= 34-50 mm
Min. water flow: 70 l/min
Outlet: d= 90 mm
Weight: 23 kg


Requirements for setting up the construction
  1. Set-up outlet d = 110 mm including rubber sleeve for pipe d = 90 mm.
  2. Set-up water inlet d= 34-50 mm according to chosen sealing.


Complete delivery
  • Stainless steel closet
  • Plastic seat
  • Anchoring material


Made to order
  • AUZ 3 - automatic pressure flushing system
  • AUZ 3.P - automatic pressure flushing system with piezo control
  • BSAZ 01 - vandal resistant pressure flushing system

Tootekood: AZP-AUZ 08 ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
2492,20 €

Automatne kummikute pesur harjaga, 220V, 50Hz roostevaba teras AZP Brno RMP 02

automatic washing system for soles with rotary brushes - 230V, 50Hz



RMP 02 is a stainless steel sensor-controlled washing system with rotary brushes for wellingtons. A built-in photocell sensor reacts to the user holding the handrail. The electromagnetic valve switches on, opens the water inlet, the brushes start to rotate and the circular jet injection of the disinfecting lotion is carried out. After placing the foot with the wellington on the grid in between the rotary brushes, the sole is cleaned by means of the horizontal brush. There is a CENTRAL/STOP button on the handrail for emergency switch-off.
The washing system is intended for free standing installation on the floor. Imperfections in the floor are balanced out by four adjustable hobs. The construction of the system allows the outlet to be placed above floor level. Large pieces of dirt are collected by a sieve, which can be easily cleaned. The sieve and brush can be taken out without using a tool.
The RMP 02 washing system, with its easy maintenance, is mainly intended for operations where quick removal of mechanical dirt from wellingtons is required.
The canister with disinfecting solution is not part of the delivery.

Package contents

  • body of the washing machine
  • removable grid
  • electronics with photocell
  • rotary brush
  • hand brush
  • jerican holder
  • priming hose
  • adjustable supporting legs
  • central stop button



Radius of sensor 0,5 m
Water inlet G 1/2“
Water pressure 0,1 – 1,0 MPa
Outlet G 6/4”
Electricity protection IP 55
Power supply 230 V, 50 Hz
Power requirement 370 W
Water temperature max. 42°C
Weight 41 kg



  • Set up water inlet as per picture
  • Set up outlet G 6/4” via effluvial cover
  • Set up cable for power supply – 230 V, 50 Hz



Tootekood: AZP-RMP-02 ,   Tarneaeg: 3-5 nädalat ,   Viimistlus:
10492,23 €

Delabie Paneel seinale, valamule CANAL 2400mm, R/V teras 100300

Splashback 2400mm for CANAL wash trough
Ref. 100300

Splashback for CANAL wash trough.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Length: 2,400mm.



TECHNICAL FEATURES

Splashback 2400mm for CANAL wash trough
Ref. 100300

Height 300mm
Length 2400mm
Width 1.5mm
Thickness 1.2mm
Finish 304 polished satin stainless steel
Tootekood: DE-100300 ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
468,90 € (10%)
521,00 €
