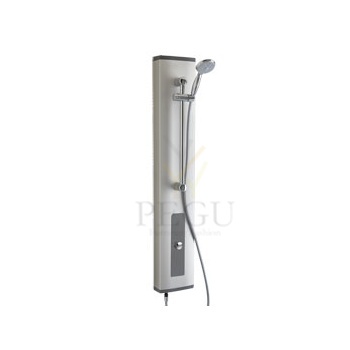

Dushipaneel eelsegatud veele, isesulguv, liftiga PRESTOTEM2 P50, 30 sek töötsükkel
Ref: 88822 - Shower panel with timed flow PRESTO 50 tapware, with hand-held shower
> Working pressure :
1 to 5 bar
> Flow :
6 l/min with integrated flow limiter Anti-water-hammering device
Hand-held shower on rail with chrome plated slide
> Flow time :
30 seconds (± 5 sec.)
> Hydraulic supply :
G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026 On P 50 tap NF II with cold water or pre-mixed water
> Material :
Anodised aluminium extruded section (2.5mm thickness) Aluminum removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers
Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
Non turnable push button Non-removable, wear-proof red marker
> Delivered with :
1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valves and 250 micron filters Fastening screws and instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in concordance with ISO 9227
Group thermostatic mixing valve for mixed water distribution from 32° to 42°C:
Regulation of temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with automotive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
55 lpm - M 3/4".
PREMIX NANO thermostatic mixing valve
Hot water thermostatic mixing valve for mixed water distribution from 34 - 60°C:
For 1 - 2 taps or 1 shower.
Anti-scalding safety: immediate shut-off if cold or hot water fails.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Filters and non-return valves.
Minimum flow rate to operate: 3 lpm.
Thermal shocks are possible.
Nickel-plated brass body M1/2'' inlets and Ø 15mm conical outlets.
