SUITABLE FOR:
- PP 17
- PP 101
- PP 102
- PP 107
- WP 101-1
- WP 102-1
- WP 102E-1
- WP 105
- WP 106
- WP 107
- WP 173-1
- WP 173E-1
- WP 174
- WP 174E
- WP 189-1
- WP 190
- WP 191-1
- WP 191-3
- WP 192-1
- WP 192-3
- WP 193
- WP 194
- WP 195
- WP 195-10
- WP 506

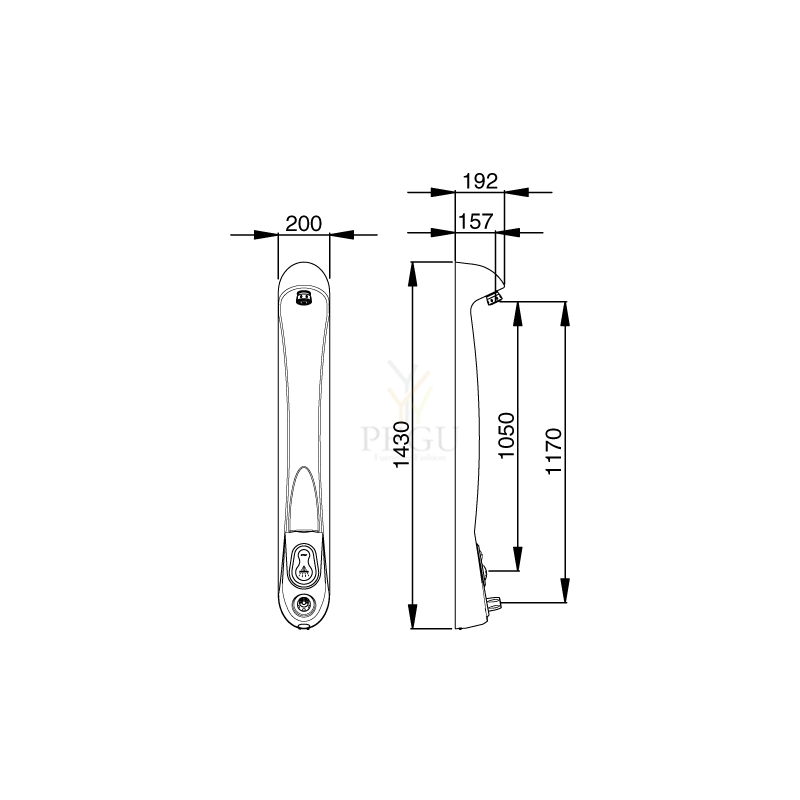

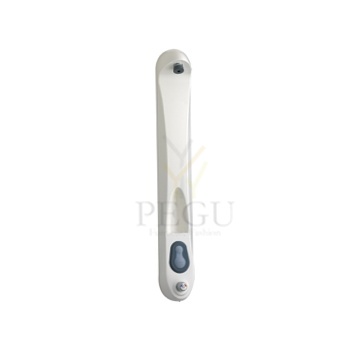

Dušipaneel segistiga Presto DL 800S seebialusega
Range : Timed flow mixer tap for shower
Ref : 27812 - PRESTO DL 800 S®
> Working pressure :
1 to 5 bar
> Flow :
6 l/min with integrated flow limiter Anti-water-hammering design
Fixed shower head with anti-limescale spikes
> Flow time :
60 seconds (Adjustable from 40 to 60 s) Start/Stop function
> Hydraulic supply :
G 1/2" (15x21) rear water inlet
With self-closing tap EN 816 and thermostatic mixing valve EN 1111 (Check valves NF)
> Material :
9001 RAL white ABSPC thermoformed resin
Brass body and components with molded chrome treatement
> Thermal resistance :
Resistant to a temperature of 75°C for 30 minute thermal shock
> Security :
Anti-scald system: flow is immediately stopped if the cold water is cut off
> Delivered with :
1/2" hoses with revolving nuts
MM G 1/2" (15x21) Stop valves and filters (250 micron) Soap dish
Fastening screw
Instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165
Molded chrome-plated body in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
Põlvekraan kas külma, või eelsegatud veele, isesulgev 390mm
15 sek on töötsükkel
> Working pressure : 1 to 5 bar
> Flow : 6 l/min at 3 bar - 4-position flow adjustment device Anti-water-hammering design
> Flow time : 15 seconds (± 5 sec.)
> Hydraulic supply : In-line water inlet M G 1/2" Inlet and outlet Cold water
> Thermal resistance : Resistant to a temperature of 75°C for 30 minute thermal shock
> Security : Patented anti-blocking "S" system to avoid the water to flow continuously
> Delivered with : 1 Cross-partition control (1 to 200 mm thick) 1 Short wall spout (Non-rotating fixing) 87 mm 1 Closing tap with S anti-blocking system 1 stop valve M 1/2" (15x21) / M 1/2" (15x21) with quick couplings (12x14 mm) Instruction manual
> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12156 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 922
It includes: single pedal mixer art. 02070, spout art. 02026, water connections with flexible tubes, check valves with filter
PREMIX COMFORT
Ref. 731003
Group thermostatic mixing valve for mixed water distribution from 32° - 42°C:
Anti-scalding safety.
Regulates temperature variations.
Filters and non-return valves can be accessed from the outside without removing the mechanism.
Thermal shock with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with automotive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C minimum.
Pressure difference at the inlets: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 - 10 bar (1 - 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
90 lpm - M1".
