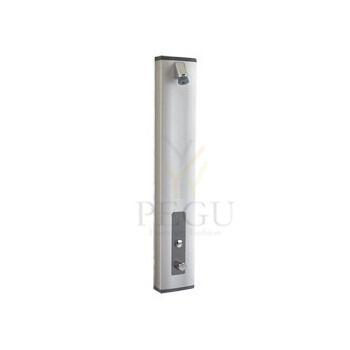

Dušipaneel termostaadiga PRESTOTEM2 P50 TM 30 sek töötsükkel, Anti-ligionnella
> Working pressure :
1 to 5 bar
> Flow :
6 l/min with integrated flow limiter Anti-water-hammering device
Fixed shower head with anti-limescale spikes
> Flow time :
30 seconds (± 5 sec.)
> Hydraulic supply :
G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026 On P 50 tap NF II and thermostatic mixer tap EN 1111 (NF check valves)
> Material :
Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS casings
> Functioning:
Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
"Legionella" version: pre-equipped for PRESTO solutions
Anti-scald system: flow is immediately stopped if the cold water is cut off Maximum delivered temperature : pre-fixed at 38°
> Delivered with :
1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valve and 250 micron filters Fastening screws and instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540
Video
Failid
5 kolbi
5 tihendeid
5 katte O tihendeid
1/2" väliskeere
> Working pressure : 1 to 5 bar
> Flow : 6 l/min at 3 bar - 4-position flow adjustment device Anti-water-hammering design
> Flow time : 3 to 5 seconds
> Operation : Foot-operated activation through pedal
> Hydraulic supply : Inlet M G 1/2"(15x21) - Cold or premixed water
> Material and colour finish : Brass body and components with molded chrome treatment Technical polymer
> Thermal resistance : Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Delivered with : 1 Gasket nut 1 Coupling nut 1 Nut for 12x14mm tube Instruction manual
> Standards & approvals : Acoustic class II Brass body in accordance with EN 1982, EN 12164, EN 12165 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
Idral Segisti isesulguva mehhanismiga 45 series, 15 sek kroom
45 series self closing basin mixer with push button
Mixing with side lever
Self-closing time 15 secs at 3 bars (reducible)
Aerator with 6 l/min. flow limiter
PREMIX SECURITY
Ref. 731052
Group thermostatic mixing valve for hot water circulating loops adjustable from 44°C to 58°C:
Anti-scalding safety.
Regulates temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with thermostatic cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring) for bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
15% energy savings: optimised heat loss (comparison between a circulating loop at 55°C and a non-circulating system at 70°C).
Safety and prolongation of system life span (Hot water at > 65°C leads to premature aging within the system).
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
55 lpm - M3/4".
