Dušitugi L-kujuline 800x800x70 valge
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
"Minu maitsed on lihtsad: parimaga jään kergesti rahule."
Kiire tarne! Populaarsed tooted on laos olemas, nii et saadame need sulle 1-3 päeva jooksul!
Osta kohe ja naudi oma ostu kiirelt! #TarneajagaRõõm #KiireTarne

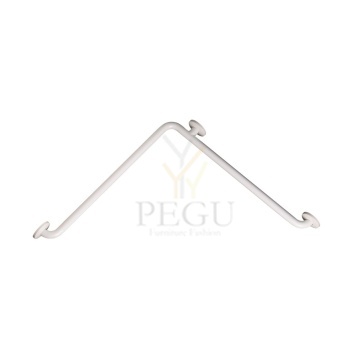

Dušitugi L-kujuline 800x800x70 valge
Horisontaalne nurga käetugi, 3-punkti kinnitus. Toru d 32 mm.
• 90º wall to wall horizontal grab bar for showers, baths and changing rooms, with three anchoring points and with snap flange covers, made with stainless steel tube, folded in an "L" shape at 90º.
• Designed to achieve barrier-free accessibility in bathrooms and public spaces. This grab bar is suitable for specific spaces for the elderly or people with reduced mobility. Model suitable for collectivities.
• Stainless steel gives this bar great durability and great resistance to rust.
• The bar has three snap flange covers that conceal the anchoring screws to the wall and reinforce, even more, the beauty of the product once installed.
• Optionally, these bars can be electrically isolated by installing the Electrical Isolation Kit code KA0020.
• Supplied with all the necessary hardware to fix the bar to a brick wall.
General description
Mediepoxi / Medinox series
BD0700C BD0700CS Bright finish Satin finish
-
90o wall to wall horizontal grab bar for showers, baths and changing rooms, with three anchoring points and with snap flange covers, made with stainless steel tube, folded in an "L" shape at 90o.
-
Designed to achieve barrier-free accessibility in bathrooms and public spaces. This grab bar is suitable for specific spaces for the elderly or people with reduced mobility. Model suitable for collectivities.
-
Stainless steel gives this bar great durability and great resistance to rust.
-
The bar has three snap flange covers that conceal the anchoring screws to the wall and reinforce, even more, the beauty of the product once
installed.
-
Optionally, these bars can be electrically isolated by installing the Electrical Isolation Kit code KA0020.
-
Supplied with all the necessary hardware to fix the bar to a brick wall.
Components and materials
-
BD2700: 90o wall to wall horizontal grab bar with three anchoring points, made with AISI 201 stainless steel tube white finish.
-
BD2700B: 90o wall to wall horizontal grab bar with three anchoring points, made with AISI 201 stainless steel tube matte black finish.
-
BD0700C: 90o wall to wall horizontal grab bar with three anchoring points, made with AISI 304 stainless steel tube bright finish.
-
BD0700CS: 90o wall to wall horizontal grab bar with three anchoring points, made with AISI 304 stainless steel tube satin finish.
-
TUBING: made of stainless steel 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the
diameter along the bends.
-
CONCEALED WALL BRACKET: three units made of stainless steel sheet, 3 mm thick and joined to the bar by welding to the ends of the
tube. It has three holes (BD2700 and BD2700B) or two holes (other references), with a diameter of 6.5 mm that allow the fixing of the bar
to the wall.
-
SNAP FLANGE COVER: three units that conceal the installation screws made of 1.5 mm thick polypropylene (BD2700 and BD2700B) or
0.8 mm thick stainless steel (other references).
Käetugi 537mm sirge
teras valge epoksükate
d 32mm
toru paksus 1,5mm
Pelavajutav äärikukate d 81mm
seinakinnitus plaat 90x250 mm
Pikkus 700mm
702,00 €
288,00 €
General description
-
Wall to wall grab bar with three support points, made of diameter 32 mm AISI 304 stainless steel tube, to be installed in the washbasins and toilets.
-
With snap flange covers to conceal the screws, helping to achieve a beautiful and sleek look and protecting the flange surfaces from damage, dust, moisture and foreign particles.
-
Ideal to design barrier-free accessibility, both domestic and commercial places, these grab bars help make the lives easier for the handicapped and elderly people.
-
Highest durability and rusting resistance.
-
Optionally, these bars can be electrically isolated by installing the electrical isolation Kit code KA0020.
-
These grab bars are supplied with a kit to fix the bar to a brick wall.
Components and materials
-
BFD600C: grab bar right hand, made of diameter 32 mm AISI 304 stainless steel tube, bright finish.
-
BFI600C: grab bar left hand, made of diameter 32 mm AISI 304 stainless steel tube, bright finish.
-
BFD600CS: grab bar right hand, made of diameter 32 mm AISI 304 stainless steel tube, satin finish.
-
BFI600CS: grab bar left hand, made of diameter 32 mm AISI 304 stainless steel tube, satin finish.
-
TUBING: made of 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along the bends.
-
CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screws holes for wall mounting.
-
SNAP FLANGE COVER: three units made of stainless steel AISI 304, 0.8 mm thick and Ø 82 mm. Each cover snaps over mounting flange to conceal mounting screws.
Stützklappgriff mit Grundplatte vario, E-Taster: WC-Schließer, Anschluß verdeckt mit Montageplatte
Länge 725 mm,
aus Aluminium, kratzfeste Pulverbeschichtung mit antibakteriellem
Schutz, lieferbar in den Cavere Farben, mit trigonometrischer Griffkontur zum ergonomischen Abstützen und Greifen, Platz sparend durch zentrische Lagerkonsole, links und rechts einsetzbar, mit robuster und wartungsfreier Gleitlagertechnik, mit einstellbarer Bremse, einfache Montage oder Demontage durch Einhängen in die Grundplatte, Grundplatte aus Edelstahl mit
ausgleichender Wandauflage, verdeckte Verschraubung,nachrüstbar mit Papierrollenhalter 7449 110, max. zul. Belastung: 100 kg,
Belastbar bis 100 kg.
Allgemeine Beschreibung E-Taster: Ø 32 mm, mit Bildzeichen: Farbe blau für WC-Spülung, Farbe rot für die Option Ruftaste, Farbe schwarz für eine frei belegbare Option (neutral). Spiralkabel 4-adrig 0,25 mm² für Steuerspannung bis 24 V.. Stützklappgriff vario, einhängbar, kann mit max. zwei E-Tastern geliefert werden. E-Taster mit der Funktion »Schließer« werden überwiegend für WC-Spülungen eingesetzt, können aber auch mit einer frei belegbaren Option ausgestattet werden. Die Funktion »Öffner« wird überwiegend bei Rufanlagen verwendet.
Das Befestigungsmaterial ist nach den baulichen Gegebenheiten festzulegen und separat zu bestellen.
