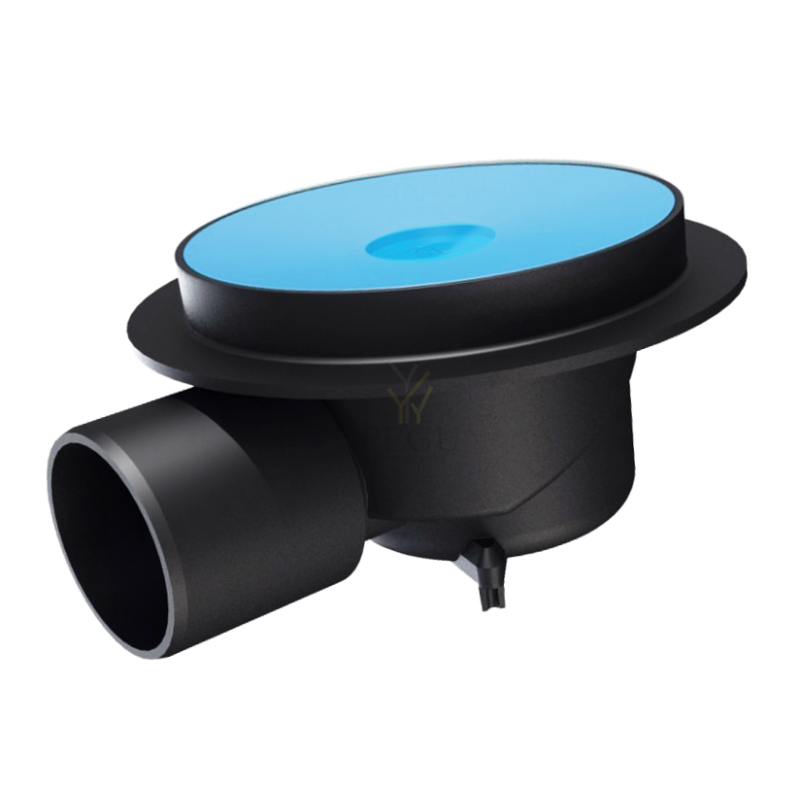

Vieser veetrapp 52615.png Zoom

Horisontaalne trapp VIESER 52615 75 mm

Tootekood: AKV52615
Kaubamärk:
Ühik: tk
Tarneaeg: 3-7 päeva
Hind:
18,30 €
Kogus: - +
   - või -

Horisontaalne trapp VIESER 52615 75 mm

Vieser low model floor drain DN 75

HVAC No. 3315972


Suitable for sewerage systems for regular wastewater.

The Vieser low model floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

Technical specifications

Vieser No.
52615
HVAC No.
3315972
EAN
6418685526151
Package (box/pallet)
24/192
Package dimensions
20 x 11 x 20 cm
Package weight
0,5 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,5l/s
General information

The package contains the floor drain, a water trap for low model floor drain, a protective lid, a clamping ring, a seal and a clamping ring installation tool.

The low model floor drain can be used with a Vieser extension ring, waterproofing flange or grating.






Sarnased tooted

Trapikaas plastraamiga 51224 Vieser Classic+ 197x197 mm

Roostevaba teras

Vieser Classic+ with plastic frame197x197

HVAC No. 3316333


NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

  • Type approved based on European standard
    (EN 1253) - withstands up to 300 kg, excellent flow properties
  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains

The package includes the Vieser stainless steel Classic+ square grating and plastic frame.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round and square gratings



Technical specifications

Vieser No.
51224
HVAC No.
3316333
EAN
6418685512246
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg




Tootekood: AKV51224 ,   Tarneaeg: 3-7 päeva
48,80 €

Trapikaas reguleeritava terasraamiga 51291 Vieser Modren 197x197 mm RST

Roostevaba teras

Vieser Modern - Stainless steel grating with adjustable stainless steel frame – 197×197

HVAC No. 3315954


The package contains  square Vieser stainless steel grating and an adjustable steel frame.

To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm in any direction. The total adjustment range is 30 mm.

  • Modern grating is our customer survey favourite
  • Modern stainless steel grating and adjustable steel frame 197x197 mm
  • Comes with an easy-to-install adjustable steel frame

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Our stainless steel gratings are fully compatible with
all our drains and extension rings.

(PDF)Vieser round and square grating in tiled floor

(DWG)Vieser round and square grating in tiled floor

Technical specifications

Vieser No.
51291
HVAC No.
3315954
EAN
6418685512918
Package (box/pallet)
20/480
Package dimensions
22,5 x 1,5 x 22 cm
Package weight
0,6 kg
Material
Stainless steel (AISI 304)
Durability
200kg
Usage
For tiled floors on top of the floor drain. Must be installed when tiling the floor. The gap between the floor drain and the square grating may not be sealed.
General information

The package contains a square stainless steel grating and an adjustable steel frame. To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm in any direction.

Tootekood: AKV51291 ,   Tarneaeg: 3-7 päeva
79,30 €

Trapikaas plastraamiga 6005479 Vieser Grid 197x197 mm RST

Roostevaba teras

Vieser Grid with plastic frame 197x197

HVAC No. 3317313


NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

  • Type approved based on European standard (EN 1253) – Withstands up to 300 kg, excellent flow properties
  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains

The package includes the Vieser stainless steel Classic+ square grating and plastic frame.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round and square gratings

Technical specifications

Vieser No.
6005479
HVAC No.
3317313
EAN
6430066742851
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg

Tootekood: AKV6005479 ,   Tarneaeg: 3-7 päeva
64,05 €

Vieser 6001178 DOT ⌀600mm - Tray renn ümmargune RST


Roostevaba teras


Vieser Dot ⌀600mm - Tray

HVAC No. 3315981


The Vieser Dot floor drain system consists of two separate parts: a tray and the chosen cover. In addition, the Vieser floor drain that is right for the floor drain system is sold separately.

Vieser Dot, with its innovative shape and size, represents a new kind of floor drain system that adds the finishing touch to your bathroom’s interior.

  • Compatibility with all Vieser One floor drains means that you can choose either a vertical, horizontal or untrapped floor drain, thereby also guaranteeing quick and easy installation.
  • With Vieser One drains, you can also make use of three DN32/40 side inlets for the floor drain to facilitate the placement of the drain and the installation of the pipeline.
  • Suitable for both new construction and renovations.
  • The watertightness and proper functioning of the floor drain have been proven in rigorous tests conducted according to the standard EN 1253-2, on which the Vieser One floor drain type approvals are also based. (Vieser One floor drain type approval)
  • The Vieser Dot floor drain system has a patented solution that enables entirely safe installation and a completely watertight membrane joint. The compatibility and watertightness of Vieser One floor drains and the liquid-applied waterproofing of wet spaces have been proven in tests conducted according to the standard EN 1253-1, on which Vieser’s product certificates are also based. (Vieser One and Vieser product certificate) & (Vieser One and Vieser product certificate when using the Vieser membrane flange)
  • Vieser Dot is a very user-friendly floor drain system. Compatibility with Vieser One floor drains offers the user an easy-to-remove water trap that is easy to clean and reinstall.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Tootekood: AKV6001178 ,   Tarneaeg: 3-7 päeva
866,20 €

Poripüüdja MAXI porandatrapp 1200x600 RST kogumiskaevuga

Roostevaba teras. Hor. 50 mm. Plaatporand

MUD STOPPER 600x1200 MAXI

Kavikan Kurasyöppö on ajatu nägu, vastupidav ja lihtne puhtana hoida, kuna poriallas on valmistatud roostevabast terasest. Toote kujunduses on mitmeid turvalisust suurendavaid detaile.

PÕRANDA-ALLIKAS JA SAJAVÕRGUD ON ROOSTEVABAST TERASEST • hügieeniline ja lihtne puhastada • kausil pole õmblusi, nurkad on ümardatud • kraan jääb korralikult sajavõrgu alla peitu • sajavõrgu ruudustik takistab libisemist • ümardused teevad pinnast paljale jalale meeldivaks

PORIMAHUTI EHITUS

  1. SAJAVÕRK – roostevaba teras, sälgulaius 10 mm, sälgulaius 10 mm

  2. SETTEKAST – plastik, läbimõõt 133 mm x 40 mm

  3. LUKUKAADER – roostevaba teras

  4. PÕRANDAKAUS – roostevaba teras, materjali paksus 1 mm, õmblusteta, nurgad ümardatud

  5. PÕRANDAKANAL – Upovieser-toodetele kohandatud

Tootekood: KAV-3314881 ,   Tarneaeg: 14-21 päeva
1745,00 €
