Idral Pedaal kraan, seinale
Tootekoodid ja tehniline info on kättesaadavad projekti või spetsiaalse päringu korral.
Ekspert aitab valida sobivaima lahenduse nii koju kui objekti jaoks.
Soovitame jagada tootelehte, mitte ainult koodi – see välistab segaduse.
Küsi julgelt: info@pegu.ee
Ühik: tk
Tarneaeg: 14-21 päeva
Müüja: PEGU OÜ

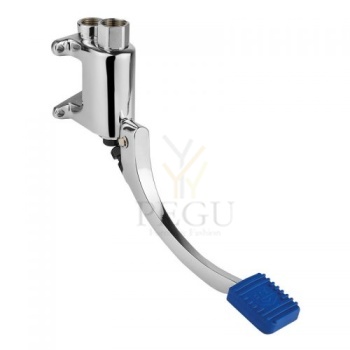

Idral Pedaal kraan, seinale
Wall mounted pedal tap
Cast brass body
Anti-limescale and self-lubricant material valve
Progressive stop without water hammer
Fastenings included
Failid
Seinasegisti kroom
Seinasegisti pika kangiga, koristaja valamule
Idral, Itaalia
> Working pressure :
1 to 5 bar
> Flow :
6 l/min with integrated flow limiter Anti-water-hammering device
Fixed shower head with anti-limescale spikes
> Flow time :
30 seconds (± 5 sec.)
> Hydraulic supply :
G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026 On P 50 tap NF II and thermostatic mixer tap EN 1111 (NF check valves)
> Material :
Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS casings
> Functioning:
Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
"Legionella" version: pre-equipped for PRESTO solutions
Anti-scald system: flow is immediately stopped if the cold water is cut off Maximum delivered temperature : pre-fixed at 38°
> Delivered with :
1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valve and 250 micron filters Fastening screws and instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540
Joogifontään veejahutussüsteemiga, pudeli taitmisega põrand/sein piezo nupp, R/V teras AISI304 230V/50Hz
AFO 01.SCL
drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall
AFO 01.SCL is a drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall. User can select between uncooled water and water running through a flow cooler. Uncooled water is used for bottle filling as a standard – can be changed. Start/stop control by piezo-buttons – resistant solution. Facility keeper can set a time period after which the water flow automatically stops.
The product contains a flow cooler. It is not a design with cooled tank only where – after the pre-cooled amount of water is pumped out – the user has to wait for the next charge to be cooled.
Water supply is provided by a flexible hose, trap comprises an elastic flexible couple. Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.
Automatic drinking fountain (with a sensor) can be supplied per order.
AFO 01.SCL is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
Package contents
- Stainless housing with cone
- Electronics and control piezo-buttons
- Water supply and electromagnetic valves
- Flow cooler
- Flexible hose outflow
- Fixing and connecting material
| dimensions | 330 x 900 x 365 mm |
| water outlet | d = 40 mm |
| water inlet | G 1/2" |
| water pressure | 0,2 – 0,6 MPa, recommended 0,3 MPa |
| power supply | 230 V, 50 Hz |
| power input | 830 W |
| weight | 25 kg |
- Set up water outlet d = 40 mm
- Set up water inlet G 1/2"
- Electric socket 230 V, or set up electric cable CYKY 3C x 1,5
> Working pressure : 1 to 5 bar
> Flow : 6 l/min at 3 bar - 4-position flow adjustment device Anti-water-hammering design
> Flow time : 15 seconds (± 5 sec.)
> Hydraulic supply : In-line water inlet M G 1/2" Inlet and outlet Cold water
> Thermal resistance : Resistant to a temperature of 75°C for 30 minute thermal shock
> Security : Patented anti-blocking "S" system to avoid the water to flow continuously
> Delivered with : 1 Cross-partition control (1 to 200 mm thick) 1 Short wall spout (Non-rotating fixing) 87 mm 1 Closing tap with S anti-blocking system 1 stop valve M 1/2" (15x21) / M 1/2" (15x21) with quick couplings (12x14 mm) Instruction manual
> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12156 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 922
Floor mounted single pedal progressive mixer
Opening of the water and progressive mixing by single movement
Cast brass body
Anti-limescale and self-lubricant material valve
Progressive stop without water hammer
Fastenings included
