Idral Segisti sensoriga serie 45, patariga kroom

Tootekood: IDR-545.12
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
516,00 €
Kogus: - +
   - või -

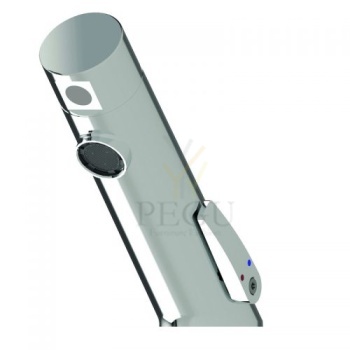

45 series electronic basin mixer with infrared sensor. Battery operated

Technical features



Mechanical mixing with side lever

Infrared sensor with activation on presence detection

Vandal proof stop after 1 min of continuous flow

Automatic anti-legionella water flow every 24h after last use

Long-life 6V lithium battery (220,000 cycles)

Aerator with 6 l/min. flow limiter

Sarnased tooted

Characteristics

  • economical aerator, rate of flow 6 l/min
  • function of automatic water stop after 5 minutes of continuous flow
  • water is flowing as long as hands are in the active range (max. range to 0,3 m)
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay from 0,25 to 7,75 sec
  • possibility of changing of time delay, active range and switching off by SLD 03
  • SLU 45 is destined for cold or premixed water under the washbasin
  • START/STOP program
Tootekood: SA-SLU 45, 24V DC ,   Tarneaeg: 14 päeva
422,00 €

The advantage of freedom

Damixa Free was designed for use in public and private buildings with many users. It’s a non-contact tap that automatically opens and closes the flow of water. It’s hygienic, robust and water-saving. Free has been well thought out from start to finish, focusing on ease of installation, cleaning and maintenance.

How we created Free

Free was designed by Claus Rantzau, an in-house design engineer at Damixa.

“Free was created to meet the demands of large buildings with many different tap users. The geometry of this tap fixture has been kept free of edges and corners where limescale and dirt tend to gather. This is for places where an extra robust tap that is easy to install and maintain is needed. This is why Free has been given a robust, industrial feel,” says Claus Rantzau.





Tootekood: D2802000 ,   Tarneaeg: 7-14 päeva
287,00 €

> Working pressure :

1 to 5 bar

> Flow :

3 l/min with integrated flow limiter High quality anti-limescale aerator Anti-water-hammering design

> Hydraulic supply :

G 3/8" (12x17)

> Power supply :

230 VAC / 7 VDC transformer in IP65 waterproof case

> Material and colour finish :

Injected molded metal body and cover Chrome finishing

> Thermal resistance :

Resistant to a temperature of 75°C for 30 minute thermal shocks

> Security :

Temperature limiting system to avoid any risk of scalding Anti-overflow security time is set to 30 seconds
Anti-blocking system preventing the water to flow continuously

> Delivered with :

1 Brass clamping nut
1 Gasket and 1 Washer
2 PEX Hoses with revolving nuts and NF check valves 2 MM G 3/8" (12x17) Stop valves
2 Filter gaskets
1 Self-adhesive sticker
Instruction manual

> Standards & approvals :

Molded chrome-plated body in accordance with EN 12540
Brass in accordance with NF EN1982, EN12164, EN12165
200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227

Tootekood: P55377 ,   Tarneaeg: 14-21 päeva
451,00 €

CURVE series electronic basin mixer with infrared sensor. Battery operated

Technical features



Mechanical mixing with side lever

Infrared sensor with activation on presence detection

Vandal proof stop after 1 min of continuous flow

Automatic anti-legionella water flow every 24h after last use

Long-life 6V lithium battery (220,000 cycles)

Sealed battery box for installation under basin

6V “Micro“ solenoid valve (internal)

Tootekood: IDR-02504 ,   Tarneaeg: 14-21 päeva
480,00 €

CURVE series electronic basin mixer with infrared sensor and extension. 230V mains supply

Technical features



Extension H=150 mm included

Mechanical mixing with side lever

Infrared sensor with activation on presence detection

Vandal proof stop after 1 min of continuous flow

Automatic anti-legionella water flow every 24h after last use

External power supply 230V AC/6V DC, protection grade IP65; cable with European plug (C); anti black-out device to ensure the shut off of the tap even in case power cut

6V “Micro“ solenoid valve (internal)

Tootekood: IDR-02504/1R ,   Tarneaeg: 14-21 päeva
571,00 €
