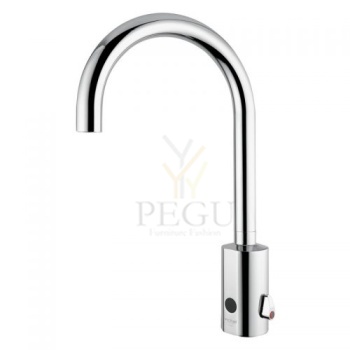

Idral Segisti sensoriga serie CURVE 02505, IP65 230V AC/6V DC kroom

Tootekood: IDR-02505/R
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
793,00 €
Kuumakse alates: 68,16 €
Kogus: - +

Idral Segisti sensoriga serie CURVE 02505,  IP65 230V AC/6V DC kroom



Technical features

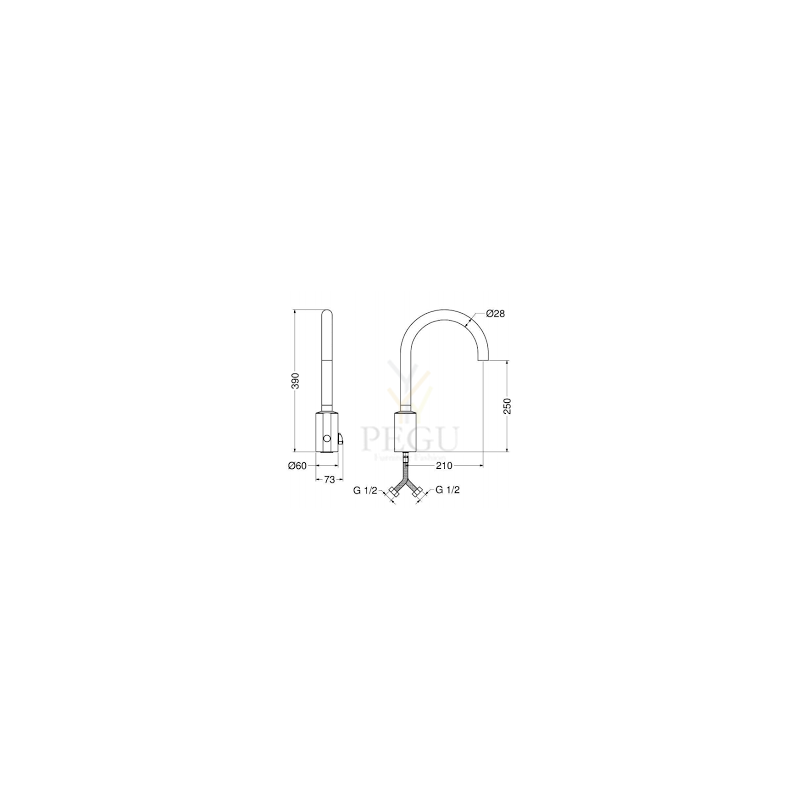

High tap (fixed) with spout H=250 mm, projection 200 mm

Mechanical mixing with side lever

Infrared sensor with activation on presence detection

Vandal proof stop after 1 min of continuous flow

Automatic anti-legionella water flow every 24h after last use

External power supply 230V AC/6V DC, protection grade IP65; cable with European plug (C); anti black-out device to ensure the shut off of the tap even in case power cut

6V “Micro“ solenoid valve (internal)

Failid

Sarnased tooted

PRODUCT DESCRIPTION

• Winner of a Red Dot Design Award!

• Holds approx. 9,5 dl liquid soap (= 800-950 doses).

• Battery-operated. Connection to power supply via a transformer.

• An intelligent sensor automatically sets the best sensor range.

• LED light indicates when dispenser is in use.

• Comes in trendy matt black and classic white as standard.

• Also available in all RAL colours and coated with different prints.

• Top plate in 6 optional standard designs

• 2-year warranty.



SPECIFICATIONS
Product number: 3056 / EAN no. 5-709818-030562
Technical data:
Touch-free soap dispenser for liquid soap/disinfectant. Matt black steel housing (RAL 9005, gloss 3). Equipped with top plate. Capacity: 9,5 dl. Battery-operated.
Dimensions H: 330 mm, W: 139 mm, D: 127 mm
Net Weight: 2.3 kg
Tootekood: DAN3056 92 ,   Tarneaeg: 14-21 päeva
427,00 €

SENSOR DISINFECTANT DISPENSER WP 208E-7

148 x 448 x 120 mm
950 ml tank

  • Sensor disinfectant dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
  • All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed. Further available surfaces: see below.
  • With EWAR® eModule touch-free operated disinfectant pump with 950 ml tank.
  • Tank with large, lockable refill opning.
  • Designed for standard disinfectants.
  • Inspection slot to indicate fill level.
  • Accessible for refilling through lockable, removable front panel with fall protection.
  • Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
  • eModule battery-powered with two 1.5 V Baby/LR14 batteries.
    Power supply available as an option.
  • Wear parts and front panel can be replaced as modules.
  • Installation dimensions: 150 x 450 x 110 mm
  • Mounting: With four screws in wall opening through fixing holes in the side walls.
  • Delivery includes fixing material and batteries.
  • Weight (in kg): 3,4
Tootekood: WAG-WP208e-7S ,   Tarneaeg: 14 päeva
521,55 € (5%)
549,00 €

PRODUCT DESCRIPTION

• Wall mounting.

• For liquid soap

• Capacity: 15 dl (1000-1500 doses).

• Power connection: AC (0,6V).

• Stainless steel with satin finish.

• Infra-red sensor and elektronic timer.

• 2-year warranty.




Tootekood: DAN378 ,   Tarneaeg: 14-21 päeva
817,40 €

Keraamiline pissuaar Caprino radariga Sanela,  integreeritud adapter 240V/AC

SLP 23RZ



Urinal Caprino with a radar flushing unit and integrated power supply, 230 V AC



Characteristics

  • economy flushing by 1 liter of water
  • easy installation by the help of paper drill template
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal,when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
Order number 01235
Code SLP 23RZ


Supply specification

SLP 23RZ - Supply No. 01235 - ceramic urinal with radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with a filter and check valve, inlet fitting with a rubber sealing, siphon, mounting set, paper drill template, power supply

Technical information

Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
Tootekood: SA-SLP23RZ ,   Tarneaeg: 14-21 päeva
1207,00 €

Roostevaba teras pissuaar KEG sensoriga . 24VDC

SLPN 10E



Stainless steel KEG urinal with infra-red flushing unit, 24 V DC



Characteristics

  • vandal-proof
  • stainless steel wall hung urinal with integrated infra-red electronics
  • rear assembling by the mounting plate and special screws
  • system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
  • system flushes after leaving of user from active range
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 03
  • automatic hygiene flushing after 24 hours non-use
  • material AISI - 304
  • brushed finish
Code SLPN 10E



Operating voltage: 24 V DC
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 12 l/min. (inf. data)
Water inlet: male thread G 1/2"

Tootekood: SA-SLPN 10E ,   Tarneaeg: 14-21 päeva
2208,00 €
