Tootegrupid
Koristajavalamu RST UME.04.png Zoom

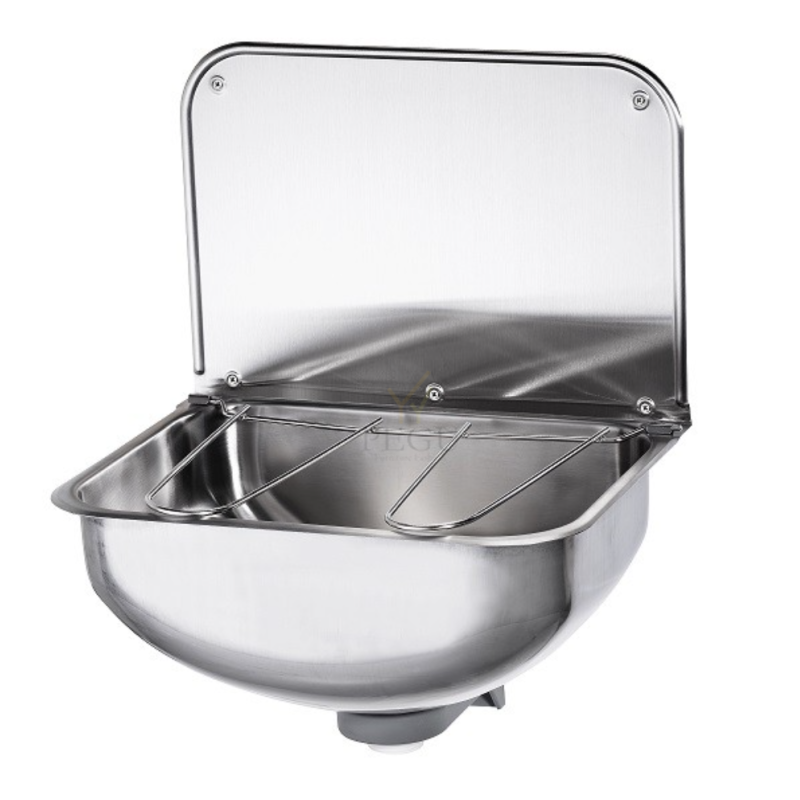

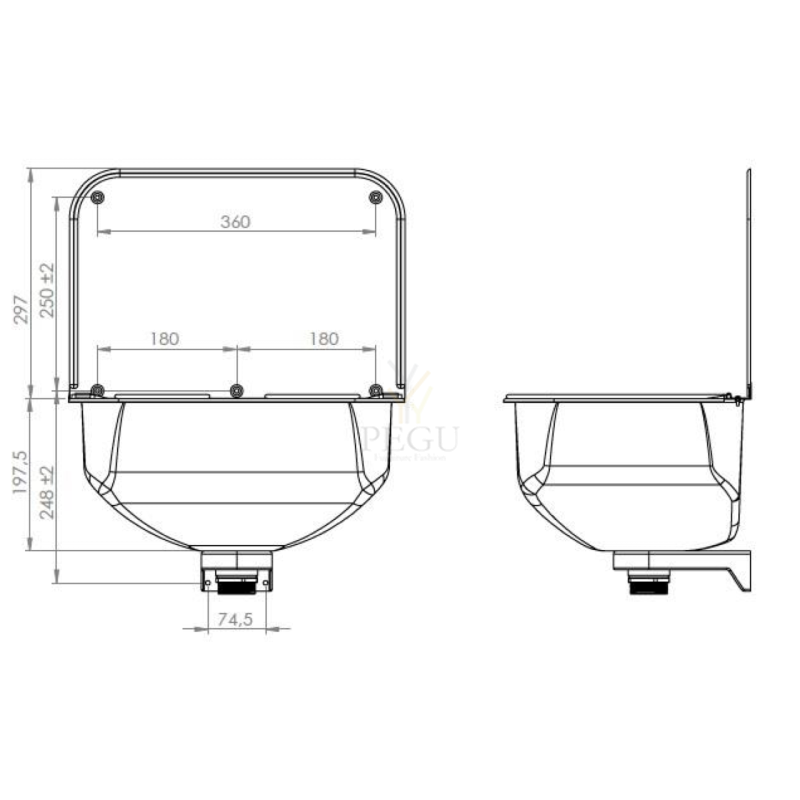

Intra UME R/V teras koristajavalamu, pritsmisplekiga 435x320x205mm

Tootekood: I-UME
Kaubamärk:
Ühik: tk
Tarneaeg: 14 -21 päeva
Hind:
305,00 €
Kuumakse alates: 25,93 €
Kogus: - +
   - või -

Intra UME R/V teras koristajavalamu,  pritsmisplekiga 435x320x205mm

Valamu R/V terasest

Garaazi/koristusruumi jaoks

UME

Stainless Steel bucket sink. Supplied with splash back and fitted with a fixated swing back bucket tray. Including 1½” waste plug.



Sarnased tooted

Seinakraan, vooliku otsaga

Poleeritud messing

1/2"

Tootekood: IDR-0151G12 ,   Tarneaeg: 7 päeva
45,00 € (10%)
50,00 €

Kollektiivne pissuaari renn 2400 mm roostevabast terasest

Tootekood: PURM-2400 ,   Tarneaeg: 5-6 nädalad
2569,00 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Tootekood: AZP-ZAC 1-20 ,   Tarneaeg: 3-4 nädalad
105,00 €

DRINKING SYSTEM

  • Frost-free drinking system for cattle and horses
  • Fresh and clean water for the animals all year round
  • Without wiring or electricity
  • A minimum of maintenance
  • No concern about filling the drinking vessels
  • No concern about cleaning the drinking vessels

Automaatjootjad sobivad kasutamiseks nii karjamaal kui ka tallides ning nende läheduses asuvates joogikohtades.
Jootjaid on lihtne kasutada ning hobused saavad kiiresti aru, et mugavam on vee juurdevoolu avamiseks vajutada klapile
mitte nina otsaga vaid selle ülaosaga. Kui koon (mokad) on joomiseks vabad, joobki hobune loomulikul viisil vee pindmiselt
kihilt. Seetõttu olemegi valinud jooginõuks lai ja sügav kauss, et tekiks joomiseks mugav veepind.

Töötamise põhimõte
Tõusutoru on varustatud isetühjeneva 3-tee
ventiiliga, mis on paigaldatud kaevu, mis omakorda
on süvistatud pinnasesse.
Kui jootjat ei kasutata on veest tühi nii ventiil kui
ka tõustoru, milles olev vesi võiks muidu külmuda.
Nii jootja ventiil ja tõusutoru on külmumiskindlad nii
kaua kuni on külmumiskindel ka vee toitetorustik.


Tootekood: FL-A342 ,   Tarneaeg: 14-21 päeva
1060,49 € (5%)
1116,30 €

DESCRIPTION

Auto-rewind 304 stainless steel hose reel - Ref. 5675T2

FOR CLEANING FLOORS AND WORK SURFACES

Auto-rewind hose reel with flexible hose L. 15m and guide rollers: Maximum temperature 70°C.
Flow rate 23 lpm at 3 bar.
Maximum pressure 20 bar, 12 bar with trigger-op hand spray. 304 Stainless steel base and drum Ø 390mm.

Order separately: an angled stopcock with integrated vacuum breaker to prevent the back flow of polluted water into the mains supply.

TECHNICAL FEATURES

Auto-rewind 304 stainless steel hose reel
Ref. 5675T2



Connector 3/4"
Height 400mm
Depth 410mm
Length 186mm
Flow rate 14 lpm
Finish 304 Stainless steel

Tootekood: DE-5675T2 ,   Tarneaeg: 14-21 päeva
2855,00 €
Projektide hinnapäringud ja tooteinfo kättesaadavusega seotud küsimused palume saata e-mailile info@pegu.ee
