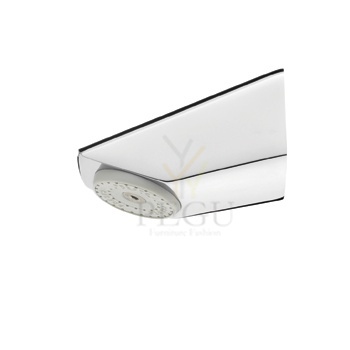

Jäik dušiotsik Presto , süvistatud paigaldus PRESTO 29110

Ref: 88822 - Shower panel with timed flow PRESTO 50 tapware, with hand-held shower

> Working pressure :

1 to 5 bar

> Flow :

6 l/min with integrated flow limiter Anti-water-hammering device
Hand-held shower on rail with chrome plated slide

> Flow time :

30 seconds (± 5 sec.)

> Hydraulic supply :

G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026 On P 50 tap NF II with cold water or pre-mixed water

> Material :

Anodised aluminium extruded section (2.5mm thickness) Aluminum removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers

> Functioning:

Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Non turnable push button Non-removable, wear-proof red marker

> Delivered with :

1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valves and 250 micron filters Fastening screws and instruction manual

> Standards & approvals :

Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in concordance with ISO 9227
