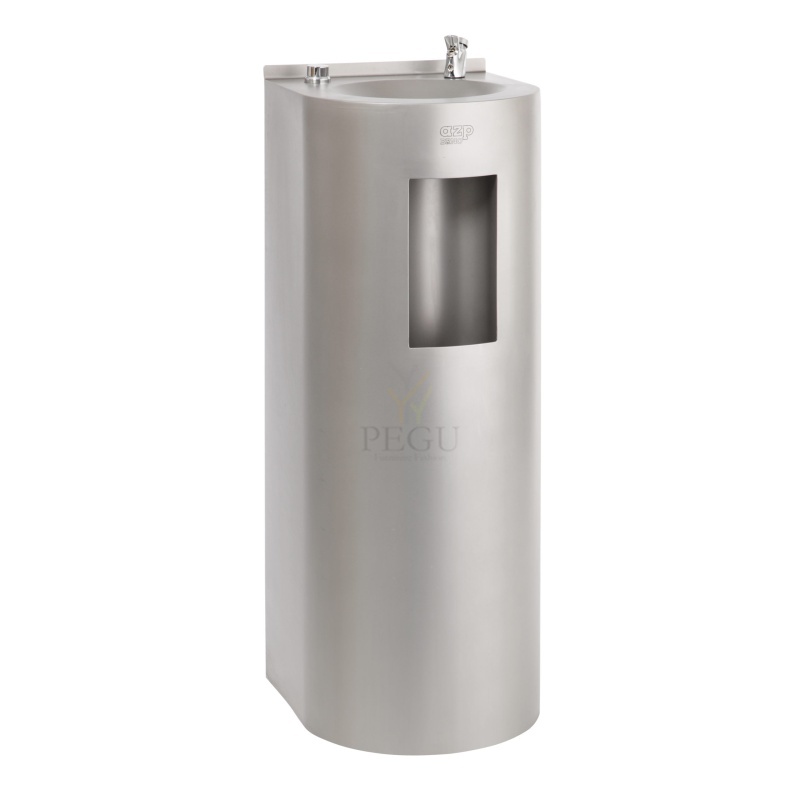

AFO-01.SL_.jpg Zoom

Joogifontään põranda/sein pudeli täitmisega, mehaaniline R/V teras AISI304

Tootekood: AZP-AFO01.SL
Kaubamärk:
Ühik: tk
Tarneaeg: 3-4 nädalad
Hind:
1917,00 €
Kuumakse alates: 164,95 €
Kogus: - +

Joogifontään põranda/sein pudeli täitmisega, mehaaniline R/V teras AISI304

AFO 01.SL

drinking fountain with spout for filling bottles designed to stand and to be attached to wall

AFO 01.SL is a drinking fountain with spout for filling bottles designed to stand and to be attached to wall. Water runs for the time for which the valve is pressed plus the pre-set period after it is released; thus the jet can be rinsed. Second pressure valve serves for bottle filling.

In standard version the fountain is produced with a niche suitable for filling the bottle of 0.7 l. Fliountain with a niche for filling the botlles of 1.5 l can be made on order.

Water supply is provided by a flexible hose, trap comprises an elastic flexible couple. Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.

TAutomatic drinking fountain (with a sensor) can be supplied per order.

AFO 01.SL is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Package contents

  • Stainless housing with cone
  • Pressure valve with jet
  • Pressure valve for bottle filling
  • Flexible hose outflow
  • Fixing and connecting material

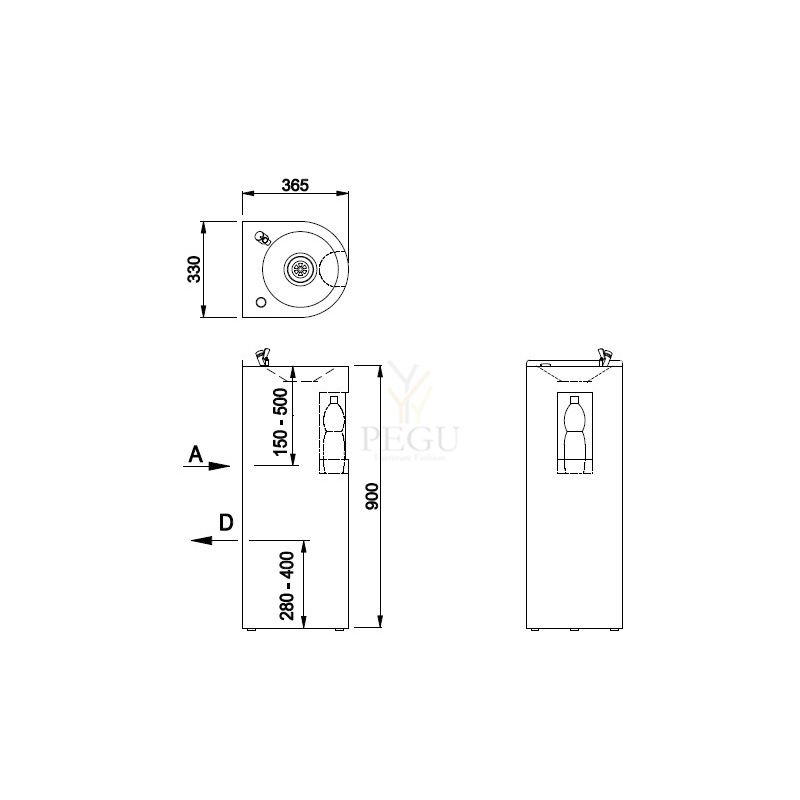

dimensions 330 x 900 x 365 mm
water outlet d = 40 mm
water inlet G 1/2"
water pressure 2 - 6 Bar, recommended 3 Bar
weight 12 kg



  • Set up water outlet d = 40 mm
  • Set up water inlet G 1/2"
