Tootegrupid
AFO-01.jpg Zoom

Joogifontään seinale mehaaniline R/V teras AISI304

Tootekood: AZP-AFO01
Kaubamärk:
Ühik: tk
Tarneaeg: 3-4 nädala
Hind:
765,00 €
Kuumakse alates: 65,03 €
Kogus: - +
   - või -

Joogifontään seinale mehaaniline R/V teras AISI304

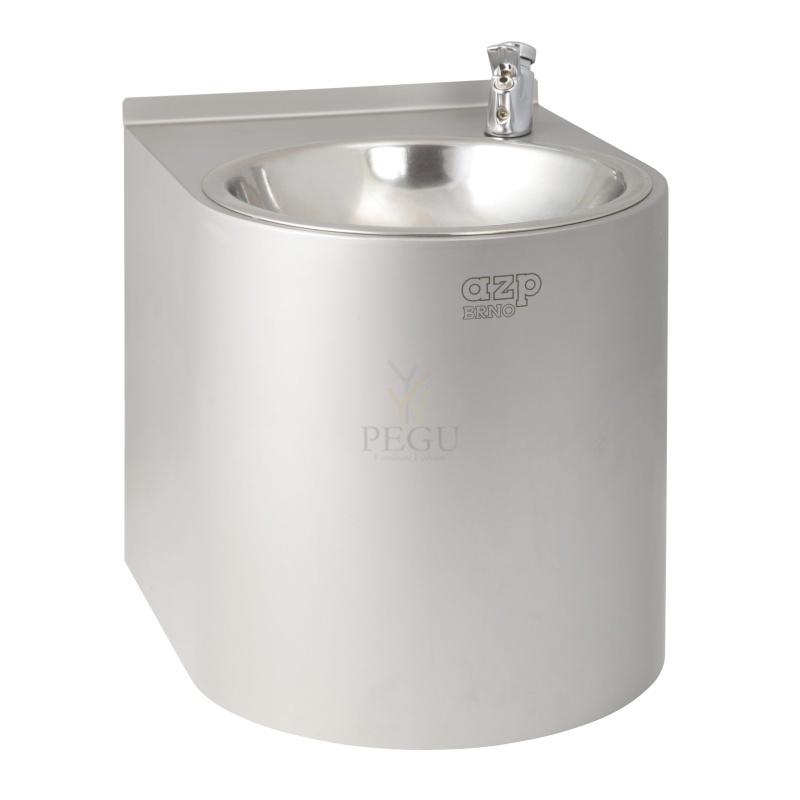

AFO 01 stainless steel wall-mounted drinking fountain

AFO 01 is a stainless steel wall-mounted drinking fountain of modern design with a manual press valve that allows its easy use. The water flows only when the valve is pressed and then there is a certain adjusted time to rinse out the nozzle.
The water inlet is fitted with a flexible hose, the siphon is made from a stretchy, flexible connector. The flexible finish of the water inlet and outlet allows the variable and problem-free connection of the fountain.
AFO 01 stainless steel fountain is suitable mainly for schools, medical facilities and spa resorts, and is utilizable outdoors.
AFO 01 is made of stainless steel AISI 304.
AFO 01.CL is made of stainless steel AISI 316 and is suitable into the areas with higher concentration of chlorine (e.g. swimming pools).
Sensor-controlled fountain possible made to order.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Package contents

  • stainless steel sink with casing
  • press valve
  • corner valve with filter
  • flexible hose siphon
  • fixing bar
  • connecting hoses
  • anchoring material

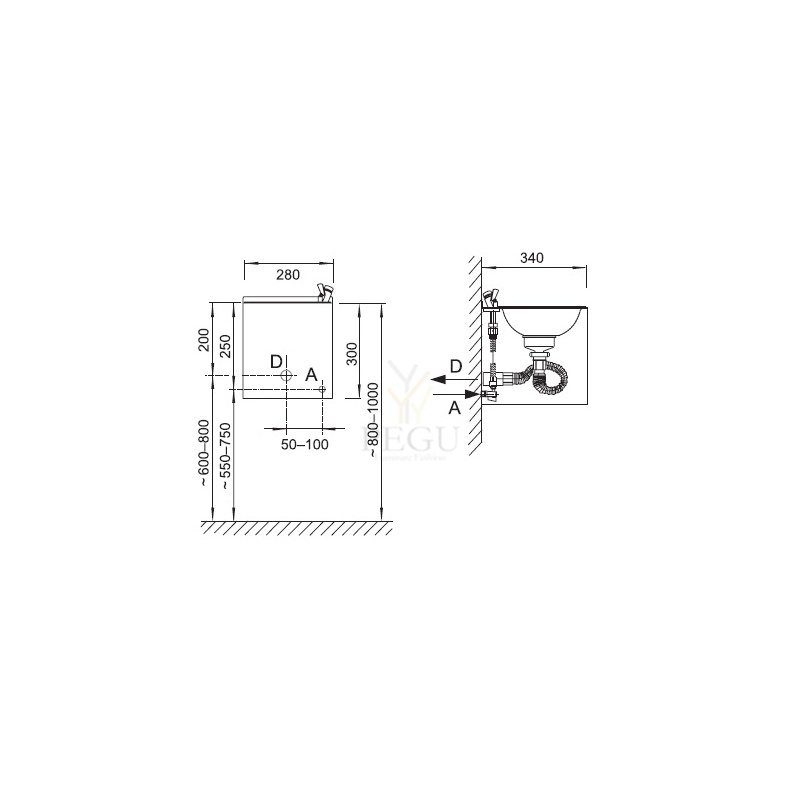

Water inlet G 1/2"
Water pressure 0,2 – 0,6 MPa (recommended 0,3 MPa)
Outlet d = 40 mm
Inner dimension of the fountain d = 245 mm
Weight 4 kg



Sarnased tooted

Seinakraan, vooliku otsaga

Poleeritud messing

1/2"

Tootekood: IDR-0151G12 ,   Tarneaeg: 7 päeva
45,00 € (10%)
50,00 €

Valamu jalaga 700x700, kõrgus 850mm , R/V teras

Stainless steel floor standing bulk sink, 700x700x850 mm



Characteristics

  • stainless steel bulk sink with supporting legs with a sheating
  • without a tap hole (could be made to order)
  • possibility of fine plane regulation by the regulation screws on the supporting legs
  • available also in dimensions 600 x 600 x 850 mm
  • material CrNi 18/10 (AISI-304)
  • brushed finish
  • different dimensions could be made to order
Order number 93150
Code SLUN 15
Tootekood: SA-SLUN15 ,   Tarneaeg: 3-5 nädalad
1647,00 €

Portinox WC pott loputuskastiga, ja istmega

Tootekood: PINP-655-OVC-TB-P+PWC Mahagon ,   Tarneaeg: 8 nädalad
2429,00 €

Joogifontään põranda/sein pudeli täitmisega, mehaaniline R/V teras AISI304

AFO 01.SL

drinking fountain with spout for filling bottles designed to stand and to be attached to wall

AFO 01.SL is a drinking fountain with spout for filling bottles designed to stand and to be attached to wall. Water runs for the time for which the valve is pressed plus the pre-set period after it is released; thus the jet can be rinsed. Second pressure valve serves for bottle filling.

In standard version the fountain is produced with a niche suitable for filling the bottle of 0.7 l. Fliountain with a niche for filling the botlles of 1.5 l can be made on order.

Water supply is provided by a flexible hose, trap comprises an elastic flexible couple. Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.

TAutomatic drinking fountain (with a sensor) can be supplied per order.

AFO 01.SL is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Package contents

  • Stainless housing with cone
  • Pressure valve with jet
  • Pressure valve for bottle filling
  • Flexible hose outflow
  • Fixing and connecting material
dimensions 330 x 900 x 365 mm
water outlet d = 40 mm
water inlet G 1/2"
water pressure 2 - 6 Bar, recommended 3 Bar
weight 12 kg



  • Set up water outlet d = 40 mm
  • Set up water inlet G 1/2"



Tootekood: AZP-AFO01.SL ,   Tarneaeg: 3-4 nädalad
1917,00 €

> Working pressure : 1 to 5 bar

> Flow : 6 l/min at 3 bar - 4-position flow adjustment device Anti-water-hammering design

> Flow time : 15 seconds (± 5 sec.)

> Hydraulic supply : In-line water inlet M G 1/2" Inlet and outlet Cold water

> Thermal resistance : Resistant to a temperature of 75°C for 30 minute thermal shock

> Security : Patented anti-blocking "S" system to avoid the water to flow continuously

> Delivered with : 1 Cross-partition control (1 to 200 mm thick) 1 Short wall spout (Non-rotating fixing) 87 mm 1 Closing tap with S anti-blocking system 1 stop valve M 1/2" (15x21) / M 1/2" (15x21) with quick couplings (12x14 mm) Instruction manual

> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12156 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 922

Tootekood: P31660 ,   Tarneaeg: 6-7 nädalad
310,65 € (5%)
327,00 €
