Aasia WC, R/V teras AISI 304
| Width | 11 13/16 Inches |
| Depth | 6 Inches |
| Height | 24 1/16 Inches |
| Opening Width | 10 Inches |
| Opening Depth | 6 Inches |
| Opening Height | 9 7/8 Inches |
| Amps | 4 - 4.4 Amps |
| Hertz | 50 - 60 |
| Phase | 1 |
| Voltage | 208 - 240 Volts |
| Wattage | 1,000 Watts |
| ADA Compliant | Yes |
| Drying Time | 17 Seconds |
| Finish | Stainless Steel |
| Hands Free | Yes |
| Installation Type | Built-In |
| RPM | 8,000 |
| Style | Heated |
Contemporary design, ADA compliant recessed hand dryer. 6” deep drying alcove with a curved back and a ceramic water absorbent surface to capture and evaporate water. Type 304 satin-finish, stainless steel. Dryer delivers a 17-second dry time at a mere 70dBA and a sustainable power rating of 1.0kW
115V AC, 8.5 Amp., 50/60 Hz, 1000 Watts, Single Phase, cULus Listed.
208-240V AC, 4.0-4.4 Amp, 50/60 Hz, 1000 Watts, Single Phase, cULus Listed and CE marked.
Akna hüdroometer
Tsink

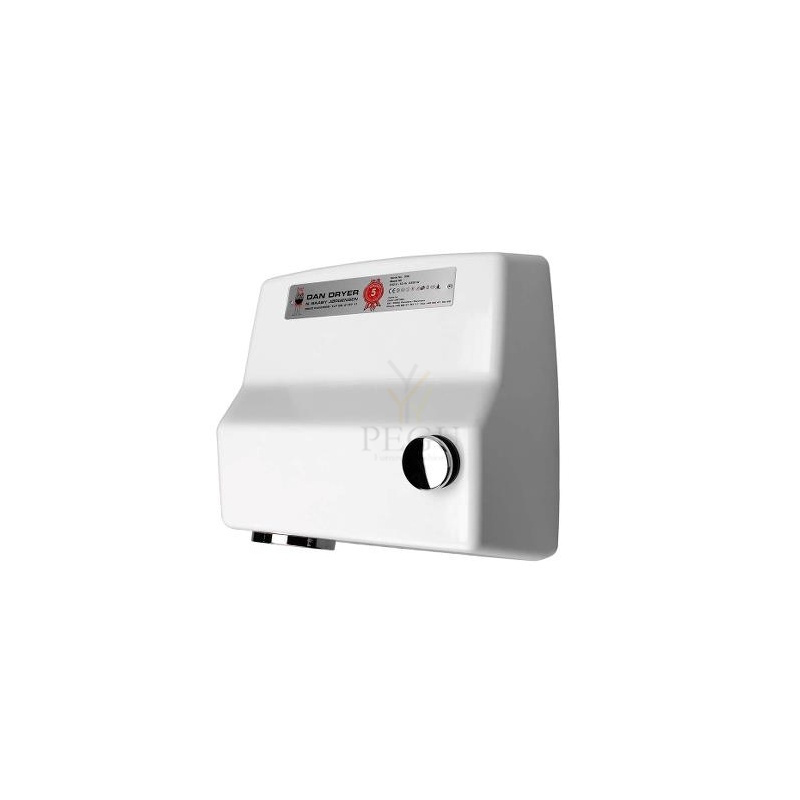

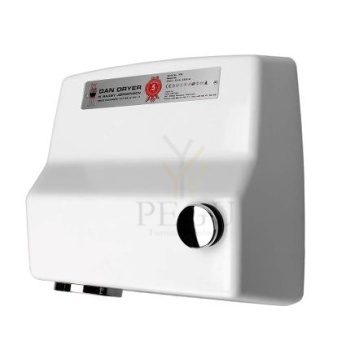

• Reliable, DAN DRYER classic machine with pushbutton.
• Drying cycle of approx. 20-25 sec.
• Comes in white as standard.
• Also available in all RAL-colours and coated with different prints.
• Almost maintenance-free with induction motor.
• 90% recyclable, very economic and environment-friendly.
• 5-year warranty on all parts, even in cases of vandalism!
Tender text:
White-painted hand/hair dryer with housing in 4 mm die-cast aluminium, pushbutton and electronic timer with infinitely adjustable control of drying cycle, drying cycle 25-170 sec., IP23, 230 V, 50/60 Hz, 2360 W, Class I (earthed). 62 dBA.
Net weight: 7.45 kg.
H: 313mm, W: 311mm, D: 199mm.
*teras 0,8 mm paksus
*valge epoksükate
*Paigaldusplaat seinale kinnitamiseks
Keevisõmbluseta korpus on aluste kinnitatud kahe vandaalikindla poldiga ja lukustatud spetsiaalse Saniflow võtmega
3mm paksune alumiinium alus
Tulekindlast plastist ventilaatorikamber
Termostaatlülitiga F-klassi universaalne harjadega mootor
Alumiiniumist tsentrifugaalne topeltsümmetriline õhuvõtuventilaatori tiivik
Elemendi on termokaitselüliti
Elektroisolatsioon klass 1
Kaitseklass IP23
Tööaeg on 29 sek
Ühes tükis ABS termoplast korpus
Termoplastistist alus
Termokaitselülitiga F-klass induktsiooni
45 sek tsükkel
Korpuse paksus 3 mm
Pinge 220-240 V
Elektriisolatsiooni klass II
Voolutarve 7A
Kaal 3 kg
Koguvõimsus 1640W
Eeldav kuivatusaeg 38 sek
Sensori komplekti on vaja vahetada kui masin töötab , kas koguaeg, või ei tööta üldse.
