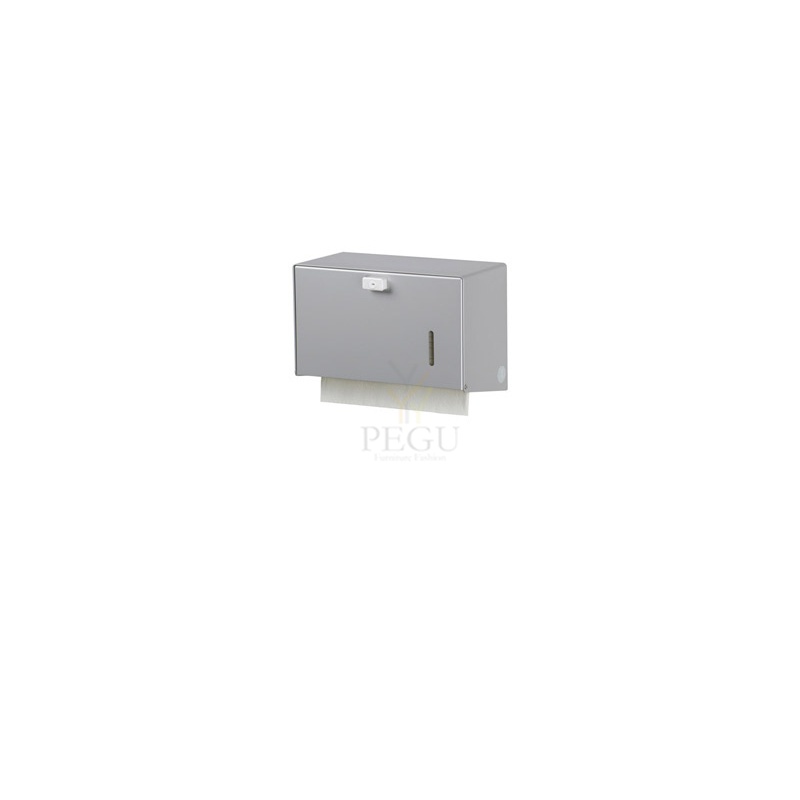

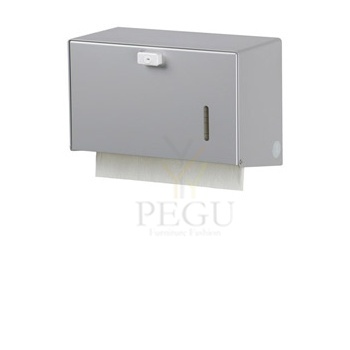

Kätepaberidosaator Alumiiniumist Ophardt Hygiene HS15A

Mediclinics paberrätikudosaatorid Rull MAX250mm valge

DT0303

• Manual centre feed paper towel dispenser, surface mounted, designed and manufactured by Mediclinics.

• Robust and vandal-resistant, these dispensers are designed to be installed in any type of public washroom with high traffic of people. Models for a more efficient use of the paper and suitable for different washroom environments: gymnasiums, sports centers, hospitals and health centers, restaurants and similar type of installations; solutions even for use in different places.

• All these models have a front sliding door, especially designed for an easy paper replacement. They have been designed to facilitate and optimize the rational use of the paper, such as for example the toothed paper outlet that facilitates the paper cutting.

• All Mediclinics paper tower dispensers are supplied with a lock and special key for opening and screws.

400 x 298 x 120 mm
ca. 500 paper towels / sensor with 500 ml soap bottle

• Combination consisting of a sensor liquid soap dispenser and a paper towel dispenser in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Sensor liquid soap dispenser with EWAR® eModule touch-free operated soap pump.
• Designed for standard 500 ml disposable bottles of liquid soap or hand lotion.
• Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 500 standard paper towels in zigzag fold. Paper size (folded): 240-250 mm x 100-115 mm.
• Inspection slots to indicate fill level.
• Accessible for refilling through lockable front flap with fall protection.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries.
  Power supply available as an option.
• Wear parts can be replaced as modules.
• Mounting: With four screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material, batteries, first fill with soap and one pack of paper towels.

• Weight (in kg): 4,8

600 x 600 x 130 mm
950 ml soap bottle / ca. 750 paper towels

• Mirror cupboard with integrated liquid soap dispenser and paper towel dispenser in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; visible surfaces satin finished and brushed.
• Crystal mirror with all round 2 mm chamfer and frosted window for optional lighting set.
• Liquid soap dispenser with one-hand operated and non-drip soap pump.
• Designed for standard 950 ml disposable bottles of liquid soap or hand lotion.
• Also refillable with large container using the plug-in tank as an option.
• Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 750 standard paper towels in zigzag fold.
  Paper size (folded): 240-250 mm x 100-115 mm.
• Accessible for refilling through lockable door.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• Wear parts can be replaced as modules.
• Lighting set available as an option.
• Mounting: With four screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material, first fill with soap and one pack of paper towels.

• Weight (in kg): 19,4

298 x 1348 x 120 mm
ca. 250 paper towels / sensor with 950 ml soap bottle / 11 l

• Combination consisting of a sensor liquid soap dispenser, a paper towel dispenser and a waste bin in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Sensor liquid soap dispenser with EWAR® eModule touch-free operated soap pump.
• Designed for standard 950 ml disposable bottles of liquid soap or hand lotion.
• Also refillable with large container using the plug-in tank as an option.
• Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 250 standard paper towels in zigzag fold.
  Paper size (folded): 240-250 mm x 100-115 mm.
• Inspection slots to indicate fill level.
• Accessible for refilling through lockable front flap with fall protection.
• Waste bin equipped with removable mesh basket. Capacity approx. 11 l. Accessible through lockable door with self-closing, flame-retardant disposal flap.
• Keyed alike cylinder locks in corrosion-resistant zinc die-casting.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries.
  Power supply available as an option.
• Wear parts can be replaced as modules.
• Mounting: With eight screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material, batteries, first fill with soap and one pack of paper towels.

• Weight (in kg): 15,8

298 x 898 x 120 mm
ca. 250 paper towels / 11 l

• Combination consisting of a paper towel dispenser and a waste bin in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 250 standard paper towels in zigzag fold. Paper size (folded): 240-250 mm x 100-115 mm.
• Inspection slot to indicate fill level.
• Accessible for refilling through lockable front flap with fall protection.
• Waste bin equipped with removable mesh basket. Capacity approx. 11 l. Accessible through lockable door with self-closing, flame-retardant disposal flap.
• Keyed alike cylinder locks in corrosion-resistant zinc die-casting.
• Wear parts can be replaced as modules.
• Mounting: With four screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material and one pack of paper towels.

• Weight (in kg): 9,3
