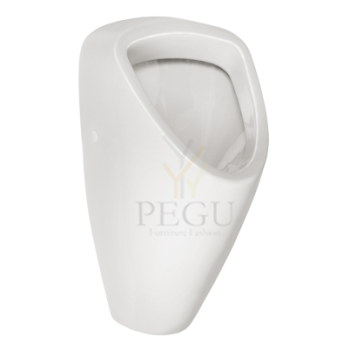

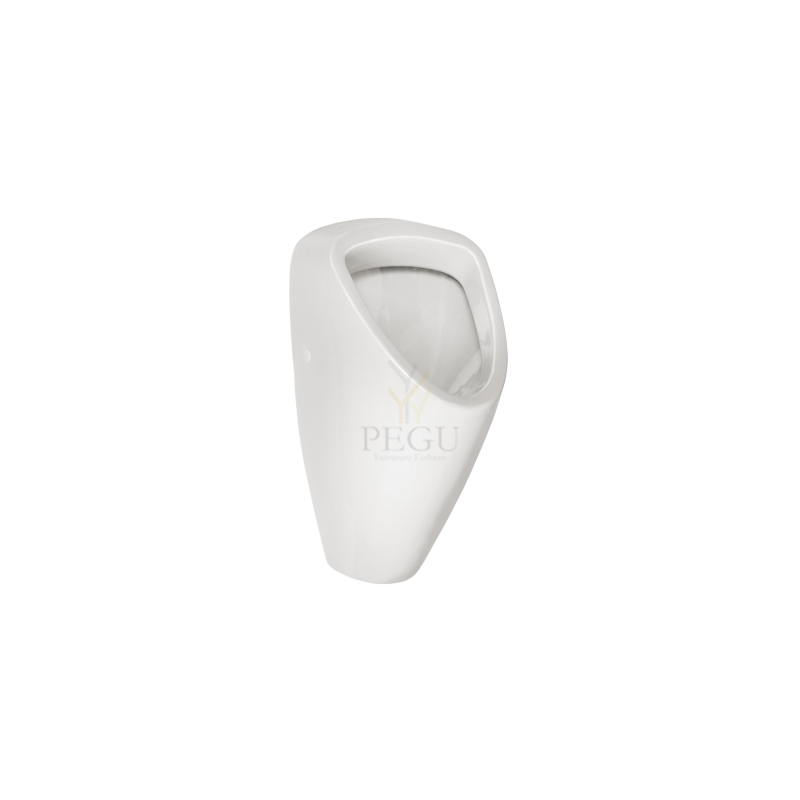

Keraamiline pissuaar Caprino Plus radariga Sanela, integreeritud adapter 230V/ AC

Tootekood: SA-SLP49RZ
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind: 831,00 €
789,45 €
Kogus: - +
   - või -

SLP 49RZ



Urinal Caprino Plus with a radar flushing unit and integrated power supply, 230 V AC



Characteristics

  • economy flushing by 1 liter of water
  • easy installation by the help of paper drill template
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the ball valve
  • radar flushing unit recharges a water to the siphon after each flushing
Order number 01495
Code SLP 49RZ


Supply specification

SLP 49RZ - Supply No. 01495 - ceramic urinal with the radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, siphon, mounting set, paper drill template, power supply

Technical information

Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing

Video



Failid

Sarnased tooted

Dimensions: cca 140 x 100 x 62 mm
Input voltage: 230V AC/50Hz
Output voltage: stabilized 24V DC
IP code: IP 55
Automatic washbasin taps and shower controls supply: 2 valves max.
Automatic urinal flushing units supply: 5 valves max.
Automatic toilet flushing unit supply: 4 valves max.Dimensions: cca 140 x 100 x 62 mm
Input voltage: 230V AC/50Hz
Output voltage: stabilized 24V DC
IP code: IP 55
Automatic washbasin taps and shower controls supply: 2 valves max.
Automatic urinal flushing units supply: 5 valves max.
Automatic toilet flushing unit supply: 4 valves max.

Tootekood: SA-SLZ01Y ,   Tarneaeg: 14 päeva
94,00 €

Pissuaarikraan 1/2-1/2" 6 sek

Isesulguva mehhanismiga, kroom

Tootekood: P31001 ,   Tarneaeg: 7 päeva
73,00 €
PRODUCT INFORMATION
  • Wand-Urinal
  • Breite: 31,5cm
  • Tiefe: 31cm
  • Höhe: 56,5 cm
  • Gewicht 16 Kg
  • Beschichtung: inkl. CERASLIDE® Beschichtung
Tootekood: GL-VA089BI ,   Tarneaeg: 3-4 nädalad
131,10 € (5%)
138,00 €
Description

Urinal for wall mounting. Supplied with vandal resistant cover for concealed fixing, grated waste, spreader, fixing bracket and flexible tube for easy water connection.

Tootekood: I-EDU-1 ,   Tarneaeg: 3-4 nädalad
709,75 € (15%)
835,00 €

SLP 19RS



Urinal Golem with a radar flushing unit, 24 V DC



Characteristics

  • economy flushing by 1 liter of water
  • easy installation by the help of paper drill template
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 to 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
Order number 11195
Code SLP 19RS

SLP 19RS



Urinal Golem with a radar flushing unit, 24 V DC



Characteristics

  • economy flushing by 1 liter of water
  • easy installation by the help of paper drill template
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 to 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
Order number 11195
Code SLP 19RS


Supply specification

SLP 19RS - Supply No. 11195 - ceramic urinal with radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, siphon, mounting set, paper drill template

Technical information

Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing

Supply specification

SLP 19RS - Supply No. 11195 - ceramic urinal with radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, siphon, mounting set, paper drill template

Technical information

Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
Tootekood: SA-SLP19RS ,   Tarneaeg: 14-21 päeva
568,80 € (10%)
632,00 €
