Kirurgiline valamu kõrge pritsmekaitsega pesurenn 1400mm roostevaba teras satiin AISI304 186000

Tootekood: DE-186000
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
3894,00 €
Kuumakse alates: 330,99 €
Kogus: - +

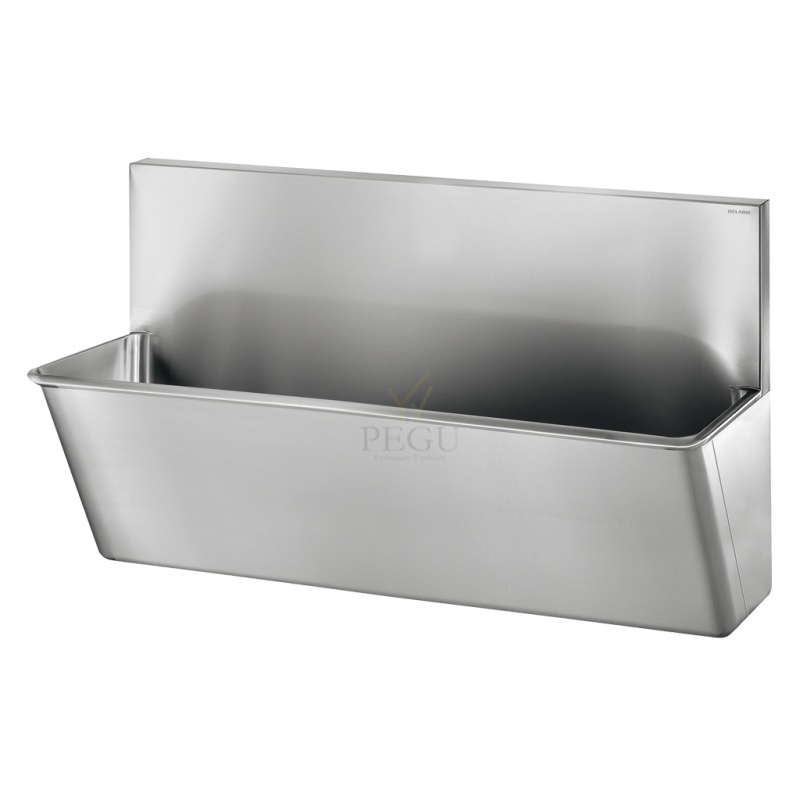

Kirurgiline valamu kõrge pritsmekaitsega pesurenn 1400mm roostevaba teras satiin AISI304 186000

Tootekood: 186000
Viimistlus: Poleeritud satiin 304 roostevaba teras – 2 töökoha jaoks – "Hygiene+" disain

Kirjeldus

Seinapealne kirurgiline valamu, millel on 450 mm kõrgune pritsmekaitse. Sobib kasutamiseks haiglates ja tervishoiuasutustes.

Valmistatud bakteriostaatilisest 304 roostevabast terasest. Poleeritud satiinviimistlus ja 1,4 mm terase paksus. Valamu on 1400 mm pikk, mõeldud ühele töökoha jaoks, ilma kraaniavata.

  • Sile pind ja ümarad sisemised servad lihtsaks puhastamiseks.
  • "Hygiene+" disain: vähendab bakterite tekkekohti, varjatud äravool ja lihtne hooldus.
  • Äravool paremal küljel.
  • Ilma ülevooluta.
  • Komplektis kinnituselemendid ja 1"1/4 äravool.

Vastab CE-märgistusele ja normile EN 14296.

Kaal: 34,4 kg

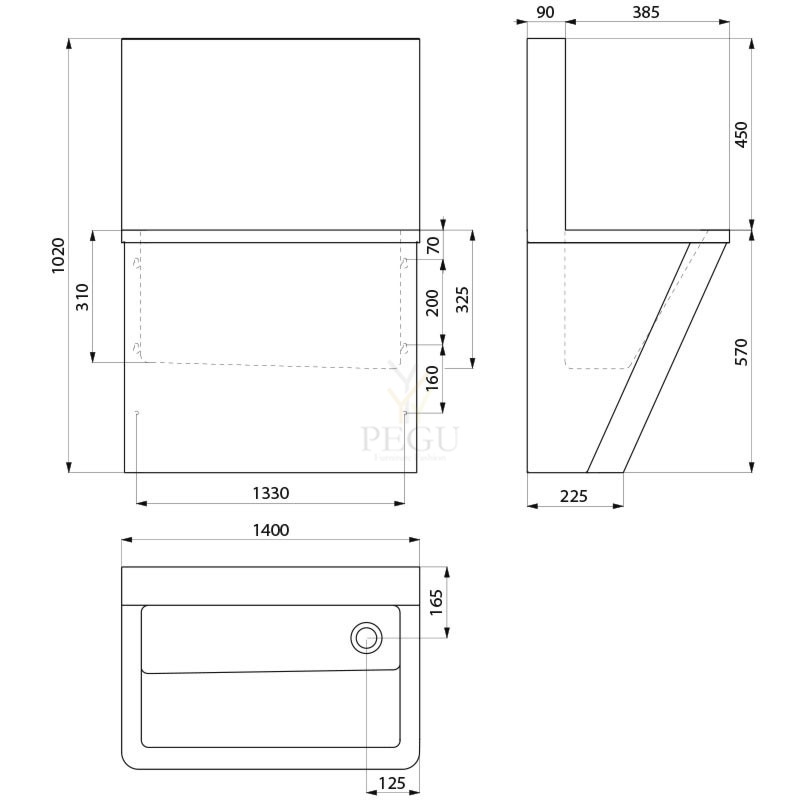

Tehnilised omadused

  • Kõrgus: 1020 mm
  • Pikkus: 1400 mm
  • Laius: 475 mm
  • Materjal: Bakteriostaatiline 304 roostevaba teras
  • Paksus: 1,2 mm
  • Viimistlus: Poleeritud satiin

Sobib kaasaegsete tervishoiuasutuste kõrgetele hügieenistandarditele!

Surgical scrub-up trough with high upstand
Ref. 186000

Wall-mounted surgical scrub-up trough with 450mm upstand.
Suitable for hospitals and healthcare facilities.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm.
Length 1,400mm, 2 services. Without tap hole.
Smooth surface and rounded inside edges for easy cleaning.
"Hygiene+" design: reduces niches where bacteria can develop, concealed trap, easy to clean.
Drainage on the right. Without overflow.
Supplied with fixing elements.Weight: 34.4kg.

Failid

Sarnased tooted

Koristaja valamu Intra U2 490x390x260 INTRA

Bucket sink in stainless steel for wall mounting. Supplied with stainless steel wall panel, supporting bracket and 3 1/2" x 2" grated waste, and reducer from 2" - 1 1/2".

Tootekood: I-U2EXP ,   Tarneaeg: 7-14 päeva ,   Viimistlus:
440,00 €

AZP Brno WC poti raam loputuskastiga , antivandaalse R/V teras katega BSAZ 5



BSAZ 5

Wall module construction for WC with vandal-resistant st.steel cover






BSAZ 5 is a wall module for wall mounted toilets equipped with anti-vandal stainless steel cover – with resistant stainless safety buttons. The cover is screwed by security bolts therefore it cannot be dismounted without special tools. The system is suitable for spaces where toilet flushing from a cistern is required but where, on the other hand, there is a threat of damaging of usual plastic covers. The robust anti-vandal stainless cover contains stainless control buttons resistant to damage (unlike the usual plastic buttons).



The cover of BSAZ 5 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).








Version types
BSAZ 5 - Wall module construction for WC with vandal-resistant st.steel cover


Basic technical information
Dimensions of wall module: (1000–1200) × 510 × (160–200) mm
Dimensions of st.steel cover: 510 × 230 × 30 mm
Water inlet: G 1/2"
Outlet: DN 100


Requirements for setting up the construction
  1. Space for mounting the wall module
  2. Water inlet G 1/2"
  3. Waste pipe for outlet connection (DN 100)


Complete delivery
  • wall module with cistern
  • st.steel cover with vandal-proof buttons

Tootekood: AZP-BSAZ 5 ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
1072,30 €

Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita AZP Brno AUS 11


Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS-11 ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
381,15 €

Pissuaari vahesein LISO, roostevaba teras AISI 304 100590

TECHNICAL FEATURES

LISO urinal divider for wall-mounting
Ref. 100590

Height 700mm
Length 25/50mm
Width 350mm
Thickness 1.5mm
Finish 304 polished satin stainless steel
Tootekood: DE-100590 ,   Tarneaeg: 14-30 päeva ,   Viimistlus:
792,00 €

Delabie Valamu HEMI d310mm AISI304 harjatud roostevaba teras 120470

HEMI inset round washbasin Ø 310mm - Ref. 120470

Round basin for recessed installation from above or below.

Basin internal diameter: 310mm.

Cut-out diameter: 330mm for installation from above, 310mm for installation from below.

Bacteriostatic 304 stainless steel.

Polished satin finish.

Stainless steel thickness: 1mm. One-piece, seam-free pressed bowl.

Rounded edges prevent injury. Supplied with 1¼" waste. Without overflow.

CE marked.

Complies with European standard EN 14688. Weight: 1.5kg.

[Formerly ref: 0213470201]

Tootekood: DE-120470 ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
179,00 €
