Delabie Kirurgiline valamu madala pritsmekaitsega "Hygiene+" 1 töökoht AISI304 L800mm 18502015

Tootekood: DE-18502015
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
3130,00 €
Kuumakse alates: 266,05 €
Kogus: - +

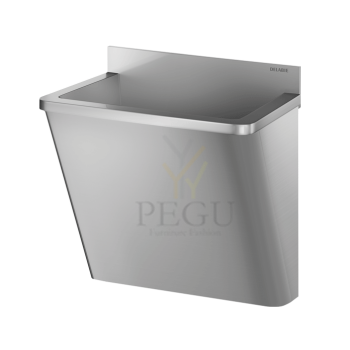

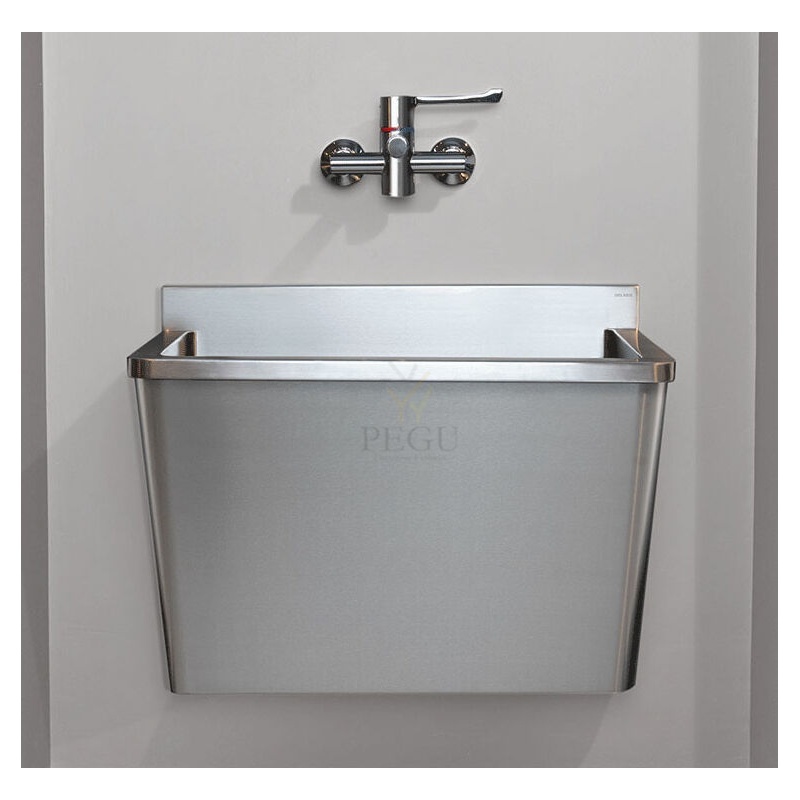

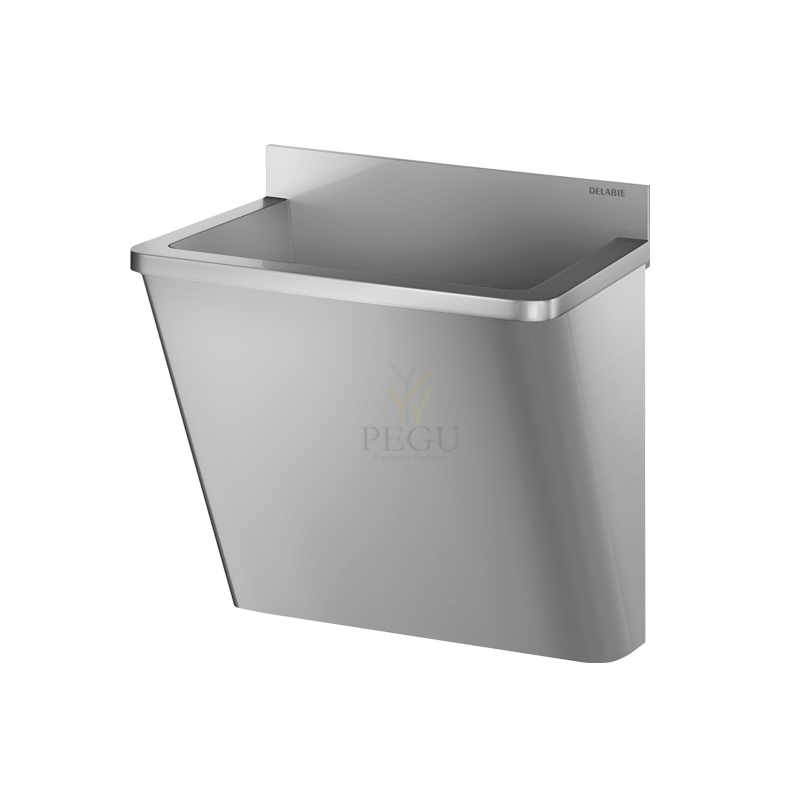

Delabie Kirurgiline valamu madala pritsmekaitsega "Hygiene+" 1 töökoht AISI304 L800mm 18502015

Kirjeldus:

Ref. 18502015 kirurgiline valamu on mõeldud spetsiaalselt haiglate ja tervishoiuasutuste vajadustele. Valmistatud bacteriostatic 304 roostevabast terasest ja varustatud innovatiivse "Hygiene+" disainiga, mis vähendab bakterite arenguks sobivaid alasid ja tagab lihtsa puhastamise. Valamul on madal pritsmekaitse (75 mm), parem äravool ja kinnitusdetailid.

Peamised omadused:

  • Seinakinnitusega disain
  • Madal pritsmekaitse: 75 mm
  • "Hygiene+": varjatud äravool, bakterite arengualade vähendamine
  • Sile pind ja varjatud sifoon lihtsaks puhastamiseks
  • Valmistatud bacteriostatic 304 roostevabast terasest
  • Paksus: 1,2 mm
  • Ilma segistiaukudeta
  • CE-sertifikaat, vastab EN 14296 standardile

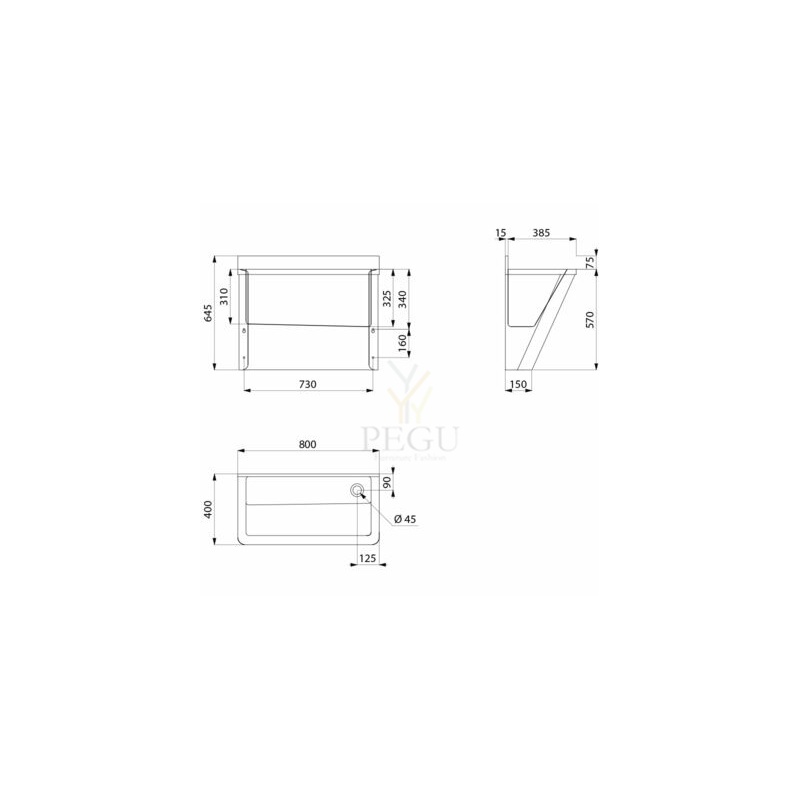

  • Mõõdud: kõrgus 645 mm, laius 400 mm, pikkus 800 mm
  • Kaal: 17.2 kg



Surgical scrub-up trough with low upstand

Ref. 18502015

Wall-mounted surgical scrub-up trough with 75mm upstand.
Suitable for hospitals and care facilities.
Complies with the former HTM64 guidance and new Health Building Note 00-10: Part C - Sanitary Assemblies.
Length 800mm, 1 service. Without tap hole.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm.
Smooth surface and rounded edges for easy cleaning.
"Hygiene +" design: reduces bacterial niches, concealed trap, easy to clean.
Drainage on the right.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with norm EN 14296.
Weight: 17.2kg.
Sarnased tooted

Antivandaalne WC pott roostevaba taras AZP Brno AUZ 08




AUZ 08

stainless-steel standing closet, with hardened seat, back drain






AUZ 08 is a stainless-steel WC in matt design. To increase the user comfort, it is provided with a grey seat with a lid made of hardened plastic (newly also with a seat in black design AUZ 08.CS). AUZ 08 is designed to stand on the floor at the wall; it is suitable for places where the common closet cannot be attached to the wall, because of a thin bearing particle, for example. The standard version of AUZ 08 has a back drain (the version with the bottom drain AUZ 02). It is suitable to supplement the WC with the automatic pressure water flushing device AUZ 3, automatic flushing device with the piezo button AUZ 3.P (or the vandal-resistant flushing device BSAZ 01) or any flushing device with a cistern.



Thanks to its resistance to damage, the closet is primarily intended for social facilities with demanding operation, such as highway lay-byes, alehouses, etc., where easy maintenance of sanitary conditions is required. WC is also manufactured in the design for the disabled under the designation AUZ 08 INV



Further closet versions can be found in the section Stainless-steel closets or Stainless-steel safety closets.




Basic technical information
Water inlet: d= 34-50 mm
Min. water flow: 70 l/min
Outlet: d= 90 mm
Weight: 23 kg


Requirements for setting up the construction
  1. Set-up outlet d = 110 mm including rubber sleeve for pipe d = 90 mm.
  2. Set-up water inlet d= 34-50 mm according to chosen sealing.


Complete delivery
  • Stainless steel closet
  • Plastic seat
  • Anchoring material


Made to order
  • AUZ 3 - automatic pressure flushing system
  • AUZ 3.P - automatic pressure flushing system with piezo control
  • BSAZ 01 - vandal resistant pressure flushing system

Tootekood: AZP-AUZ 08 ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
2492,20 €

Intra seinale kinniatav majandusvalamu VK 480x385x190mm, R/V teras

VK44STD

Wall hung utility sink in stainless steel. Supplied with fixing brackets.

Tootekood: I-VK44STD ,   Tarneaeg: 14-21 päeva ,   Viimistlus:
310,00 €

Joogifontään seinale sensoriga R/V teras AISI304 12V/50Hz

AZP Brno AFO01.Y

AFO 01.Yst. steel sensor controlled drinking fountain

AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.

Fountain is made by welding all components together.

Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).

Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).

St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.

The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.

Package contents

  • st. steel drinking fountain
  • nozzle
  • sensor and electronic
  • electromagnetic valve
  • connecting flexible hose
  • corner valve with filters
  • siphon
  • mounting material
water inlet G 1/2"
water pressure 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL)
  2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL)
outlet d = 40 mm
bowl inner dimension d = 245 mm
weigth 4 kg
suppply 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL)
  6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL)
power supply ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL)

Tootekood: AZP-AFO01.Y ,   Tarneaeg: 3-4 nädalad ,   Viimistlus:
830,39 €

Valamu antivandaalne komplekt 1-200mm seinale 31660

31660

> Working pressure : 1 to 5 bar

> Flow : 6 l/min at 3 bar - 4-position flow adjustment device Anti-water-hammering design

> Flow time : 15 seconds (± 5 sec.)

> Hydraulic supply : In-line water inlet M G 1/2" Inlet and outlet Cold water

> Thermal resistance : Resistant to a temperature of 75°C for 30 minute thermal shock

> Security : Patented anti-blocking "S" system to avoid the water to flow continuously

> Delivered with : 1 Cross-partition control (1 to 200 mm thick) 1 Short wall spout (Non-rotating fixing) 87 mm 1 Closing tap with S anti-blocking system 1 stop valve M 1/2" (15x21) / M 1/2" (15x21) with quick couplings (12x14 mm) Instruction manual

> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12156 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 922

Tootekood: P31660 ,   Tarneaeg: 6-7 nädalad ,   Viimistlus:
354,00 €

WC antivandaalne komplekt 1-200mm seinale 13060

Komplekt tualettile, WC ilma loputuskastita.

WC antivandaalne komplekt 1-200mm seinale

13060

> Working pressure : 1 to 5 bar

> Volume of water delivered : Adjustable from 6 to 9 litres with stop valve Anti-water-hammering design

> Flow time : From 7 to 9 seconds

> Hydraulic supply : MM G 1"1/4 In line Outlet connection on flush pipe Ø 32 mm

> Material and colour finish : Body and cross-partition control in Brass Push Button in Brass, chrome finish

> Security : Anti-siphonic device

> Delivered with : 1 Ball valve integrated 1 cross partition control 15 to 200m 1 fitting out, 1 bent tube and 1 junction nozzle

> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12165 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Tootekood: P13060 ,   Tarneaeg: 6-7 nädalad ,   Viimistlus:
471,00 €
