Delabie Kirurgiline valamu madala pritsmekaitsega "Hygiene+" 3 töökohta 2100mm RST AISI304 187020 Zoom

Delabie Kirurgiline valamu madala pritsmekaitsega "Hygiene+" 3 töökohta 2100mm RST AISI304 187020

Tootekood: DE-187020
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
4234,30 €
Kuumakse alates: 359,92 €
Kogus: - +

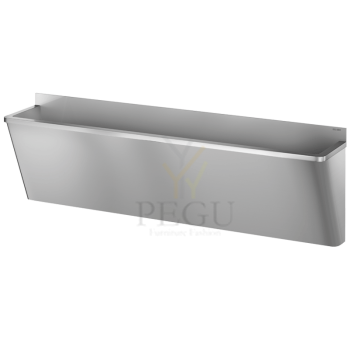

Kirurgiline valamu madala pritsmekaitsega "Hygiene+" 3 töökohta 2100mm RST AISI304

Kirjeldus:

Kirurgiline valamu Ref. 187020 on loodud spetsiaalselt haiglate ja hooldusasutuste vajaduste jaoks. Selle madal pritsmekaitse (75 mm) ja "Hygiene+" disain tagavad suurepärase hügieeni ja lihtsa puhastamise, vähendades bakterite arenguks sobivaid alasid. Valamu on valmistatud bacteriostatic 304 roostevabast terasest, sileda pinnaga ja ümarate servadega, et puhastamine oleks kiire ja tõhus.

Peamised omadused:

  • Seinakinnitusega disain
  • Madal pritsmekaitse: 75 mm
  • "Hygiene+": varjatud äravool, bakterite arengualade vähendamine
  • Sile pind ja ümarad servad lihtsaks puhastamiseks
  • Valmistatud bacteriostatic 304 roostevabast terasest
  • Paksus: 1,2 mm
  • Kaks töökohta, ilma segistiaukudeta
  • Drenaaž paremal, ilma ülevooluta

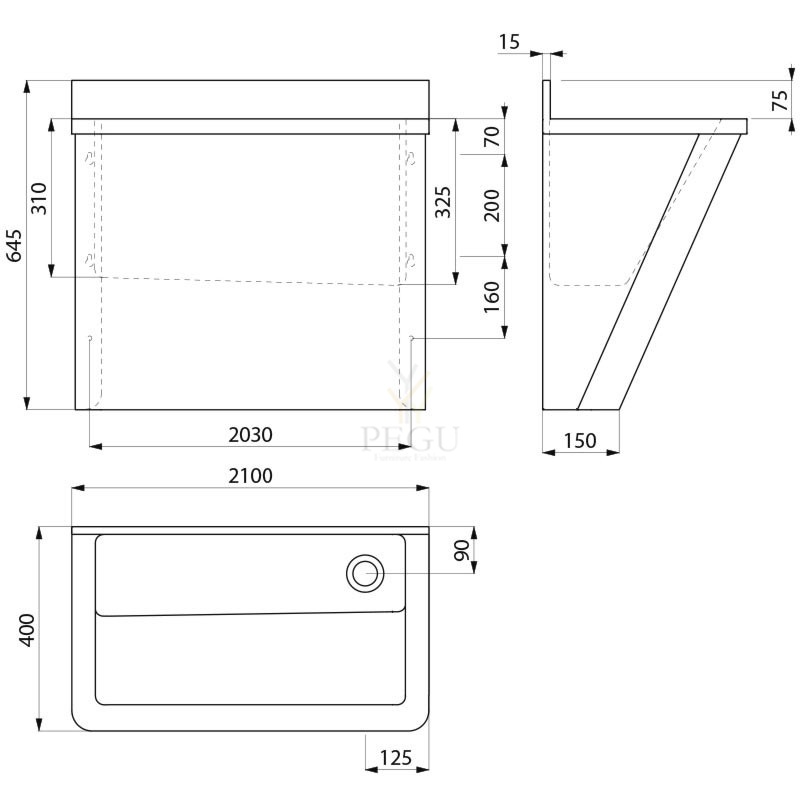

  • Mõõdud: kõrgus 645 mm, laius 400 mm, pikkus 2,100 mm
  • Kaal: 37,6 kg
  • CE-sertifikaat, vastab EN 14296 standardile ja HTM64 juhistele



Surgical scrub-up trough with low upstand
Ref. 187020

Wall-mounted surgical scrub-up trough with 75mm upstand.
Suitable for hospitals and healthcare facilities.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm.
Length 2,100mm, 3 services. Without tap hole.
Smooth surface and rounded inside edges for easy cleaning.
"Hygiene+": reduces niches where bacteria can develop, concealed trap, easy to clean.
Drainage on the right. Without overflow. Supplied with fixing elements.
Weight: 37.6kg.
