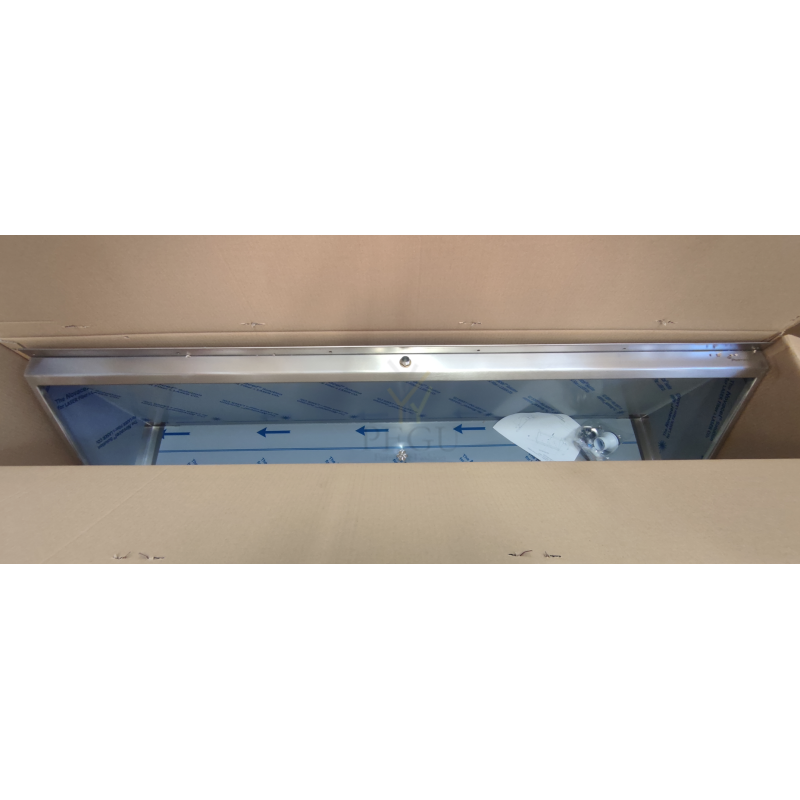

Kollektiivne pissuaari renn 1200 mm
Kaubamärk:
Ühik: tk
Tarneaeg: 3-4 nädalad
Lisainfo: info@pegu.ee
PEGU09 sisesta sooduskood ostukorvi lehel kupongi lahtrisse!
Pissuaari renn 1200 mm
RMO 02
automatic washing system for wellingtons
RMO 02 is a stainless steel sensor-controlled washing system with rotary brushes for wellingtons. A built-in photocell sensor reacts to the user holding the handrail. The electromagnetic valve switches on, opens the water inlet, the brushes start to rotate and the circular jet injection of the disinfecting lotion is carried out. After placing the foot with the wellington on the grid in between the rotary brushes, the sole is cleaned by means of the horizontal brush and the leg portion is cleaned by means of two vertical brushes. The system is automatically switched off when the user releases the handrail. There is a CENTRAL/STOP button on the handrail for emergency switch-off.
The washing system is intended for free standing installation on the floor. Imperfections of the floor are balanced out by four adjustable hobs. The construction of the system allows the outlet to be placed above the floor level.
The RMO 02 washing system, with its easy maintenance, is mainly intended for operations where quick removal of mechanical dirt from wellingtons is required.
The canister with disinfecting solution is not part of the delivery.
Package contents
- body of the washing machine
- removable grid
- electronics with photocell
- three rotary brushes
- jerican holder
- priming hose
- adjustable supporting legs
- central stop button
| Radius of sensor | 0,7 m |
| Water inlet | G 1/2“ |
| Water pressure | 0,1 – 1,0 MPa |
| Outlet | G 6/4” |
| Electricity protection | IP 55 |
| Power supply | 230 V, 50 Hz |
| Power requirement | 370 W |
| Water temperature | max. 42°C |
| Weight | 95 kg |
- Set up water inlet as per picture
- Set up outlet G 6/4” via effluvial cover
- Set up cable for power supply – 230 V, 50 Hz
REDO wall-mounted washbasin
Ref. 121710
Wall-mounted washbasin.
Basin internal diameter: 320mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
With central tap hole Ø 35mm.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.
TECHNICAL FEATURES
REDO wall-mounted washbasin
Ref. 121710
| Height | 150mm |
|---|---|
| Length | 375mm |
| Width | 430mm |
| Thickness | 1.2mm |
| Finish | 304 polished satin stainless steel |
SLP 19RS
Urinal Golem with a radar flushing unit, 24 V DC
Characteristics
- economy flushing by 1 liter of water
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 to 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
| Order number | 11195 |
| Code | SLP 19RS |
SLP 19RS
Urinal Golem with a radar flushing unit, 24 V DC
Characteristics
- economy flushing by 1 liter of water
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 to 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
| Order number | 11195 |
| Code | SLP 19RS |
Supply specification
Technical information
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
Supply specification
Technical information
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
632,00 €
SLP 32RZ
Urinal Arq with cover with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
- easy installation
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
| Order number | 01325 |
| Code | SLP 32RZ |
Supply specification
Technical information
Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber sealing
971,00 €
SLP 82RZ
Urinal WCA with radar flushing unit, 230 V AC
Characteristics
- economy flushing by 1 liter of water
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
| Code | SLP 82RZ |
| Order number | 01822 |
Supply specification
Technical information
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting
941,00 €
