The d line sanitary range by Knud Holscher combines cleanness in its lines with cleanliness in its function, and unlike our hardware collection of individual yet complimentary items, this series consists of fittings that form a cohesive whole.

Wherever they appear, our sanitary products can be flexibly combined yet always provide the same uniform impression. In their technical design, installation and maintenance are key focuses, to meet the need for impeccable hygiene no matter how long they live in a space.

Simple and modular, the d line sanitary range’s AISI 316 rust-resistant, non-corrosive, marine quality steel stands up to the high humidity levels of the bathroom, while its subtle curved edges and functional circular hole details are a nod to the bend in our first ever products, the L and U lever handles by Knud Holscher.

Both internally and externally, every detail of every d line sanitary piece is rigorously tested for seamless functioning so that it endures. Then, assisted by the most cutting-edge machinery in our field, each is expertly crafted by hand.

86 x 298 x 121 mm

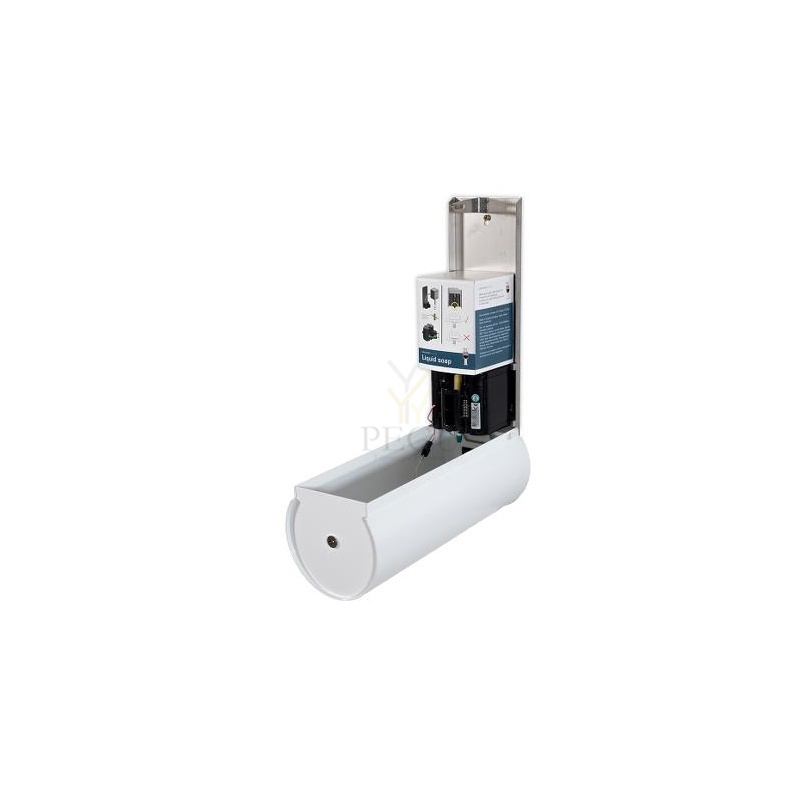

• Sensor liquid soap dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• With EWAR® eModule touch-free operated and non-drip soap pump.

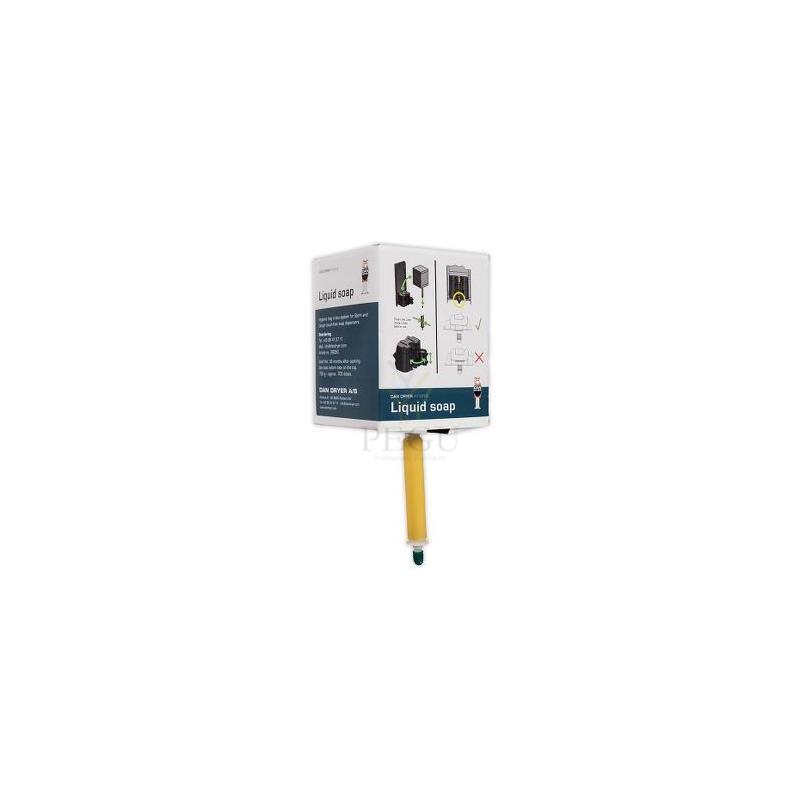

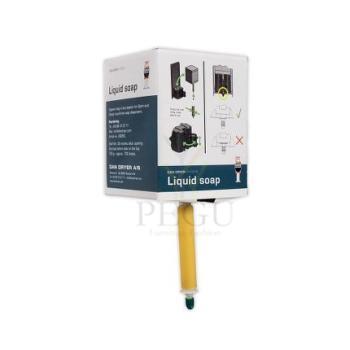

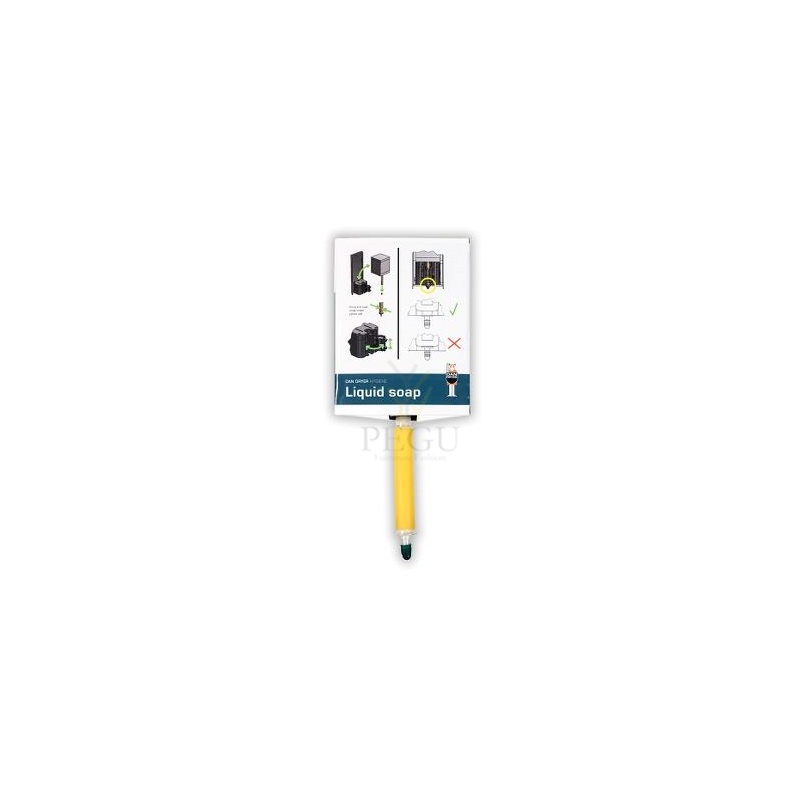

• Designed for standard 950 ml disposable bottles of liquid soap or hand lotion.
• Inspection slot to indicate fill level.
• Accessible for refilling through lockable, hinged housing.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries.
  Power supply available as an option.
• Wear parts can be replaced as modules.
• Mounting: With three screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material, batteries and first fill with soap.

• Weight (in kg): 2,8

148 x 448 x 120 mm
950 ml tank

• Sensor disinfectant dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed. Further available surfaces: see below.
• With EWAR® eModule touch-free operated disinfectant pump with 950 ml tank.
• Tank with large, lockable refill opning.
• Designed for standard disinfectants.
• Inspection slot to indicate fill level.
• Accessible for refilling through lockable, removable front panel with fall protection.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries.
  Power supply available as an option.
• Wear parts and front panel can be replaced as modules.
• Installation dimensions: 150 x 450 x 110 mm
• Mounting: With four screws in wall opening through fixing holes in the side walls.
• Delivery includes fixing material and batteries.

• Weight (in kg): 3,4

298 x 1348 x 120 mm
ca. 250 paper towels / 400 ml foam soap concentrate / 11 l

• Combination consisting of a foam soap dispenser, a paper towel dispenser and a waste bin in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Foam soap dispenser with one-hand operated and non-drip foam soap pump.
• Designed for standard 400 ml foam soap concentrate.
• Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 250 standard paper towels in zigzag fold.
  Paper size (folded): 240-250 mm x 100-115 mm.
• Inspection slots to indicate fill level.
• Accessible for refilling through lockable front flap with fall protection.
• Waste bin equipped with removable mesh basket. Capacity approx. 11 l. Accessible through lockable door with self-closing, flame-retardant disposal flap.
• Keyed alike cylinder locks in corrosion-resistant zinc die-casting.
• Wear parts and front panels can be replaced as modules.
• Installation dimensions: 300 x 1350 x 110 mm
• Mounting: With eight screws in wall opening through fixing holes in the side walls.
• Delivery includes fixing material, first fill with soap and one pack of paper towels.

• Weight (in kg): 14,9
