Köögisegisti Delabie 5603 100l/min d22mm
Kaubamärk:
Ühik: tk
Tarneaeg: 7-14 päeva
Lisainfo: info@pegu.ee
SUVI261 sisesta sooduskood ostukorvi lehel kupongi lahtrisse!

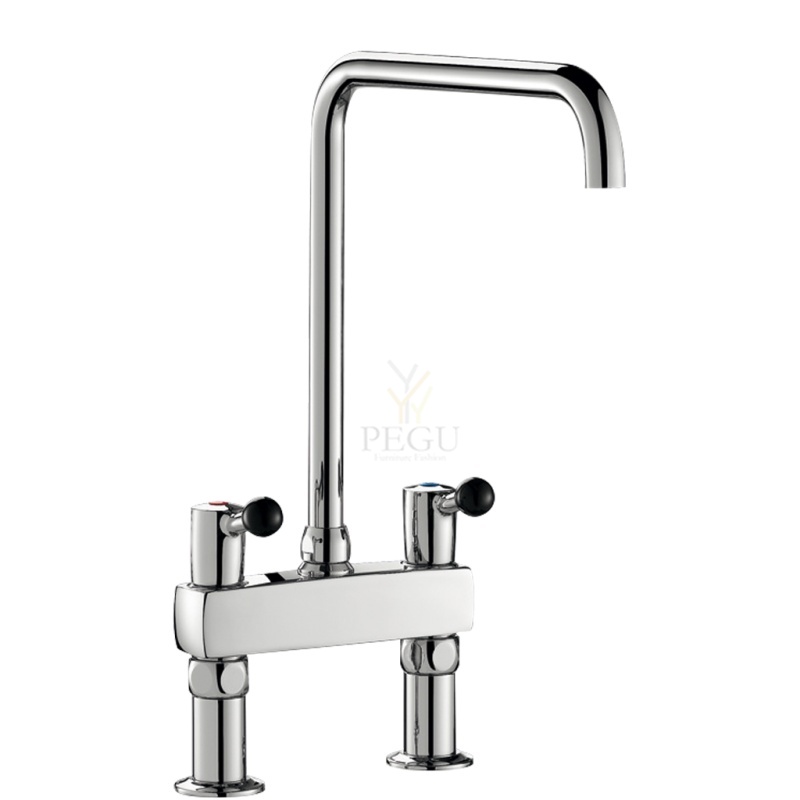

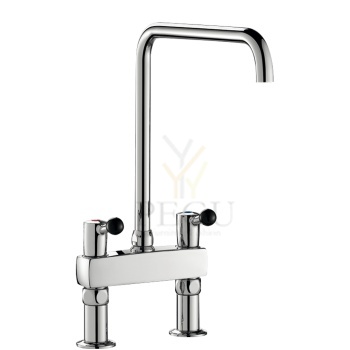

Twin hole pillar-mounted mixer - 100 lpm
Ref. 5603

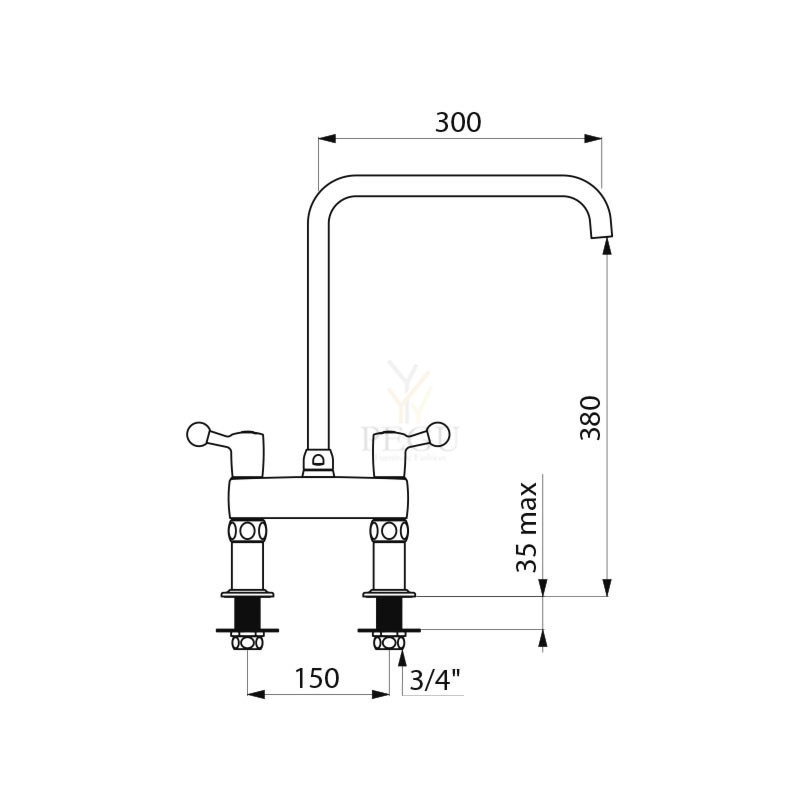

Twin hole mixer, M3/4" with 150mm centres on pillar mounts for plunge sinks.
Swivelling, tubular spout Ø 22mm H. 380mm L. 300mm.
Star-shaped, brass flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant ergonomic ball levers.
Flow rate 100 lpm at 3 bar suitable for plunge sinks.
Full flow rate within the first 90°.
Spout with smooth interior.
One-piece body and spout in chrome-plated brass.
Reinforced fixings and recessed inlets.
Failid
Pre-rinse set with mixer
Ref. G6632
Complete pre-rinse set with bib tap.
Single hole deck mounted mixer with:
- Valve head with control knob.
- F3/8" flexible connectors and non-return valves.
- Reinforced fixing via 2 threaded rods and back-nuts.
Bib tap with telescopic, swivelling spout L. 200 - 290mm.
- 20 lpm flow rate at the outlet.
- Valve head with control knob.
White, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
TECHNICAL FEATURES
Pre-rinse set with mixer
Ref. G6632
| Connector | F3/8" |
|---|---|
| Height | 1105 - 1225mm |
| Drop height | 90 - 330mm |
| Flow rate | 20 lpm |
| Width to the wall | 35 - 162mm |
| Finish | Chrome-plated brass |
Ref: 70812 - Column – deck-mounted mixer – rinsing head
> THE PRODUCT BENEFITS
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks. Locking hook to avoid MSDs (musculoskeletal disorders)
Reinforced body / column interface
Intuitive and ergonomic knobs: easy grip
Product design
Adjustable wall support
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver
Ease of maintenance: availability of all spare parts
> TECHNICAL SPECIFICATIONS > Model:
1/4 turn ceramic head mixer
Black M 1/2 '' hand shower with grip surface limiting the risk of burns. Regulated flow 12L / min. User adjustable jet: concentrated or wetting. Anti-scale shower head. Locking hook for continuous flow. Integrated non-return valve.
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall)
Adjustable hand shower holder: left or right
> Recommended working pressure:
1 to 5 bars
> Flow rate:
12L / min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Body and column in chromed brass Injected metal hook
Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with:
1 fixing bracket
1 filter
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Ref: 70824 - Column – deck-mounted mixer – rinsing head
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks Fast filling of tanks: 30L / min at 3 bar
Reinforced body / column interface
Intuitive and ergonomic knobs: easy grip
Product design
Adjustable wall support
Locking hook to avoid MSD (musculoskeletal disorder)
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Easy maintenance: presence of a slot under the red / blue pad allowing the passage of a screwdriver
Ease of maintenance: availability of all spare parts
> TECHNICAL SPECIFICATIONS > Model:
Single-turn mixer with ceramic head 1/4 turn with flow rate of 30L /min at 3 bar
1/4 turn ceramic head tap with filling spout Lg 300 mm - adjustable
Black M 1/2'' hand shower with grip surface limiting the risk of burns
Shower flow: 12L / Min (regulated) - User adjustable jet: concentrated or wetting - Anti-scale shower nozzle - Locking hook for continuous flow - integrated NF non- return valve
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall) Adjustable shower holder on the left or right
Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
30 L /min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Chromed brass body and spout Injected metal hook
Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock)
> Delivered with :
1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF
1 filter
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Service operating temperature at 70 ° C maximum continuously
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Ref: 70832 - Special ' Under Counter ' Bar- Deck-mounted mixer tap
> THE PRODUCT BENEFITS
Special "Bar" application:
the spout is hidden under the counter: more aesthetic
offset of the joystick on the side: easy access for washing
Resistant to intensive use
Reinforced body / spout interface with double sliding bearings: no play and high endurance Robust spout: Ø 22 mm - thickness 1.5mm
Ergonomic and robust control: easy grip
Hygiene: spout with smooth interior
Product design
Ease of cleaning
Ease of maintenance: availability of all spare parts
Flow straigntener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
360 ° swivel spout 250 mm projection. Height under spout 146 mm - diameter 22 mm Spout thickness: 1.5 mm
Ceramic cartridge with flow 25 L / min at 38°C at 3 bar
Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
25L / min at 38°C at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Chromed brass body and spout Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with:
1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF 2 filters
> Option:
Possibility of adding an extension sold separately, facilitating the passage of large containers
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
