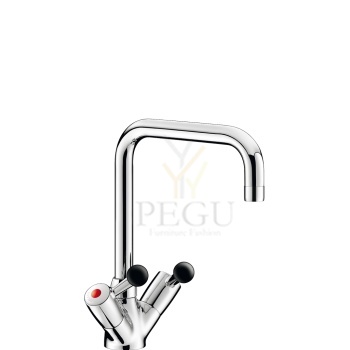

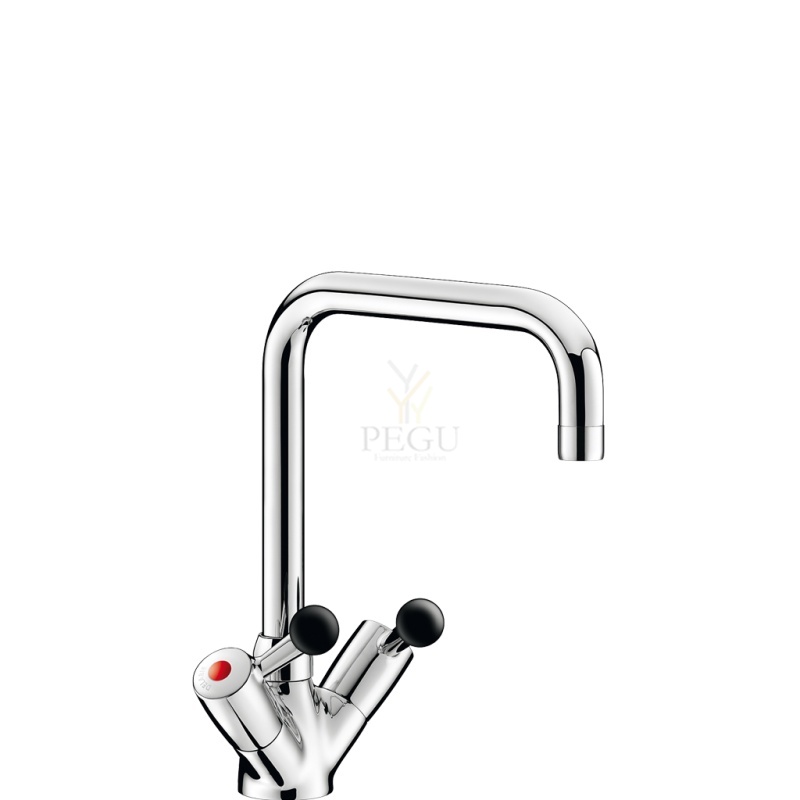

Köögisegisti Delabie 5640T2 45l/min L200 mm

Tootekood: DE-5640T2
Kaubamärk:
Ühik: tk
Tarneaeg: 7-14 päeva
Hind:
350,00 €
Kogus: - +
   - või -

Deck-mounted single hole mixer - 45 lpm
Ref. 5640T2

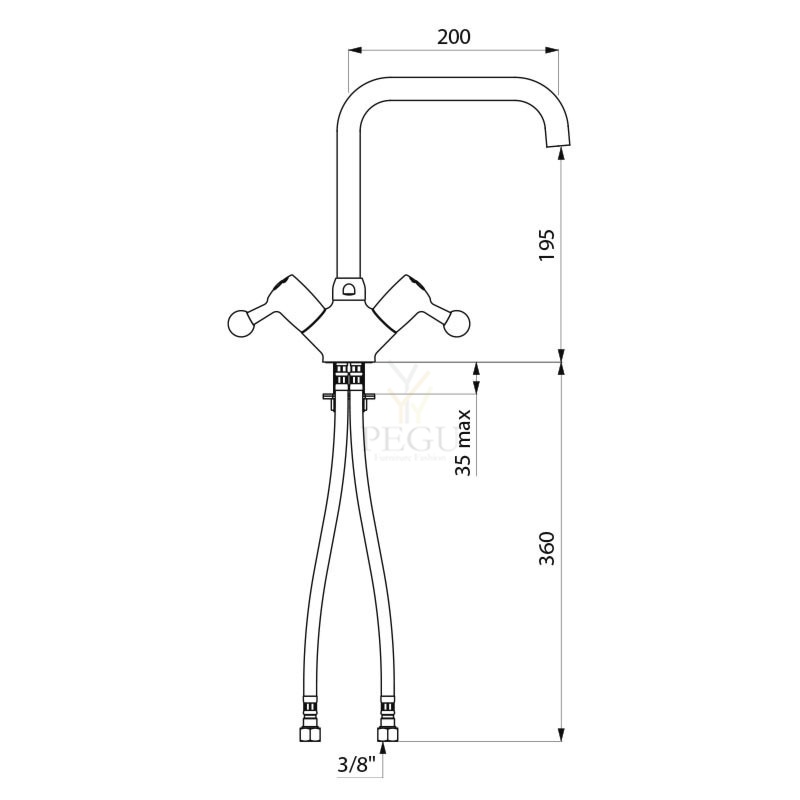

Deck-mounted single hole mixer with swivelling, tubular spout Ø 22mm H. 195mm L. 200mm.
Star-shaped flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 45 lpm at 3 bar.
Full flow rate achieved within first 90°.
Spout with smooth interior.
Chrome-plated brass body and spout.
Reinforced fixing via two stainless steel rods.
F3/8" PEX flexibles.

Failid

Sarnased tooted
Tootekood: P70553 ,   Tarneaeg: 7 päeva-14 päeva
909,15 € (5%)
957,00 €
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad
214,20 € (10%)
238,00 €

Pre-rinse set with mixer
Ref. G6633

Complete pre-rinse set without bib tap.
Single hole deck mounted mixer with:
- Valve head with control knob.
- F3/8" flexible connectors and non-return valves.
- Reinforced fixing via 2 threaded rods and back-nuts.
White, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.



TECHNICAL FEATURES

Pre-rinse set with mixer
Ref. G6633

Connector F3/8"
Height 1105 - 1225mm
Drop height 310 - 550mm
Flow rate 9 lpm
Width to the wall 35-162mm
Finish Chrome-plated brass
Tootekood: DE-G6633 ,   Tarneaeg: 14-21 päeva
713,00 €

Twin hole pre-rinse set with mixer
Ref. G6533

Complete pre-rinse set without bib tap.
Deck-mounted twin hole mixer with adjustable centres 100 - 240mm with:
- Valve heads with control knobs.
- Offset inlet connections with M1/2" tails.
White, scale-resistant M1/2" hand spray with adjustable spray and 9 lpm flow rate at the outlet.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.

TECHNICAL FEATURES

Twin hole pre-rinse set with mixer
Ref. G6533

Connector M1/2"
Height 1125 - 1245mm
Drop height 360 - 600mm
Flow rate 9 lpm
Width to the wall 35-162mm
Finish Chrome-plated brass
Tootekood: DE-G6533 ,   Tarneaeg: 14-21 päeva
753,00 €

Wall-mounted pre-rinse set with mixer
Ref. G6433

Complete pre-rinse set without bib tap.
Wall-mounted mixer, F3/4" with 150mm centres with:
- Valve heads with control knobs.
- Non-return valves integrated in the mixer.
White, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.



TECHNICAL FEATURES

Wall-mounted pre-rinse set with mixer
Ref. G6433

Connector F3/4"
Flow rate 9 lpm
Width to the wall 35-162mm
Finish Chrome-plated brass
Tootekood: DE-G6433 ,   Tarneaeg: 14-21 päeva
667,00 €
