Köögisegisti Delabie 5645T2 seinale 60L/min

Tootekood: DE-5645T2
Kaubamärk:
Ühik: tk
Tarneaeg: 7-14 päeva
Hind:
357,00 €
Kogus: - +
   - või -

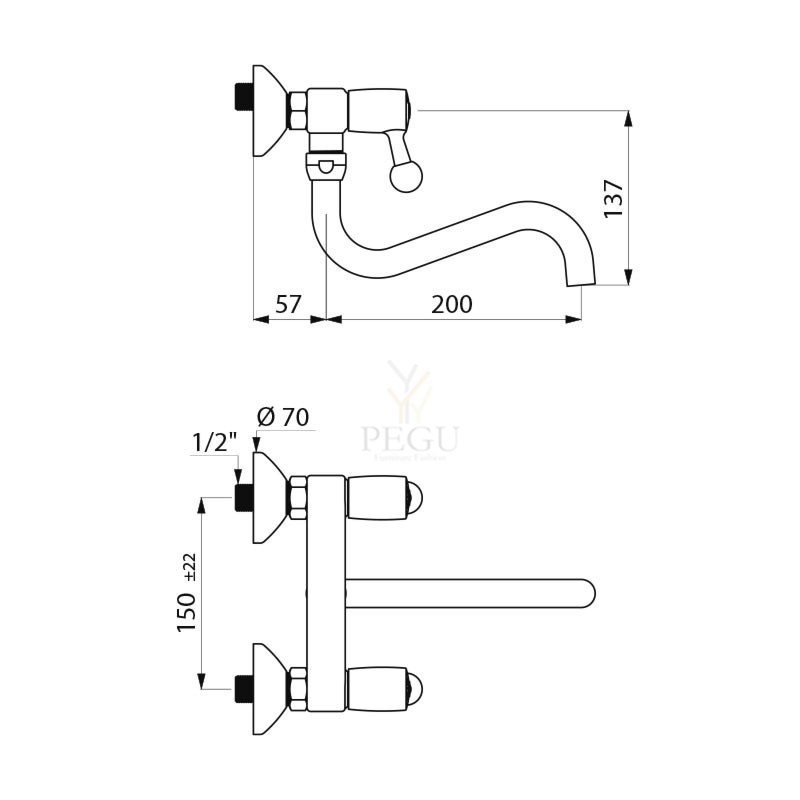

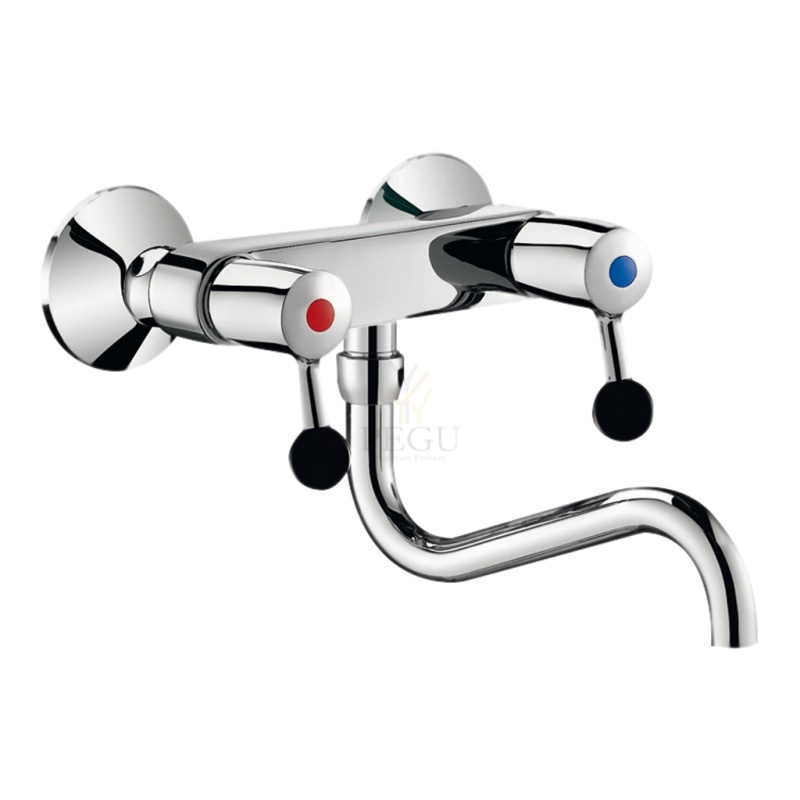

Wall-mounted twin hole mixer - 60 lpm
Ref. 5645T2

Wall-mounted twin hole mixer with swivelling, tubular under spout Ø 22mm L. 200mm with star-shaped brass flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 60 lpm at 3 bar achieved within 90°.
Full flow rate 90 lpm at 3 bar.
Spout with smooth interior.
One-piece body and spout made from chrome-plated brass.
M1/2" M3/4" offset connectors supplied with escutcheons.
Suitable for disposal sinks.

Failid

Sarnased tooted
Tootekood: P70556 ,   Tarneaeg: 7 päeva-14 päeva
617,00 €
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad
214,20 € (10%)
238,00 €

Twin hole pre-rinse set with mixer
Ref. 5633UK

Complete pre-rinse set with bib tap.
Deck-mounted twin hole mixer with 180mm centres with:
- Valve heads with reinforced mechanisms with ergonomic control levers.
- Offset inlet connections with M1/2" tails.
Bib tap with:
- Swivelling, tubular spout L. 200mm.
- 25 lpm full flow rate achieved within the first 90°.
- Valve head with reinforced mechanism with ergonomic control lever.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.



TECHNICAL FEATURES

Twin hole pre-rinse set with mixer
Ref. 5633UK

Connector M1/2"
Height 1110-1230mm
Drop height 345 - 585mm
Flow rate 25 lpm
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Tootekood: DE-5633UK ,   Tarneaeg: 14-21 päeva
1105,00 €

Pressure-balancing mixer set and column with retracting hand spray

Ref. 2599EP

SECURITHERM pressure-balancing sink mixer set with retracting hand spray on a column.
Ideal for babies' baths.
Anti-scalding safety: HW flow rate is reduced if CW supply fails.
Securitouch thermal insulation prevents burns.
Retracting hand spray with 2 jet options: flow straightener/rain effect.
Swivelling column H. 200mm L. 220mm.
Retracting hand spray with two jet options (flow straightener/rain effect)
Ø 35mm pressure-balancing ceramic cartridge with pre-set maximum temperature limiter.
Mixer body and column with smooth interiors.
Flow rate 12 lpm at 3 bar.
Sculptured control lever.
Mixed water outlet L. 160mm.
BIOSAFE flexible shower hose reduces bacterial proliferation: transparent polyurethane flexible hose, smooth interior and exterior, low water volume (interior Ø 6mm).
Counterweight specific to flexible hose.
F⅜" PEX flexibles with filters and non-return valves.
Reinforced fixing via 2 stainless steel rods.
Tootekood: DE-2599EP ,   Tarneaeg: 7-14 päeva
351,00 € (10%)
390,00 €

Ref: 70800 - Deck-mounted mixer – upward spout

> THE PRODUCT BENEFITS

Resistant to intensive use
Reinforced body / spout interface with double sliding bearings: no play and high endurance Robust spout: 22 mm in diameter
Ergonomic and robust control: easy grip
Robust mixing handle - possibility to install it laterally (installation flexibility)
Hygiene: spout with smooth interior
Product design
Ease of cleaning
High spout to let large containers pass
Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes

> TECHNICAL SPECIFICATIONS > Model:

Single-lever deck-mounted mixer with spout above
360 ° swivel spout, 250 mm projection, height under spout 276 mm, diameter 22 mm. Spout thickness: 1.5 mm. Ceramic cartridge
Interchangeable anti-tartar flow straightener

> Recommended working pressure:

1 to 5 bars

> Flow rate:

25L / min at 38°C at 3 bar

> Hydraulic supply:

G 1/2 '' (15x 21)

> Material and color of finish:

Chromed brass body and spout Material compliant with the "UBA" list

> Thermal resistance :

Withstands a temperature of 75 ° C for 30 minutes (as part of thermal shock).

> Delivered with :

1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF 2 filters

> Option:

Possibility of adding an extension sold separately, facilitating the passage of large containers

> Standards and approvals:

Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227

Tootekood: P70800 ,   Tarneaeg: 14-21 päeva
344,40 €
